Product Details:
|
| Typical Application: | Slight Corrosive Liquid | Product Model: | NYRD805 |
|---|---|---|---|
| Antenna Form: | Bar Type | Antenna Material: | PTFE(optional) |
| Measuring Range: | 10m, 20m(optional) | Process Connection: | Thread (optional) |
| Signal Output: | 4~20mA | Power Supply: | 24VDC |
| High Light: | Slight Corrosive Liquid Radar Level Transmitter,PTFE Liquid Radar Level Instrument,26ghz High Frequency Radar Level Meter |
||

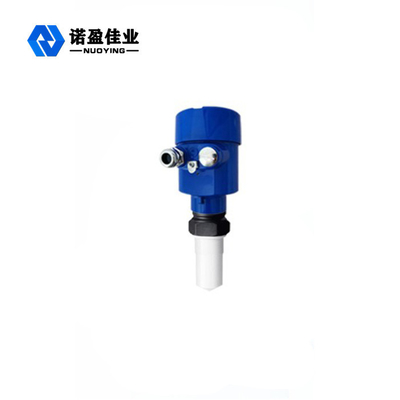

Slight Corrosive Liquid 26ghz High Frequency Radar Level Meter
26ghz High Frequency Radar Level Meter Working Principle
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal.
26ghz High Frequency Radar Level Meter Design Feature
◎Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
◎High frequency, is the best choice for measuring solid and low dielectric constant media.
◎Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
◎Serious dust environment has little effect on the work of high frequency level meter.
◎Shorter wavelengths, better reflection of sloping solid surfaces.
