Product Details:
|
| Measuring Range: | 0.5~2.5g/cc(500-2500kg/m³) | Calibration Range: | 0.5~2.5g/cc(500-2500kg/m³) |
|---|---|---|---|
| Power Supply: | 24VDC≥50mA | Maximum Working Pressure: | 207bar(3000psi) |
| Wet Material: | 316L | Fork Body Coating: | PTFE |
| Process Connection: | DN 50 PN40 | Built-in Temperature Sensor: | Digital Sensor |
| High Light: | Pipeline Tank Tuning Fork Density Meter,Intelligent Tuning Fork Tank Density Meter,PTFE Tuning Fork Density Meter |
||

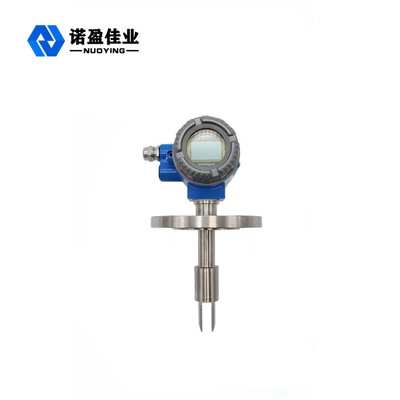

Intelligent Tuning Fork Density Meter High Temperature Pipeline Tank
Tuning Fork Density Meter Design Feature
◎Continuous online measurement of liquid density and temperature, high precision, more safe and reliable, can be directly used for production process control.
◎While measuring density and temperature, parameters such as basic density, concentration percentage, mass percentage, and volume percentage can be calculated.
◎Easy to install and use, the reading can be displayed when the liquid is inserted.
◎Simplifies maintenance and eliminates the need for regular cleaning.
Tuning Fork Density Meter Working Principle
In the process of density detection, the NYDE-CR plug-in density meter can automatically compensate the influence of temperature on the density (D) of the measured medium, and the pressure has no significant influence on the density.
Tuning Fork Density Meter Discription
It is widely used in petroleum, chemical,food, pharmaceutical and mineral processing (such as clay, carbonate, silicate, etc.), and is specifically used for interface detection in multi-product pipelines in the above industries, density detection of stirred mixtures, End-point monitoring of the reaction kettle, interface detection of the separator.
