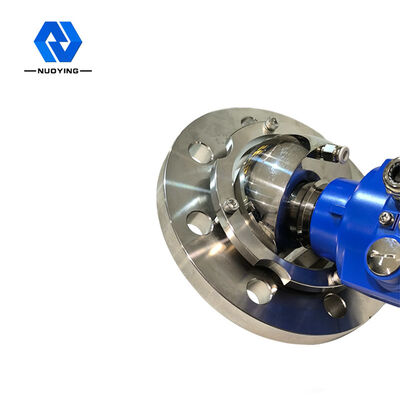

Highly Corrosive Liquid 26 G Intelligent Radar Level Transmitter NYRD 86
The working Principle of Highly Corrosive Liquid 26 G Intelligent Radar Level Transmitter NYRD 86
Radar Level Meter (NYRD80X)series sensors are 26GHz with smart and anti-cement powder,fly ash, crystallization fuctions radar level measuring instruments, measuring the maximum distance up to 80 meters. The antenna is further optimized, and new fast microprocessors can perform higher rate signal analysis and processing, enabling the meter to be used in complex measurement conditions such as reaction tanks and solid bin.
according to the ultrasonic time difference from the send to be receiving and known to determine the level of sound, Microwave signs are processed by electronic equipments and finally converted into electrical signals related to the object height.
Datum of measurement: sealing surface of thread bottom or flange.
Note: When using radar level timing, make sure that the highest material level cannot enter the measurement blind area (the area shown in D in the figure).
Designing features of Highly Corrosive Liquid 26 G Intelligent Radar Level Transmitter NYRD 86
◎ Measuring blind area is narrower, for smallworking site measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain best working performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant references. High frequency, is the best choice for measuring solid and low dielectric constant media.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low isolator constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.
◎ Shorter wavelength, more premium reflection on inclined solid surfaces.
Technical parameters of Highly Corrosive Liquid 26 G Intelligent Radar Level Transmitter NYRD 86
| Typical application | Various liquids especially strong corrosion |
|
product model |
NYRD86 |
|
Antenna form
|
Stick, water drop, flat, trumpet,thrown surface, lens
|
| Antenna material | PTFE,304,316,PP,PFA |
| measuring range | 10m,20m,30m,35m,40m,80m |
| accuracy of measurement | 0.05%~0.1%F.S |
| Power Supply Voltage | 24VDC(two wire,four wire),220VAC |
|
signal output |
4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+150℃,-40~+260℃,-40~+1200℃ |
| Process pressure |
-0.1~0.3MPa,-0.1~2.0MPa,-0.1~4.0MPa, |
| procedure linkage | screw thread,bracket,flange,clamps(optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP65,IP67,IP68(optional) |
| explosion-proof classification | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
