Product Details:
|
Product Model: | NYRD701 | Antenna Material: | 304 |
---|---|---|---|
Echo Sampling: | 55 Times /s | Measuring Range: | 6m |
Power Supply: | 24VDC | Process Temperature: | -40~+130℃ |
Process Pressure: | -0.1~2.0MPa | ||
High Light: | 1.8g Guided Wave Radar Level Meter,Guided Wave Radar Type Level Transmitter,Contact Radar Level Meter 6m |

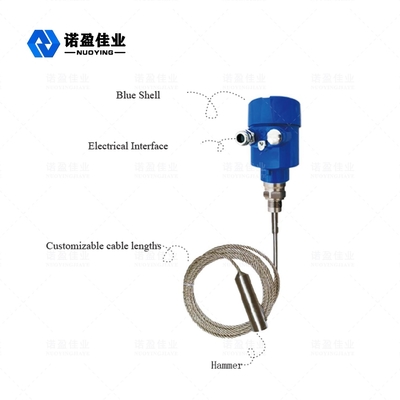

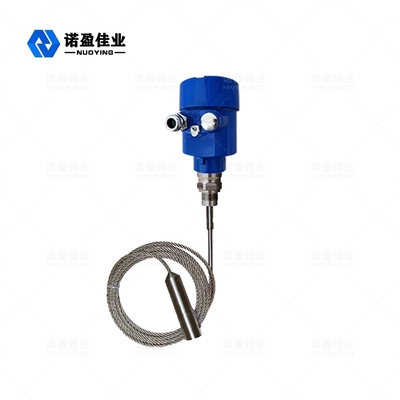

High Measurement Accuracy Contact 1.8g Guided Wave Radar Level Meter
Guided Wave Radar Level Meter Working Principle
Guided wave radar is a measuring instrument based on the principle of time travel. The radar wave runs at the speed of light, and the running time can be converted into object level signal by electronic components. The probe emits high frequency pulse and propagates along the cable or rod probe. When the pulse meets the material surface, it is reflected back and received by the receiver in the instrument, and the distance signal is converted into object level signal.
Guided Wave Radar Level Meter Technical Parameter
Typical application | Liquid (strong corrosion, low dielectric constant, adhesion, high temperature and high pressure, Built-in heating Coil, ladder, floating plate and other complex occasions) |
Dust (fly ash, limestone powder, cement powder, concrete and other media) | |
Solid (small particles, grain, gravel, sand and other media) | |
Product model | NYRD701 |
Antenna form | Cable type, rod type, double cable type, double rod type, wave guide tube type |
Antenna material | PTFE, 304, 316 |
Echo sampling | 55 times /s |
Measuring range | 6m, 30 m |
Measurement accuracy | 0.05% ~ 0.1% F.S |
