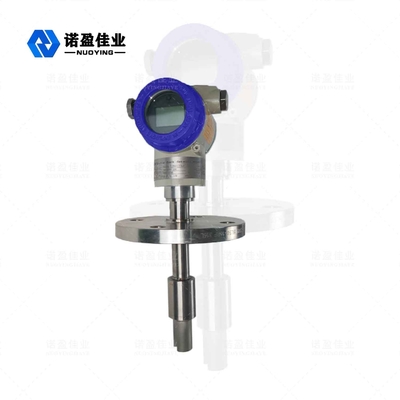

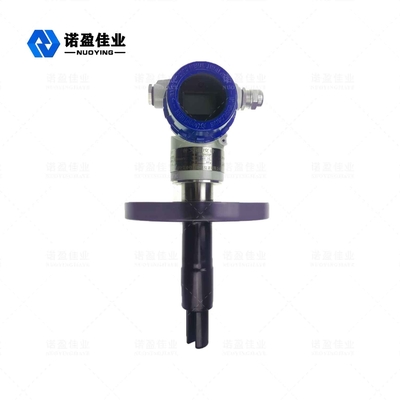

Cast Aluminum Tuning Fork Density Meter Over Voltage Protection Structure

Cast Aluminum Tuning Fork Density Meter Over Voltage Protection Structure
Cast Aluminum Tuning Fork Density Meter Over Voltage Protection Structure Cast Aluminum Tuning Fork Density Meter Over Voltage Protection Structure Cast Aluminum Tuning Fork Density Meter Over Voltage Protection Structure

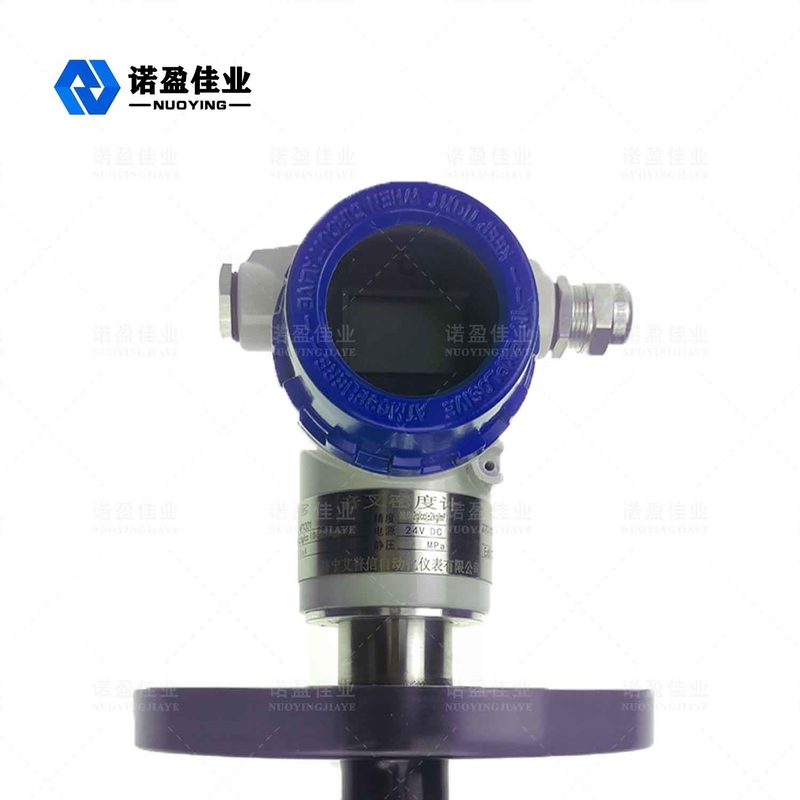

Large Image :  Cast Aluminum Tuning Fork Density Meter Over Voltage Protection Structure

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYDE-CR
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $200~$300/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

Cast Aluminum Tuning Fork Density Meter Over Voltage Protection Structure

Description
Typical Application: Tank And Pipeline Product Models: NYDE-CR
Shell Material: Cast Aluminum Measuring Range: 0.5~2.5g/cc
Signal Output: 4...20mA Operating Temperature: -50℃~200℃
Maximum Working Pressure: 207bar(3000psi) Wetted Material: 316L
High Light:

Over Voltage Protection Fork Density Meter

,

Cast Aluminum Tuning Fork Density Meter

,

Tuning Fork Density Meter 4mA

Tuning Fork Density Meter Excellent Over Voltage Protection Structure



Working Principle of Tuning Fork Density Meter



The sensor works based on the vibration principle of the component part, which is the tuning fork part immersed in the liquid under test. The tuning fork part vibrates through an internal piezoelectric device fixed to the bottom end of the fork body. The oscillation frequency is measured by a secondary piezoelectric device fixed at the other end of the fork, and the signal is amplified by a circuit at the top. The liquid density is closely related to the vibration frequency of the liquid under measurement. When the density of the liquid under measurement changes, the vibration frequency of the liquid under measurement also changes. Through the equation, the density of the liquid under test can be accurately calculated


Design feature of Tuning Fork Density Meter



◎Suitable for measuring the density of tanks, pipes, and flowing or stationary media. Suitable for measuring high temperature, low temperature, high viscosity medium containing impurities.

◎ A microprocessor-based electronic conversion device that integrates signal processing, computation and diagnostic functions.

◎ Continuous on-line measurement of liquid density and temperature, high precision, more safe and reliable, can be directly used for production process control.

◎ It can directly communicate with PC through RS485 interface, and users can directly perform online contact configuration, fault diagnosis and data recording.

◎  While measuring density and temperature, you can calculate the basic density, concentration percentage, mass percentage, volume percentage and other parameters.

◎excellent overpressure protection structure, superior temperature stability, all welded sealing, solid and reliable design.

◎it is easy to install and use, and the data can be displayed by inserting liquid.

◎Simplify maintenance without regular cleaning

◎Calibration no need standard reference source, laboratory calibration,without process interruption

◎Intrinsically safe type can be used in hazardous sites, and sanitary type can be installed in food production sites



Technical parameters of Tuning Fork Density Meter



Typical application Density measurement of tank and pipeline

product model

NYDE-CR
Shell Material Cast aluminum
measuring range 0.5~2.5g/cc(500-2500kg/m3 )
Calibration range 0.5~2.5g/cc(500-2500kg/m3 )
Signal Output 4...20mA,0~1000Hz,RS485 Modbus RTU
Operating Temperature

-50℃~+200℃

Maximum working pressure

207bar(3000psi)

Wetted material 316L,Stainless Steel,Hastelloy
Fork body coating Standard, PTFE, electrolytic polishing
Power Supply 24VDC≥50mA

Process Connection



ANSI 150~1500RF
DN50PN16,DN50PN40
IDF and RJT Hygienic
Built in temperature sensor Digital sensor
levels of protection IP65,IP67,IP68(selectable)
Explosion-proof grade Exia II CT6,Ex mb II CT6(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
