Product Details:
|
| Application: | Liquids,dust,solids | Item No.: | NYRD808 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
| Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
| High Light: | Radar Cement Level Sensor,Grain Bin Radar Level Meter,40m Radar Hart Level Transmitter |
||

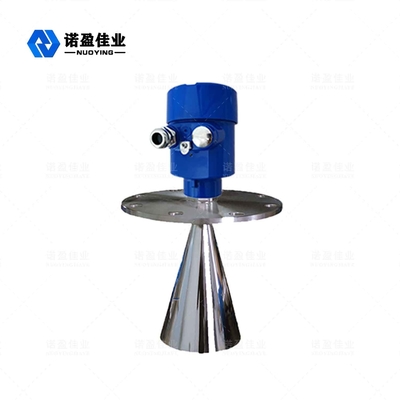

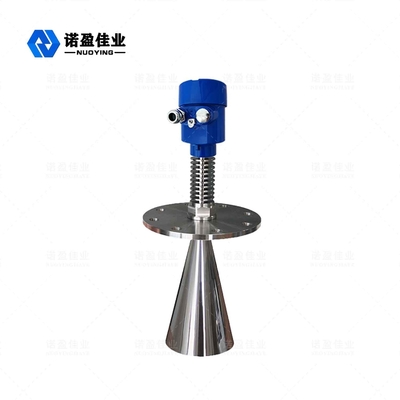

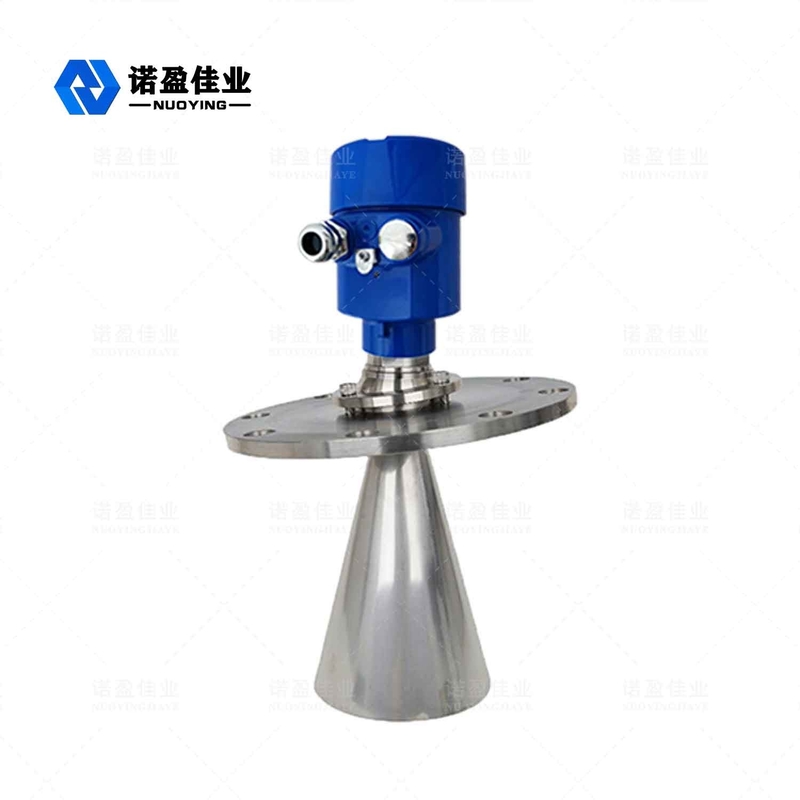

Cement level sensor radar grain bin radar level meter hart radar level transmitter
Description of cement level sensor radar grain bin radar level meter hart radar level transmitter
Very short microwave pulses with very low emission energy are transmitted and received through antenna systems.Radar waves travel at the speed of light.The running time can be converted into a level signal by the back of the electronic component.A special time extension method ensures stable and accurate measurements in a very short time.
Even in the presence of spurious reflection, the latest microprocessing technology and our unique pulse-software can accurately analyze the object position echo.
By inputting the container size, the overhead distance value can be converted into a signal proportional to the object position.The meter can be adjusted with empty storage
Environmental conditions:
Suitable for the environment with great temperature and pressure change, inert gas, smoke, steam and volatilization, explosion proof and corrosive.
Environmental and energy impacts:
The antenna of the radar object level meter emits extremely narrow microwave signals, which can work normally in the range of industrial frequency band.Extremely low emission power, no harm to human body and environment.
Safety in dangerous places:
radar level meter in accordance with the safety type Ex ia Ⅱ T6 explosive-proof grade C design.The shell is made of aluminum and is connected to the earth.Strictly abide by the state regulations on installation of explosion-proof hazardous areas.
Working conditions:
The temperature can be extended to (-40-400) degrees through different components, such as: air cooling device, water cooling device, scavenging device. The pressure can be extended to 4000KPa with different pressure sealing components
Specification of cement level sensor radar grain bin radar level meter hart radar level transmitter
| Range | 20m | Medium temperature | -40~ 150℃ |
| Process connection | flange | Process pressure | Nomal pressure |
| Accuracy | ±3mm | Frequency | 26GHz |
| Explosive-proof grade | ExibIICT6Gb
|
Ingress protection | IP67 |
| Signal output | 4-20mA/HART(2 WIRES/4 WIRES) | ||
| Application | Sanitary liquid storage container, highly corrosive container | ||
Dimension of cement level sensor radar grain bin radar level meter hart radar level transmitter
Application of cement level sensor radar grain bin radar level meter hart radar level transmitter
Petroleum
Petrochemical, oil production plants, chemical plants, coking plants and other measuring media: crude oil, light oil, natural gas, methanol, ethanol, ammonia, benzene, polyphenylene, ester, water vapor, liquid carbon dioxide, paint, turpentine, pulp
Power industry
Measuring medium for power plant: raw coal bin, pulverized coal bin, fly ash bin, chemical water
Iron and steel industry
Measuring medium for steel mills: limestone, coking coal, cold return ore, raw material bin, powder bin, coal ash bin, chemical water
Cement factory
Clinker storehouse, powder storehouse, raw coal storehouse
Feature of cement level sensor radar grain bin radar level meter hart radar level transmitter
Independent of temperature and pressure
Microwave operation is almost unaffected by ambient temperature and pressure, so radar sensors are very suitable for complex process conditions.Process pressure from vacuum to 40bar, process temperature -40~400°C, absolutely no problem with the measurement.
It is not affected by the characteristics of the measured medium
Changing the composition of the measured medium or changing the whole medium will not affect the measurement results.No redebugging is required
Compatible line applications for different scenarios
SLK-806 series of radar sensors can be used for any application.We can provide different antennas, thus generating different emission angles, measuring ranges and measuring characteristics.Correct instrument selection depends on application conditions.
Easy service maintenance
SLK-806 is easy to service and maintain due to its non-contact measurement.
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Technical parameter
| Application | All kinds of liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.) |
| All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization and other occasions) | |
| Various solids (grain, small stones, iron ore, coal, etc.) | |
| Item number | NYRD805,NYRD806,NYRD807,NYRD808,NYRD809,NYRD810,NYRD86 |
| NYRD87,NYRD-PB,NYRD-SD,NYRD-TJ,NYRD- SL | |
| Antenna form | Bar type, water drop type, plate type, horn type, surface type, lens type |
| The antenna material | PTFE,304,316,PP,PFA |
| Measuring range | 10m,20m,30m,35m,40m,80m |
| Accuracy of measurement | 0.05%~0.1%F.S |
| Power supply | 24VDC(two wire,four wire),220VAC |
| Signal output | 4-20mA/HART/RS485/Modbus... |
| The process temperature | -40~+130℃,-40~+150℃,-40~+2600℃,-40~+1200℃ |
| Process pressure | -0.1~0.3Mpa,-0.1~2.0Mpa,-0.1~4.0Mpa, |
| Process connection | Thread, bracket, flange,Health clamp (optional) |
| Electrical interface | M20x1.5,1/2”NPT |
| Protection grade | IP65,IP67,IP68(optional) |
| Explosion-proof grade | ExiaIICT6 Ga,ExdIICT6 Gb(As shown in the certificate) |
If you have any other further questions, please contact us. We will process your requests as soon as possible.
