Product Details:
|
| Max Pressure: | 207bar(3000psi) | Contact Material: | 316L, Stainless Steel, Hastelloy |
|---|---|---|---|
| Power Supply: | 24VDC≥50mA | Product Model: | NYDE-CR-01 |
| Calibration Range: | 0.5~2.5g/cc(500-2500kg/m³) | Forked Body: | Standard, PTFE, Electropolished |
| Protection Class: | IP65, IP67, IP68 (optional) | Explosion-proof Grade: | ExdⅡCT6 ,ExmbⅡCT6 |
| High Light: | Display Tuning Fork Density Meter,316L Tuning Fork Density Meter,IP65 Digital Density Meter |
||

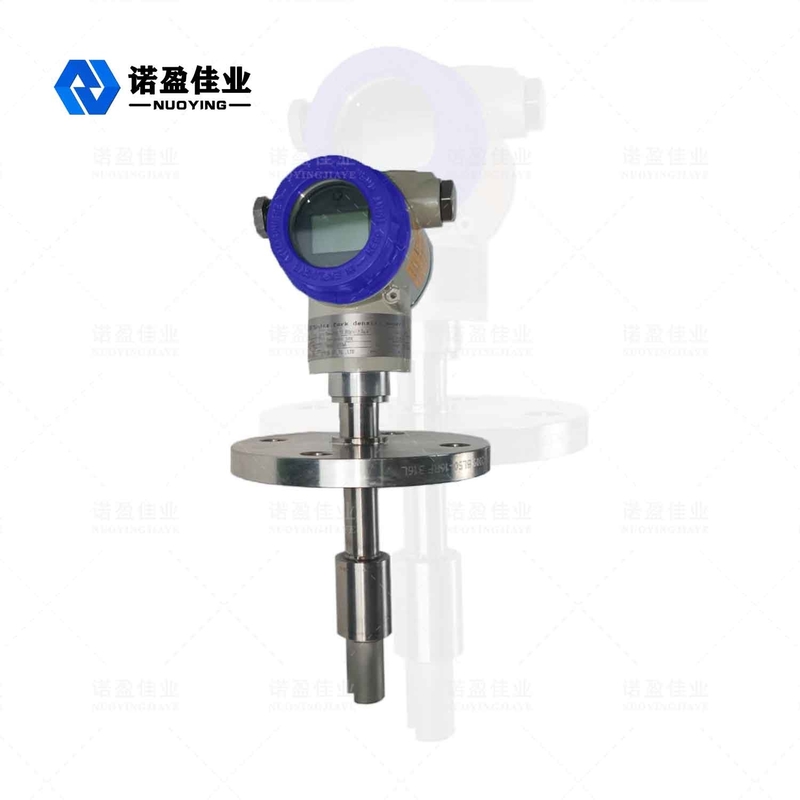

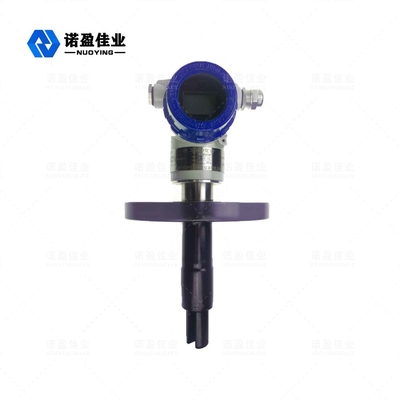

Display tuning fork density meter

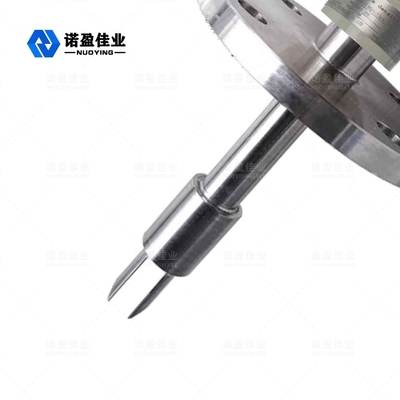

| Fork sensors ---------- one pair fork ceramic chip |
| A piezoelectric ceramic is responsible for collecting vibration |
| The fork is always vibrate in the resonant frequency of vibration |
| Fork in different densities ,the resonance frequencies was different,.according to the relationship between the different vibration and density to calculate the density |
| The resonance frequency of the tuning fork is between 1600-2400 |
| The higher the frequency the smaller density. |
Tuning fork density meter parameter:
1 Density range :0-3 g / CM3 (3 /2.5/ 2 /1.5/ 1)
2 Output:4-20 mA 4-wire ( 2-wire system can not be used)
3 Accuracy:0.001 g / cc, with a resolution of 0.0001 g / cc
4 Insertion depth :(flange distance to the end of the fork, minimum 125 mm, up to 2 meters)

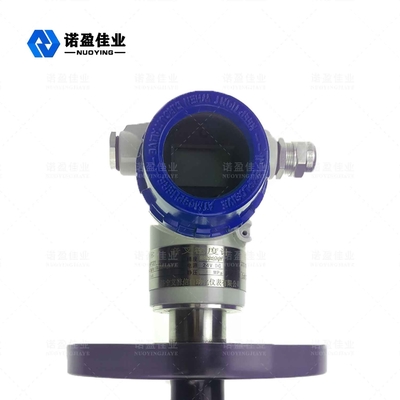

5 Display: Up density value, the density value can be switched to kg / cubic meter or g / cc by unit keys. Down display a temperature value (measured medium temperature ) temperature is original PT1000
6 Accessory: temperature of 4-20 mA output signal
7 The internal circuit board with automatic filtering function, other vibrations like pipe vibrations can eliminate away from the side of circuit and software,which ensure accuracy.
Tuning fork density meter strengths:
1.Application for high precision density measuring, mainly used in power plant.
2.Can not be affected by temperature, pressure and flow rate, there are few factor that can affecting measuring accuracy.
1. Adopt Germany piezoelectric ceramic chip, with gold plated process to increase the oxidation resistance of ceramic chips, also can longer service life of density meter.
2. Fork vibration original chip adopt Japanese made high performance original chips, Built-in 24 AD converter, frequency identifying accuracy to be 0.01HZ, to warranty 3.the sensitivity and precision of the meter.3.Fork density calibration adopts national density standard solution, to ensure the source and accurate of density.
4.The current circuit is independent of fork vibration circuit, there is isolating anti-interference inner, reducing the influence to instrument from disturb.
5. There is set density three point quick calibration, range adjust, current calibration etc function, to meet on-site working demands.
Used in the petrochemical industry, wine industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), specifically for interfacial detection in multi-product pipelines in the above industries, mixing density Detection, reactor end monitoring, analyzer interface detection.
1. What's your medium?
2. What's the medium temeprature?
3. What's mesurement range do you need?
♦ Remarks: Products can be customized according to your specific requirements!
