Product Details:
|
Application: | Liquids,dust,solids | Item No.: | NYRD808 |
---|---|---|---|

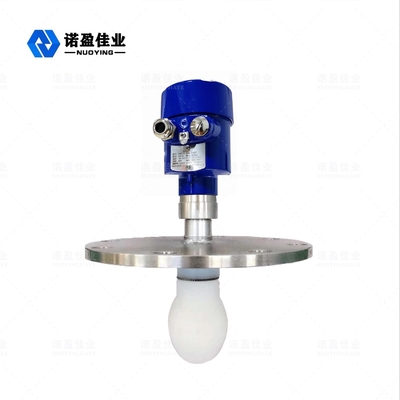

Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
Highlight: | 80G FM Radar Level Meter,High Frequency Radar Level Transmitter 40m,PTFE Radar Level Gauge |
Technical parameter
Application | All kinds of liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.) |
All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization and other occasions) | |
Various solids (grain, small stones, iron ore, coal, etc.) | |
Item number | NYRD805,NYRD806,NYRD807,NYRD808,NYRD809,NYRD810,NYRD86 |
NYRD87,NYRD-PB,NYRD-SD,NYRD-TJ,NYRD- SL | |

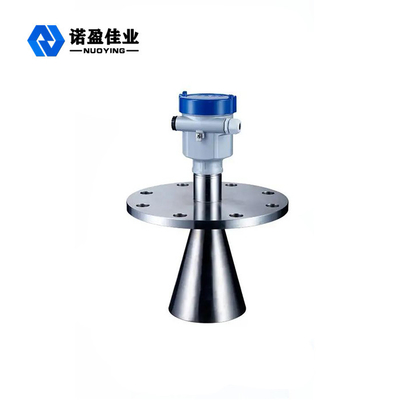

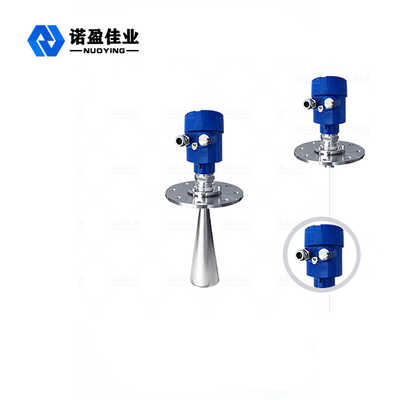

Antenna form | Bar type, water drop type, plate type, horn type, surface type, lens type |
The antenna material | PTFE,304,316,PP,PFA |
Measuring range | 10m,20m,30m,35m,40m,80m |
Accuracy of measurement | 0.05%~0.1%F.S |
Power supply | 24VDC(two wire,four wire),220VAC |
Signal output | 4-20mA/HART/RS485/Modbus... |
The process temperature | -40~+130℃,-40~+150℃,-40~+2600℃,-40~+1200℃ |
Process pressure | -0.1~0.3Mpa,-0.1~2.0Mpa,-0.1~4.0Mpa, |
Process connection | Thread, bracket, flange,Health clamp (optional) |
Electrical interface | M20x1.5,1/2”NPT |
Protection grade | IP65,IP67,IP68(optional) |
Explosion-proof grade | ExiaIICT6 Ga,ExdIICT6 Gb(As shown in the certificate) |
