Product Details:
|
| Typical Application: | Solid,liquid,dust | Product Model: | NYRD806 |
|---|---|---|---|
| Antenna Type: | Stainless Steel | Antenna Material: | 304,316 |
| Measuring Range: | 30m | Process Temperature: | -40°C~+250°C |
| Process Pressure: | -0.1~4.0Mpa | Measurement Accuracy: | 0.05%~0.1% F.S |
| High Light: | 26ghz Industrial Radar Level Meter,High Pressure Radar Level Sensor Transmitter,SS304 Radar Type Level Transmitter |
||

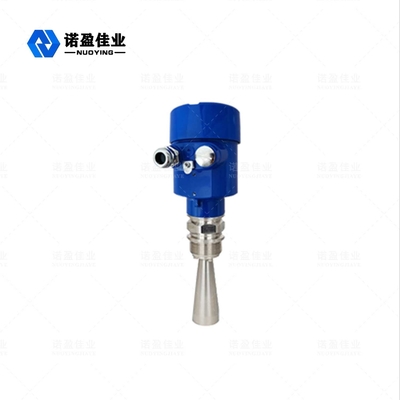

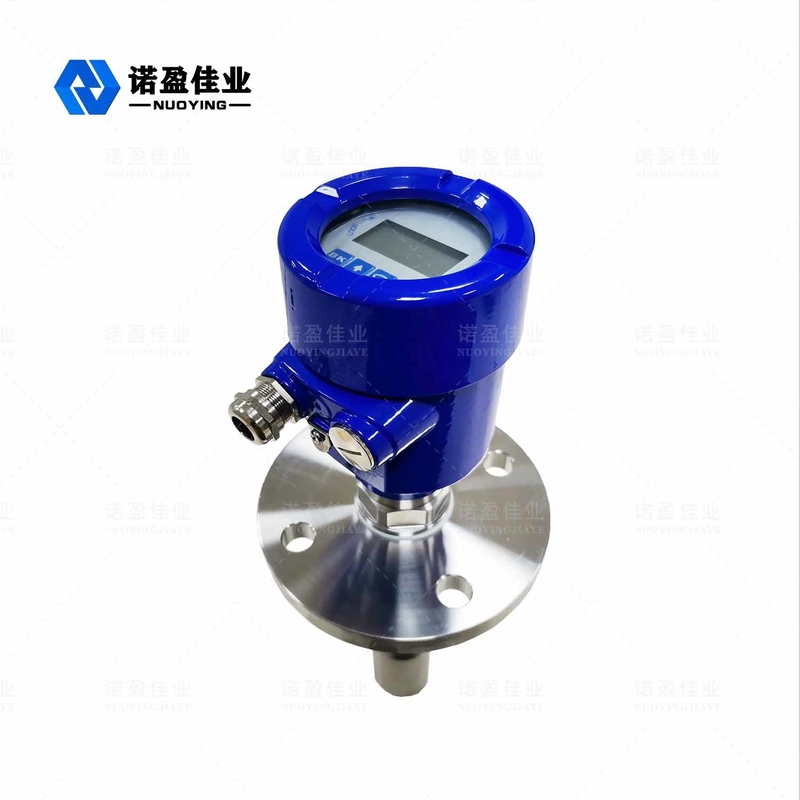

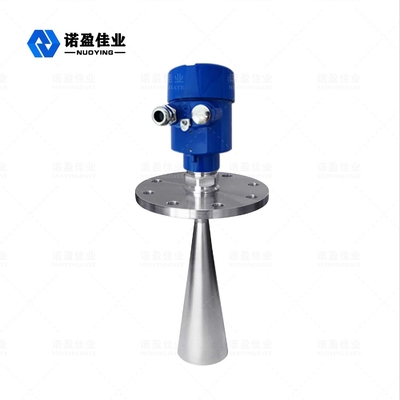

Compact Structure 26GHz Radar Level Meter Enduring High Pressure
Strong Penetration Wide Adaptbility In Industrial Applicatons 26ghz Radar Level Meter Operating Principle
Radar level meter NYRD80X serie sensors are 26GHz high-frequency radar type level measuring instruments, with a maximum measuring range of 80 meters. Its antenna transmits narrow microwave pulses, which are transmitted downward through the antenna. When the pulse wave reaches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the time taken for the electromagnetic wave to reach the target and return to the receiver after reflection is almost instantaneous).
26GHz Radar Level Meter Design Feature
◎ Small antenna size, easy to install; Non contact radar, no wear, no pollution.
◎ Shorter wavelength, better reflection for inclined solid surface.
◎ Small beam angle and concentrated energy, which enhances the echo signal and helps to avoid interference.
◎ Smaller measurement blind area leads to better performance in small tank measurement.
◎ High frequency, it is the best choice for measuring solid and low dielectric constant medium.
26GHz Radar Level Meter Product Parameter
| Typical Application |
Solid,Liquid,Dust |
| Product Model | NYRD806 |
| Antenna TypeR | Stainless Stell |
| Antenna Material | 304,316 |
| Measuring Range | 30m |
| Measuring Accuracy | 0.05%~0.1% F. S |
| Process Temperature | - 40~+250 ℃( |
| Process Presure | - 0.1~4.0MPa |
| Process Connection | thread, bracket, flange |
| Electrical Interface | M20 x 1.5, 1/2" NPT |
| Supply Power | 24VDC, 220VAC |
| Signal Output | 4-20 mA /HART/RS485/Modbus... |
| Protection Grade | IP67, IP68 (optional) |
| Explosion-proof Grade | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
