Product Details:
|
| Display Method: | Dual Menu LCD Display In English And Chinese | Measurement Range: | 0~100% |
|---|---|---|---|
| Measurement Accuracy: | 0.5%Vol | Signal Output: | 4...20mA/RS485 |
| Working Pressure: | ≤10MPa | Power Supply: | 24VDC 1.5W |
| Installation Method: | Stainless Steel 316, Sanitary Quick Connect | Explosion-proof Grade: | Exia II BT6、Exd II BT5(optional) |
| High Light: | 20mA Alcohol Concentration Meter,IP67 Alcohol Concentration Meter,Stainless Steel 316 Alcohol Level Meter |
||

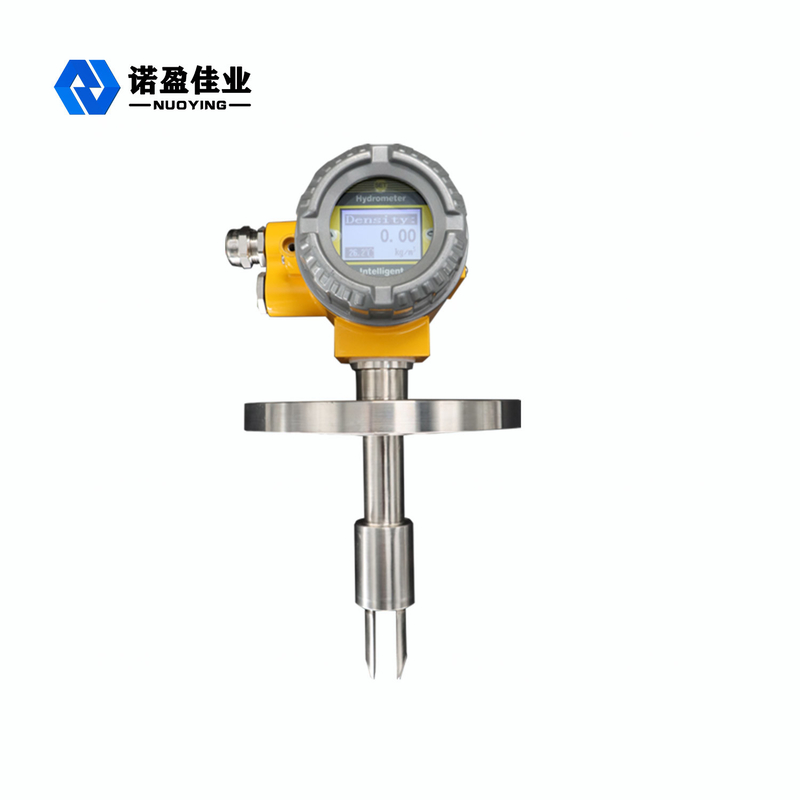

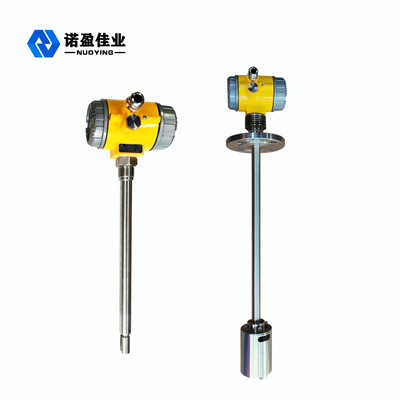

Discounted 20mA IP67 NYYC-M300 Online Alcohol Concentration Meter
NYYC-M300 Online Alcohol Concentration Meter Working Principle
The plug-in density meter can perform density detection online in real time. It can be used for process control of products with density as the basic parameter or quality control with reference to concentration percentage. It is used for interface detection in multi-industry and multi-product pipelines, density detection of stirred mixtures, end-point monitoring of reactors, and interface detection of separators.
NYYC-M300 Online Alcohol Concentration Meter Technical Parameters
| Display method | Dual menu LCD display in English and Chinese |
| Measurement Range | 0~100% |
| Measurement Accuracy | 0.5%Vol |
| Signal Output | 4...20mA/RS485 |
| Working pressure | ≤10MPa |
| Power supply | 24VDC 1.5W |
| Protection level | IP65 |
| Explosion-proof grade | Exia II BT6,Exd II BT5(optional) |
| Installation method | Stainless steel 316, sanitary quick connect |
