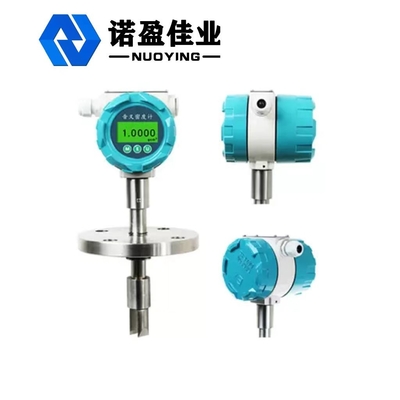

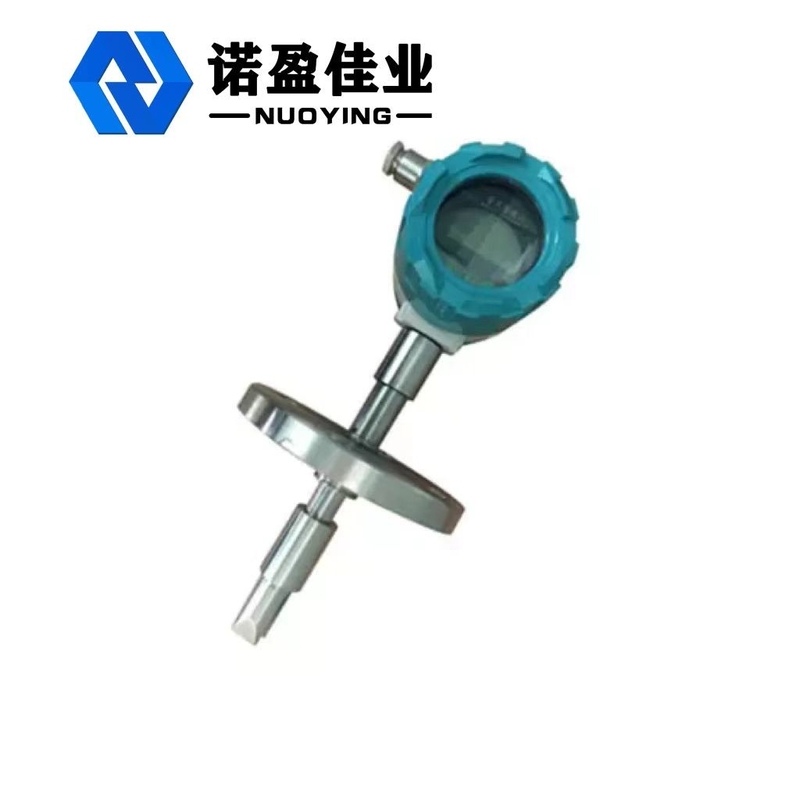

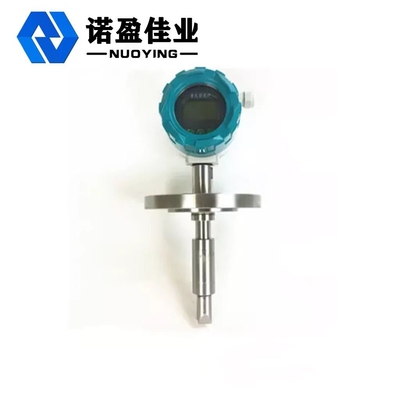

Digital tuning fork oil milk density meter liquid density meter tuning fork

Digital tuning fork oil milk density meter liquid density meter tuning fork
Digital tuning fork oil milk density meter liquid density meter tuning fork Digital tuning fork oil milk density meter liquid density meter tuning fork Digital tuning fork oil milk density meter liquid density meter tuning fork

Large Image :  Digital tuning fork oil milk density meter liquid density meter tuning fork

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: ExdⅡCT6/ExmbⅡCT6
Model Number: NYDE-CR
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs/ pre month

Digital tuning fork oil milk density meter liquid density meter tuning fork

Description
Shell: Cast Aluminium Connection: Sanitary
Accuracy: 0.001 G/cm3 Model: NYDE-CR
Range: 0.5~2.5g/cc(500-2500kg/m³) Temperature: -50℃~+200℃
Output: 4~20mA,0~1000HZ,RS485,Modbus RTU

Digital tuning fork oil milk density meter liquid density meter tuning fork





Description Tuning fork density meter

Tuning fork density meter principle description:Fork sensors ---------- one pair fork ceramic chip
A piezoelectric ceramic is responsible for collecting vibration
The fork is always vibrate in the resonant frequency of vibration
Fork in different densities ,the resonance frequencies was different,.according to the relationship between the different vibration and density to calculate the density
The resonance frequency of the tuning fork is between 1600-2400
The higher the frequency the smaller density.

Specifications Tuning fork density meter



1 Adopt Germany piezoelectric ceramic chip, with gold plated process to increase the oxidation resistance of ceramic chips, also can longer service life of density meter.
2 Fork vibration original chip adopt Japanese made high performance original chips, Built-in 24 AD converter, frequency identifying accuracy to be 0.01HZ, to warranty 3.the sensitivity and precision of the meter.
3 Fork density calibration adopts national density standard solution, to ensure the source and accurate of density.
4 The current circuit is independent of fork vibration circuit, there is isolating anti-interference inner, reducing the influence to instrument from disturb.
5 There is set density three point quick calibration, range adjust, current calibration etc function, to meet on-site working demands.





Detailes Tuning fork density meter



digital density sensor tuning fork density meterdigital density sensor tuning fork density meter
