NYCFQ-UK Customized Design Widely Applicable Magnetic Float Level Meter

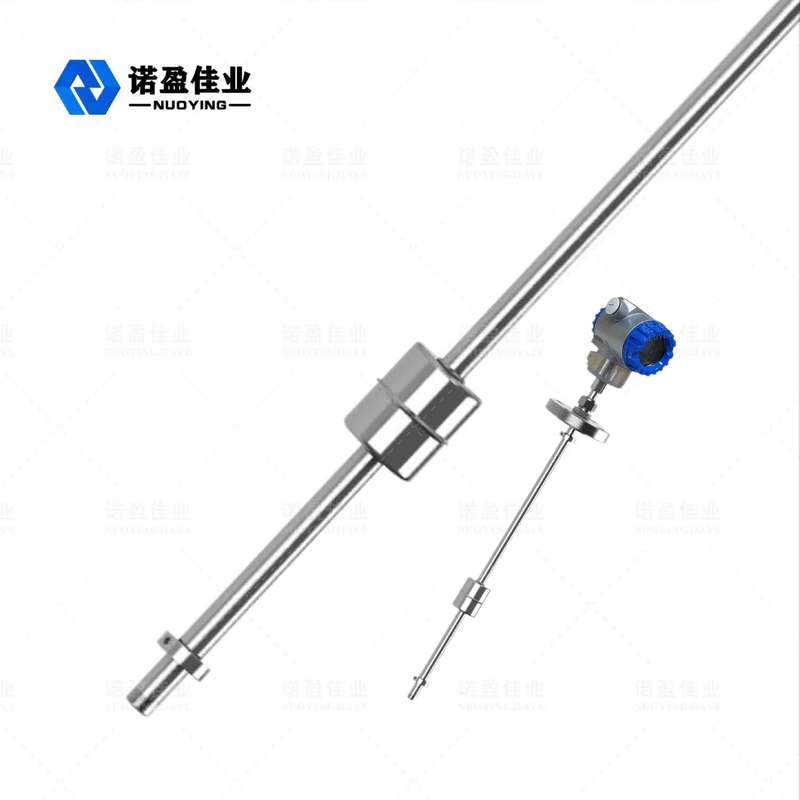

Large Image : NYCFQ-UK Customized Design Widely Applicable Magnetic Float Level Meter

Product Details:

Place of Origin:	Xi'an Shaanxi,China
Brand Name:	NUOYINGJIAYE
Certification:	CE
Model Number:	NYCFQ-UK

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$116.739 to $388.575/pcs
Packaging Details:	Carton,Export Standard Packaging
Delivery Time:	7 working days
Payment Terms:	T/T
Supply Ability:	1000 pcs/per month

Contact Now

NYCFQ-UK Customized Design Widely Applicable Magnetic Float Level Meter

Description

Product Models:	NYCFQ-UK	Typical Application:	Liquid Level
Process Pressureterface:	-0.1～2.0MPa	Float Material:	F4, PP, 304, PTFE (optional)
Length Of Probe Rod:	200~6000mm (customizable)	Ambient Temperature:	-40～+80℃
Process Temperature:	-40~+130℃	Process Connection:	Bracket, Flange (optional)

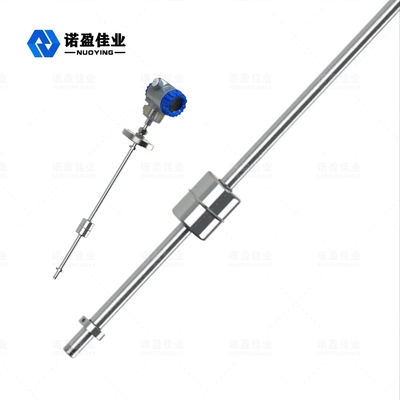

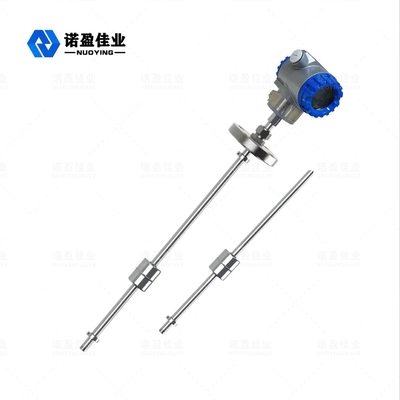

NYCFQ-UK Customized Design Widely Applicable Magnetic Float Level Meter

NYCFQ-UK Magnetic Float Level Meter Overview

NYCFQ series magnetic float level gauge is designed based on buoyancy and magnetic principle. The magnetic float level gauge is equipped with one or more reed tubes in a closed non-magnetic conduit, and then the conduit passes through one or more hollow floats with annular magnets inside. The annular magnetic float will drive the floating ball to move up and down along with the rise or fall of the liquid, so that the reed tube in the non-magnetic conductive tube will have a pull in or break action, output the resistance signal corresponding to the liquid level, and convert it into a 4-20mA standard signal output, and can also send a contact on (off) conversion signal.

NYUHZ Magnetic Flap Level Meter Technical Parameters

Typical Applications	Liquid level measurement
Product Model	NYCFQ-UL,NYCFQ-UK
Float Material	F4, PP, 304, PTFE (optional)
Length of Probe Rod	200~6000mm (customizable)
Ambient Temperature	-40～+80℃
Process Temperature	-40~+130℃
Process Pressure	-0.1～2.0MPa
Process Connection	bracket, flange (optional)
Medium Viscosity	<0.05Pa·S
Medium Density	0.5~2.0g/cm³
Output Signal	4-20mA,SPDT
Protection Grade	IP65, IP67, IP68 (optional)
Explosion Proof Grade	ExdⅡCT6Gb (see certificate for details)

Note: The products can be customized and designed according to the specific requirements of users!

NYCFQ-UK Magnetic Float Level Meter Design Features

◎ Customized design, multi-point control, wide application range;

◎ Simple structure, convenient installation and low maintenance cost;

◎ Stable and reliable performance, strong lightning protection and anti-interference capability;

◎ Multiple probe forms, suitable for various complex working conditions;

◎ Different floating ball materials can be selected according to different media density.
