High-Frequency Radar Level Transmitter For Solid Radar Material Level Sensor
NYRD900 Radar Level Transmitter Product Description
The NYRD900 radar level transmitter, which uses a millimeter-wave band with a higher frequency than the Ku band radar, provides long-range imaging in the presence of long-range target detection, strong smoke and dust conditions, multi-spectral imaging has important applications, and can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger security.
NYRD900 Radar Level Transmitter Typical Applications
1. Suitable for the measurement of narrow space or guided wave tube
2. Applicable to super large tank (150m) and small tank
3. High-precision, high-hygiene grade of measurement
4. Occasions with complex process conditions (mixing, heating Rod, ladder, floating roof, strong dust, strong steam, etc.)
NYRD900 Radar Level Transmitter Technical Parameters
| Typical application |
1.The electromagnetic wave emission Angle is less than 3 degrees, suitable for narrow space or waveguide tube measurement; 2.Suitable for large tanks (150m) and small tanks (small blind area); 3.High precision and high sanitary level measurement; 4.Occasions with complex process conditions (mixing, heating rod, ladder, floating roof, strong dust, strong steam, etc.) |
| Transmission frequency | 76Hz-81Hz, FM scanning frequency width 5GHz |
| Antenna form | Lens antenna, antiseptic lens antenna |
| Antenna material | PTFE, 304＋PTFE |
| Measuring range | 0.08-150m |
| Measuring accuracy | 0.05%-0.1% F.S |
| Power supply | 24VDC, 220VAC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+260℃ (≥260℃ can be customized) |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread, flange |
| Protection level | IP67,IP68 (optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Note: Products can be customized according to the specific requirements of users.

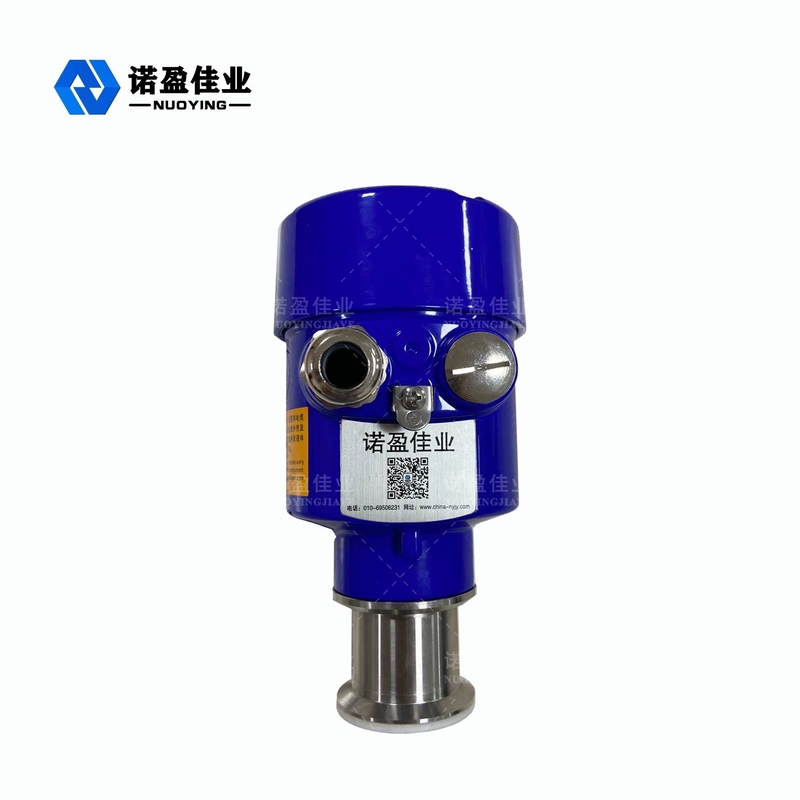

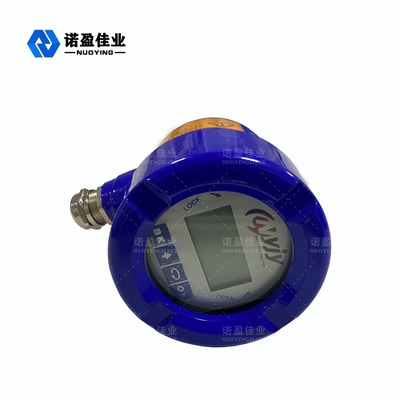

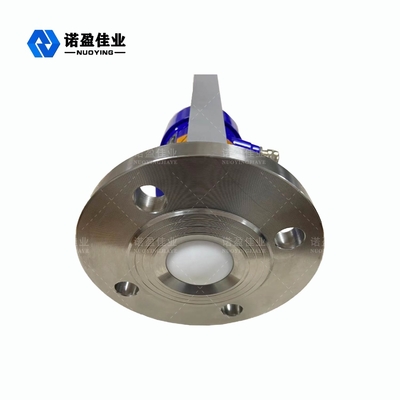

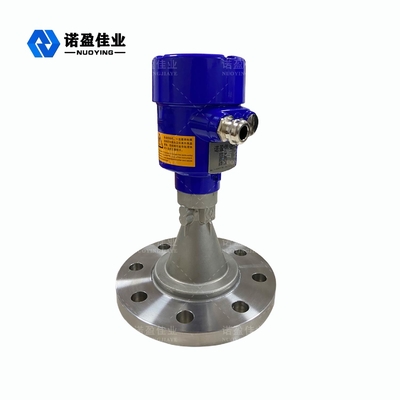

NYRD900 Radar Level Transmitter Pictures
