Product Details:
|
| Measuring Range: | -200 〜+1600 °C | Power Supply: | 24VDC (12VDC〜30VDC) |
|---|---|---|---|
| Process Connection: | Thread，Flange(optional) | Ambient Temperature: | -20〜+80 °C |
| Relative Humidity: | 5%- 95% | Hourly Drift: | Less Than ±0.5% Per Year |
| Protection Grade: | IP67 | Signal Output: | 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) |
| High Light: | 1600 Degree Temperature Transmitter Sensor,Temperature Transmitter Sensor HART,IP67 HART Temperature Transmitter |
||

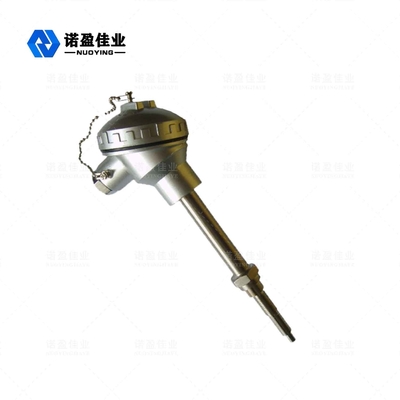

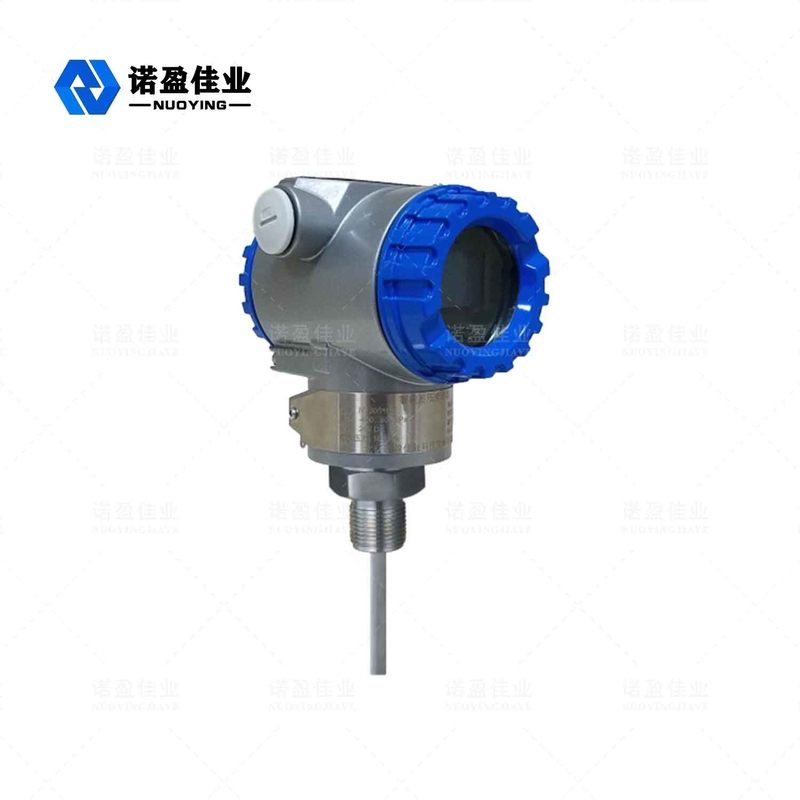

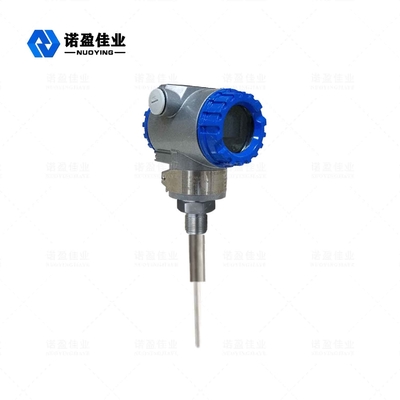

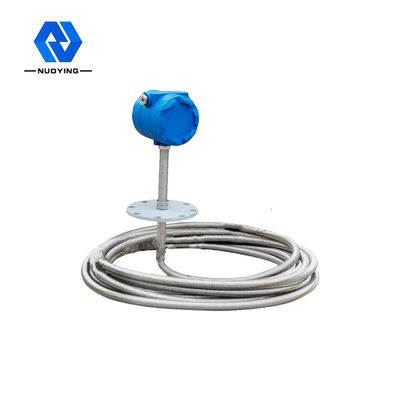

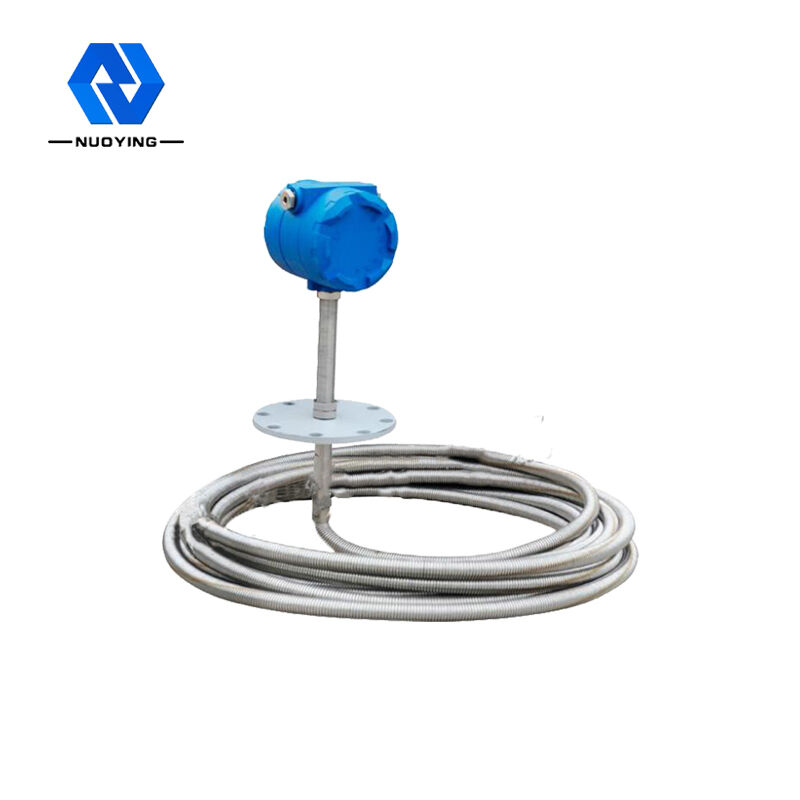

NT93420 Temperature Transmitter Sensor
NT93420 Temperature Transmitter Sensor Operating Principle
NT93420 temperature transmitter uses thermocouple, thermal resistance as temperature measuring element, output signal from temperature measuring element to transmitter module, through steady pressure filter, operation amplification, nonlinear correction, V / I conversion. After constant current and reverse protection circuits are processed, 4 〜20mA current signal 0-5V/0-10V voltage signal and RS485 digital signal output are converted into 4 〜20mA current signal with linear relationship with temperature.
NT93420 Temperature Transmitter Sensor Technical Parameter
| Typical application | measuring the temperature of liquid, steam and othergas media or solid surface in the range of -200 °C ~ 1600 °C |
| Measurement range | -200 〜+1600 °C |
| Accuracy | ±0.1%, ±0.5% |
| Power supply | 24VDC (12VDC〜30VDC) |
| Signal output | two-wire 4...20mADCand three-wire 1~5VDC |
| Ambient temperature | -20〜+80 °C |
| Relative humidity | 5%- 95% |
| Process connection | thread, flange mounting (optional) |
| Load capacity | 0〜500 Q |
| Response time | W 350mS |
| Hourly drift | less than ±0.5% per year |
| Protective pipe material | 1 Crl8Ni9Ti or ceramic or high aluminum pipe |
| Housing material | aluminum (optional) |
| Interface size | M27 x 2 or straight-in ceramic tube (optional) |
| Level of protection | IP67 |
※ Note: Products can be customized according to the specific requirements of users!
NT93420 Temperature Transmitter Sensor Design Features
◎ Simple installation and optional range of temperature measurement;
◎ Gas-liquid dual purpose, any medium compatible with 316L;
◎ Multiple linear analog signals are optional; Fast reaction speed, high precision, exquisite and durable structure, strong anti-interference ability;
◎ Good long-term stability, low energy consumption, small volume;
◎ Waterproof, explosion-proof^ heat-resistant, anti-seismic.
Application Field of NT93420 Temperature Transmitter Sensor
Petroleum, chemical, chemical fiber; Textile, rubber, building materials; Electric power, metallurgy, medicine; On-site temperature measurement process control in food and other industrial fields; Especially suitable for computer measurement and control system, can also be used with instruments. Such as: piping and ventilation system, hydraulic and pneumatic system, cooling system and heating system, water supply and hot water system, air conditioning system, automation system temperature measurement and control.
