Product Details:
|
| Temperature Range: | -20~+400℃ | Accuracy: | 0.3 |
|---|---|---|---|
| Material: | Stainless Steel | Theory: | Temperature Sensor |
| Application: | Temperature Measuring | Shape: | Probe, Screw, 1/4 NPT, M6,M8 |
| Type: | R/S/B/K/N/J/E/T/PT100/PT1000/CU50 | ||
| High Light: | Industrial K Type Thermocouple,0.3 Accuracy K Type Thermocouple,0.3 Accuracy Stainless Steel thermocouple |
||

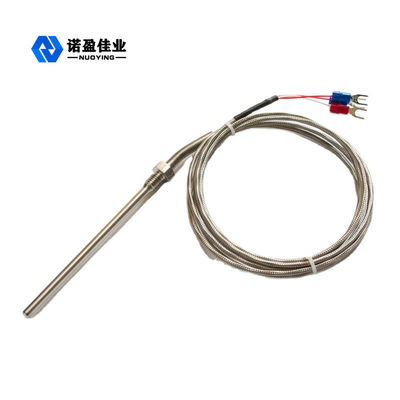

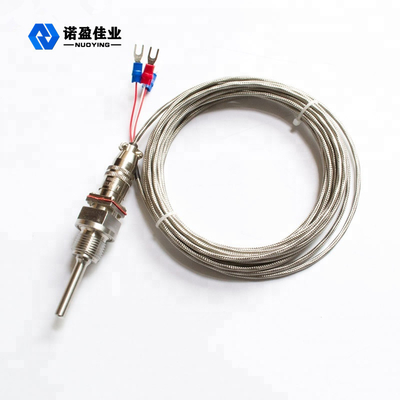

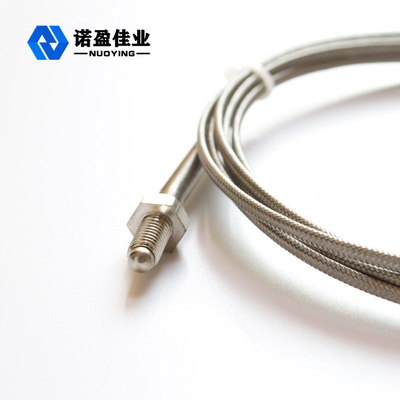

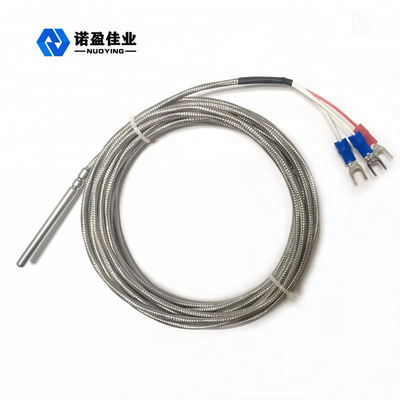

Industrial Thermo Well K Type Thermocouple Sensor
Industrial Thermo Well K Type Thermocouple Sensor Description:
Industrial thermo well K type thermocouple sensor is a temperature sensor using platinum (PT) resistance and temperature has a certain functional relationship, because of its high precision, large measurement range, reproducibility and stability. Can directly measure the surface temperature of various liquids, vapors, gases and solids. Especially suitable for installation in special miniaturized temperature places, pipe narrow, bending, fast response requirements.
Temperature sensor specifications:
1. The temperature range of use:
K (- 50 ~ 1300 ° C), S (50 ~ 1700 ° C), T (200 ~ 350 ° C),E (0 ~ 800 ° C), J (0 ~ 1000 ° C), B (300 ~ 1800 ° C), N (0 ~ 1300 ° C) PT100: -200 to 500℃ for Class A, -200 to 600℃ for Class B Cu50 ( -50 ~ 150℃ ) , Cu100 ( -50 ~ 150℃ )
2. Use the 2/3-wire interface
3. Accuracy from Class I, Class II
| Themocouple Temperature Sensor |  |
|
| Application Fields | Dust-free plant or workshop, sreenhoxise. room, environment protection, household appliance laboratprialplatfoim etc | Greenhouse, soil laboratorial platform, petrochemical Industxy,meet, rice storage, fermentation, wine making etc |
| Type | Simple type thermocouple. 2 wire | Direct plug-in type thermpcouple. 2 wire |
| Accuiacy | ClassI, Class II | |
| Measuring Range | K(-50 ~ 1300℃ ), S (-50 ~ 1700℃ ), T(-200 ~ 350℃ ), E(0~ 800°C), J(0~ 1000℃),B(300- 1800℃)N(0~ 1300°C) | |
| Protection Tube material and Dia. | 304SS,φ2mm,φ3mm. ,φ5mm ,6mm, 8mm ,10mm or customized | 304SS. 316SS; 2mm. 3mm. 5mm. 6mm. 8mm. 10mm or customized |
| Connecting Cable | Nonnal cable, PVC;PTFE High tempeiature proof cable, silica gel cable. Mica cable etc | |
| Themocouple Temperature Sensor | |
|
| Application Fields | Pipe inspection, compressors, engines, motor, shipbuilding, sears, bearings. petrochemical, industrial equipment ,food machinery,boiler, furnace, tempeiature control systym, metallurgy, cement ,printing and dyeing,hydropowar, thermal power, wind power, laborstorial platfom, glass | Pipe inspection, petrochemicals, liquid handling equipment, food machinery, chemical equipment,metallurgy, hydropower,thermal power, experimental platform, buildmg materials |
| Type | Single thread armored thermocouple | Single Flaneed. armored thermocouple |
| Accuiacy | ClassI, Class II | |
| Measuring Range | K(-50 ~ 1300℃ ), S (-50 ~ 1700℃ ), T(-200 ~ 350℃ ), E(0~ 800°C), J(0~ 1000℃),B(300- 1800℃)N(0~ 1300°C) | |
| Protection Tube Material &Dia. | 304SS:316SS; 5mm. 6mm. 8mm. 10mm: 12mm or customized | |
| Process Connection | Thread M8X1.5,M10X1.5,M12x1.5,M16x1.5etc | Flange ,customized |
| Connecting Cable | Nonnal cable,PVC;PTFE;High temperature proof cable, silica gel cable,Mica cable etc | |
1. High precision and good stability;
2. High sensitivity and good linearity;
3. Short response time and good compatibility;
4. Compact structure, easy installation, good waterproof performance
