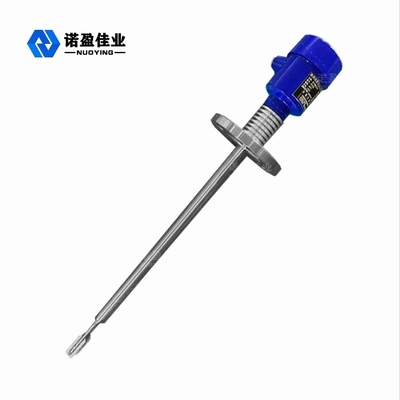

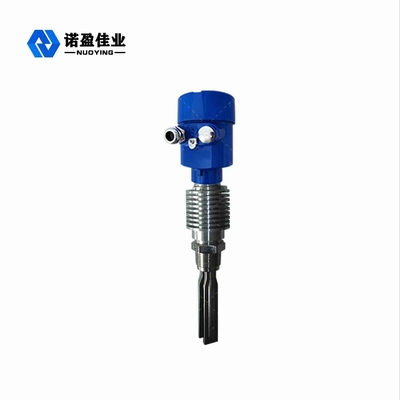

IP67 Tuning Fork Level Transmitter SPDT High Temperature Measurement

Description
Medium: Liquid The Temperature: -40-130℃
Pressure: 0-2MPa The Power Supply: 24VDC
The Output: SPDT The Length Of The Sheath Maerial: 100mm
The Connection: The Screw Thread
High Light:

IP67 Tuning Fork Level Transmitter

,

Tuning Fork Level Transmitter SPDT

,

SPDT tuning fork switch

Tuning Fork Level Switch



NYYCUK tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, but also for the measurement of free-flowing, medium-density solid powders or granules. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so it does not need maintenance and adjustment, and is simple and convenient to use.

In addition, the level switch adopts foreign new technology and original imported chips, which has the advantages of long service life, stable performance, safety and reliability, and strong adaptability (different electrical parameters and density of the measured medium will not affect the measurement) , No adjustment (no on-site adjustment is required no matter what medium is measured) and maintenance-free, it is widely used in the process control of material level in metallurgy, building materials, chemical industry, light industry, grain and other industries.



Tuning Fork Level Switch Liquid Technical Parameter



Typical Applications Can be used with most fluids, including coating fluids, aerated fluids, and slurries
Fork body material 304/316L (optional)
Fork length 44mm (can be customized)
Power supply 24VDC, 220VAC
Working temperature Fork body -40~+180℃ Instrument -40~+80℃
Process pressure <2.0MPa
Process connection Thread, Flange (optional)
Signal output SPDT relay output
Protection class IP67
Explosion-proof grade ExiaⅡCT6 Ga, ExibⅡCT6 Gb



Tuning Fork Level Switch Installation Requirements



  • The instrument is generally installed vertically with the fork end downwards, horizontally or inclined downwardly with the fork end (when the material has strong adhesion, it is recommended to install it vertically with the fork end downward).
  • The instrument is not allowed to be installed upwards, that is, the installation method with the fork end upwards.
  • Vertical or inclined installation is recommended when the material is mixed with lumps or hard particles.
  • It is recommended to test the calibration sensitivity with a small sample of the medium prior to installation on the equipment. For example: immerse the meter in a medium-filled window to check the reliability of the switch.
  • The actual installation is generally divided into top installation (high-level monitoring of the medium), side wall installation (high-level or low-level monitoring of the medium), and pipeline installation (air flow monitoring of the material pump).



Tuning Fork Level Switch Electrical Connections



The wiring of NYYCUK tuning fork level switch is shown in the figure. No. 1 and No. 2 of the instrument terminal are AC220V AC power supply, No. 3 is the earth, No. 4 and No. 5 are DC24V DC power supply), No. 6, No. 7, No. 8, No. 9, No. 10, No. 11 are relay output terminals.



When the selection limit selection is in the L state:



Contacts 6, 7, 9, and 10 of the relay are normally closed, and contacts 7, 8, 10, and 11 are normally open. The red light is on, indicating that the tuning fork is in a vibrating state. When the material touches the plug, the plug stops vibrating, and the green light is on, the relay Turn over, normally open contacts 7, 8, 10, 11 are closed, and normally closed contacts 6, 7, 9, 10 are disconnected, indicating that the tuning fork is in a stopped vibration state.
