|Pressure:||2MPa||The Power Supply:||24VDC、220VAC|
|The Output:||DPDT||The Length Of The Sheath Maerial:||44mm|
|The Connection:||The Screw Thread|
DPDT Tuning Fork Level Switch,
Tuning Fork Level Switch 44mm,
44mm Vibrating Fork Liquid Level Switch
Tuning Fork Level Switch Liquid

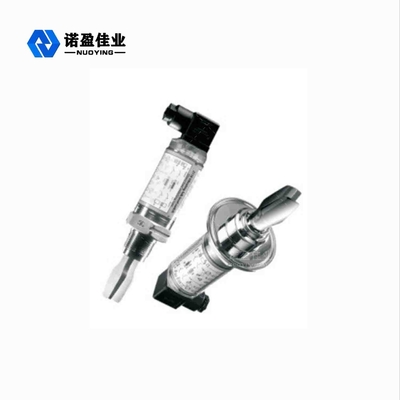

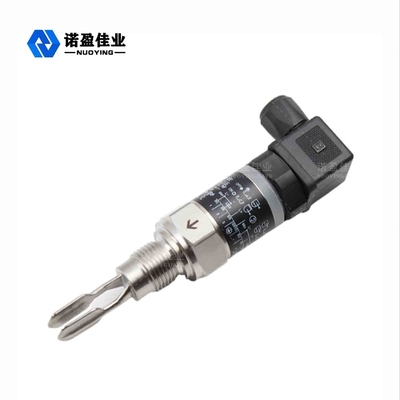

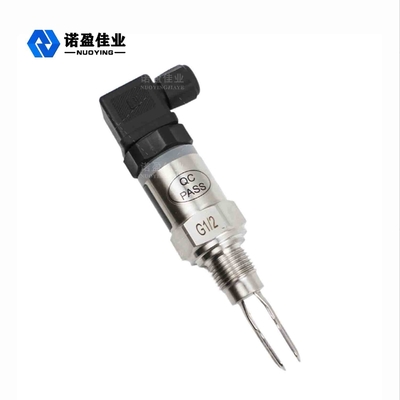

NYYCUK tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, but also for the measurement of free-flowing, medium-density solid powders or granules. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so it does not need maintenance and adjustment, and is simple and convenient to use.
In addition, the level switch adopts foreign new technology and original imported chips, which has the advantages of long service life, stable performance, safety and reliability, and strong adaptability (different electrical parameters and density of the measured medium will not affect the measurement) , No adjustment (no on-site adjustment is required no matter what medium is measured) and maintenance-free, it is widely used in the process control of material level in metallurgy, building materials, chemical industry, light industry, grain and other industries.
Tuning Fork Level Switch Liquid Technical Parameter
|Typical Applications||Can be used with most fluids, including coating fluids, aerated fluids, and slurries|

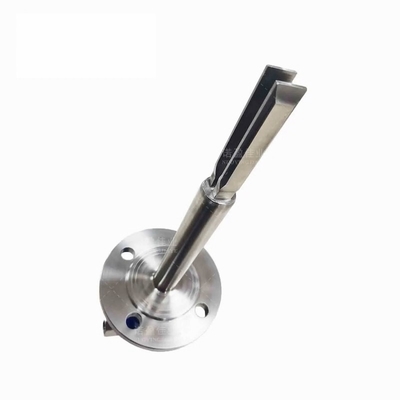

|Fork body material||304/316L (optional)|
|Fork length||44mm (can be customized)|
|Power supply||24VDC, 220VAC|
|Working temperature||Fork body -40～+180℃ Instrument -40～+80℃|
|Process connection||Thread, Flange (optional)|
|Signal output||SPDT relay output|
|Explosion-proof grade||ExiaⅡCT6 Ga, ExibⅡCT6 Gb|
Tuning Fork Level Switch Liquid Measurement principle
NYYCUK tuning fork level switch is a new type of level switch. It is designed and manufactured using the principle of tuning fork vibration. It is on the base of the induction rod of the tuning fork level switch, the tuning fork rod is driven through the piezoelectric chip, and the vibration signal is received by another piezoelectric chip, so that the vibration signal can be circulated, and the induction rod can be resonated. When the material is in contact with the induction rod, the vibration signal gradually becomes smaller, until the resonance stops, the control circuit will output the electrical contact signal. Due to the natural principle that the sensitivity of the induction rod decreases sequentially from the front to the back seat, when the material in the tank and the surrounding of the barrel are piled up and touch the base of the induction rod (the rear) or discharge, no error signal will be generated. Simply put, the tuning fork generates mechanical vibration under the excitation of piezoelectric crystal, and this vibration has a certain frequency and amplitude. When the tuning fork is submerged in liquid or solid, the vibration frequency and amplitude of the tuning fork will change. This frequency change is detected by the electronic circuit and outputs a switch value.
Tuning Fork Level Switch Liquid Design Features
