Product Details:
|
| Probe Rod Length: | 500mm (customizable As Required) | Power Supply: | 24VDC, 220VAC (optional) |
|---|---|---|---|
| Material: | 304+PTFE (optional) | Process Pressure: | < 2.0MPa |
| Operating Temperature: | -40~130℃ | Case Material: | Aluminum Shell，304stainless Steel Optional |
| Time Delay: | 0〜30s Adjustable | Applications: | Liquid, Powder, Particle, Solid Position Control Bar |
| Highlight: | 304 PTFE RF Admittance Level Switch,Aluminum RF Admittance Level Switch,304 PTFE rf level sensor |
||

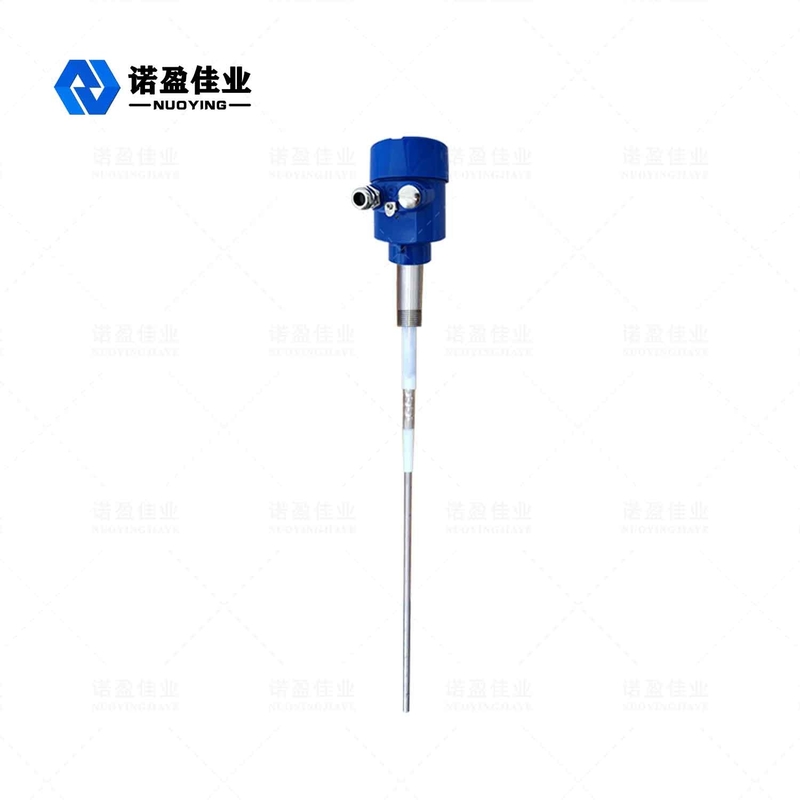

NYSP-L861 (Standard) RF Admittance Switch
NYSP RF Admittance SwitchTechnical Parameter
| Applications | liquid, powder, particle, solid position control Bar |
| Material | 304+PTFE (optional) |
| Probe rod length | 500mm (customizable as required) |
| Power supply | 24VDC, 220VAC (optional) |
| Process temperature | -40 ~ +130 °C |
| Process pressure | < 2.0MPa |
| Process connection | Thread, flange (optional) |
| Time delay | 0〜30s adjustable |
| Power loss protection | open, close, field switchable |
| Output relay | double pole, double throw (DPDT) output,5A, 24V DC or 5A, 220VAC |
| Protection grade | IP67 |
| Explosion-proof grade | Exia IICT6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
