Product Details:
|
| Probe Rod Length: | 500mm (customizable As Required) | Probe Type: | High Temperature Type Ceramic Probe |
|---|---|---|---|
| Material: | 316+ Ceramic (optional) | Process Connection: | Screw Thread, Flange(optional) |
| Operating Temperature: | > +260 °C | Ambient Temperature: | -40 ~ +80 °C |
| Power Loss Protection: | Open, Close, Field Switchable | Protection Grade: | Double Pole, Double Throw (DPDT) Output,5A, 24V DC Or 5A, 220VAC |
| High Light: | High Temperature RF Admittance Level Switch,RF Admittance Level Switch SS316,SS316 admittance level sensor |
||

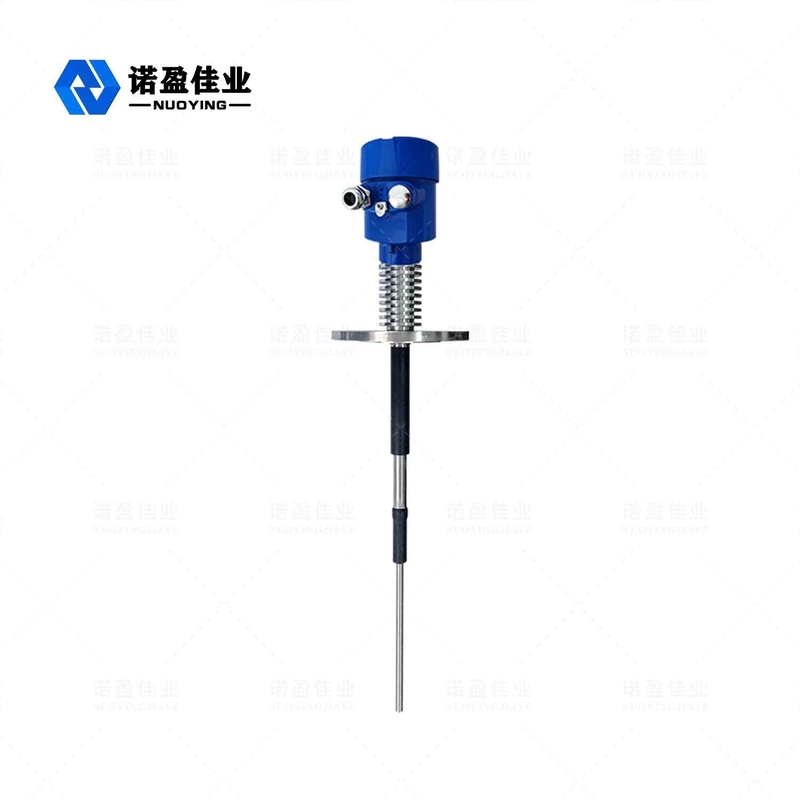

NYSP-L863 High Temperature Type RF Admittance Switch

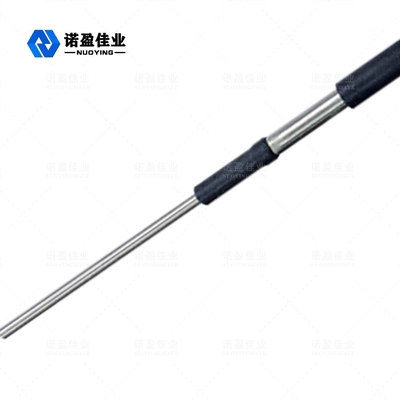

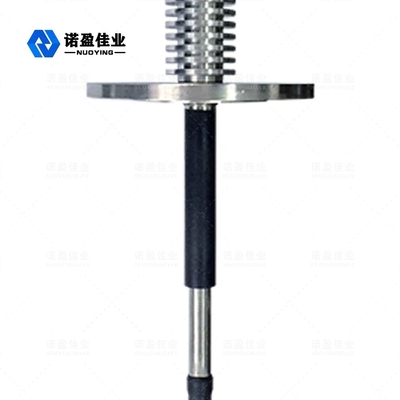

Rf admittance level switch adopts high temperature ceramic probe, making the product more suitable for > 260℃ and other occasions, widely used in petroleum, chemical industry process level alarm.
NYSP RF Admittance Switch Operating Principle
Rf admittance switch is also often called rf admittance level meter or RF admittance level meter. Rf admittance is a new level control technology developed from capacitive, which is more reliable, more accurate and more widely applicable. It is an upgrade of capacitive level technology. The so-called rf admittance means the reciprocal of impedance in electricity, which is composed of resistive components, capacitive components and perceptual components. Rf is high-frequency radio spectrum, so rf admittance can be understood as the measurement of admittance with high-frequency radio waves. When the instrument is working, the sensor of the instrument forms the admittance value with the tank wall and the measured medium. When the level changes, the admittance value changes accordingly. The circuit unit converts the measured admittance value into the level signal output to realize the level measurement.
NYSP RF Admittance SwitchTechnical Parameter
| Applications | liquid,particle, particle, solid position control , especially for high |
| Material | 316+ Ceramic (optional)
|
| Probe rod length | 500mm (customizable as required) |
| Power supply | 24VDC, 220VAC (optional) |
| Process temperature | > +260 °C |
| Process pressure | < 2.0MPa |
| Process connection | Thread, flange (optional) |
| Time delay | 0〜30s adjustable |
| Power loss protection | open, close, field switchable |
| Output relay | double pole, double throw (DPDT) output,5A, 24V DC or 5A, 220VAC |
| Protection grade | IP67 |
| Explosion-proof grade | Exia IICT6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
