| Brand Name: | NUOYINGJIAYE |
| Model Number: | NYSP-L864 Soft Cable Type |
| MOQ: | 1 |
| Price: | $100 to $380 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |

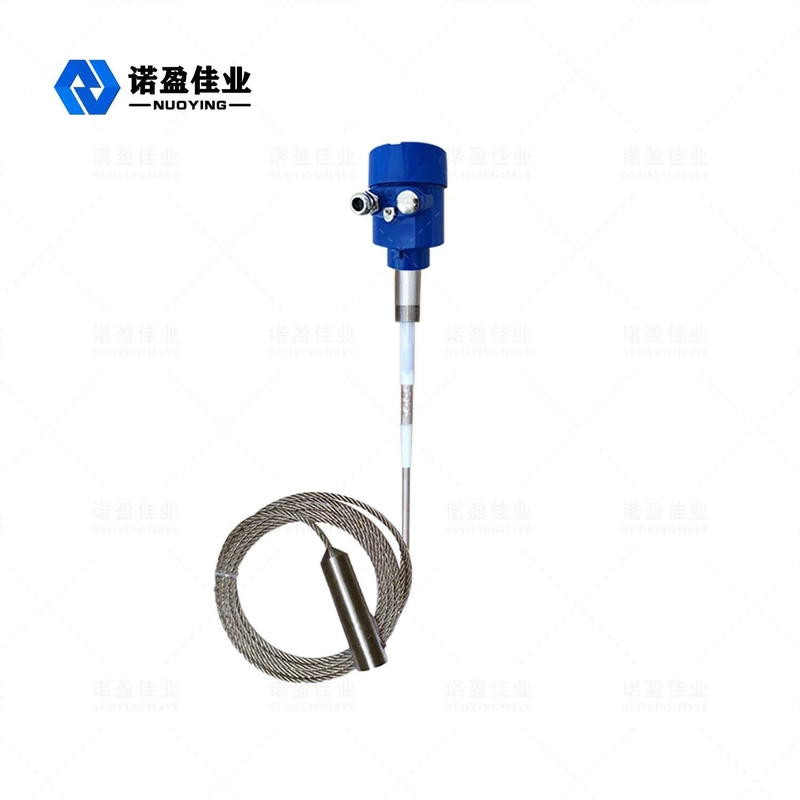

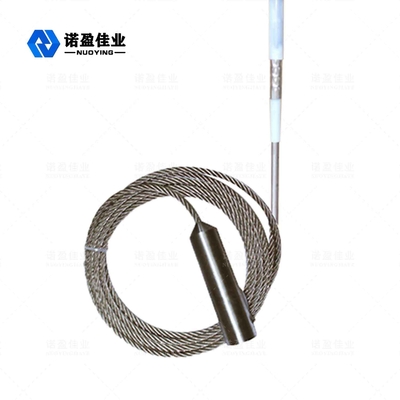

NYSP-L864 (Soft Cable Type) RF Admittance Switch
NYSP RF Admittance SwitchTechnical Parameter
| Applications |
vertical top installation, can be used as coal conveyer |
| Material | 304+PTFE (optional)
|
| Probe rod length | 500mm (customizable as required) |
| Power supply | 24VDC, 220VAC (optional) |
| Process temperature | -40 〜+130 °C |
| Process pressure | 0~ 2.0MPa |
| Process connection | Thread, flange (optional) |
| Time delay | 0〜30s adjustable |
| Power loss protection | open, close, field switchable |
| Output relay | double pole, double throw (DPDT) output,5A, 24V DC or 5A, 220VAC |
| Protection grade | IP67 |
| Explosion-proof grade | Exia IICT6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
NYSP RF Admittance Switch Installation requirements
Note:
When the RF admittance level switch is installed horizontally, the length of the probe cover G must be extended into the wall of the port; in vertical installation, the total length of the probe S must be equal to or greater than the position of the control point.
