Product Details:
|
| Probe Rod Length: | 30mm (customizable As Required) | Power Supply: | 24VDC, 220VAC (optional) |
|---|---|---|---|
| Material: | 304+PTFE (optional) | Process Connection: | Flange(optional), Flanged |
| Process Pressure: | < 2.0MPa | Operating Temperature: | -40~130℃ |
| Protection Grade: | IP67 | Explosion-proof Grade: | Exia IICT6 (optional) |
| Highlight: | Plate Type RF Admittance Level Switch,RF Admittance Level Switch SS304,30mm RF Level Transmitter |
||

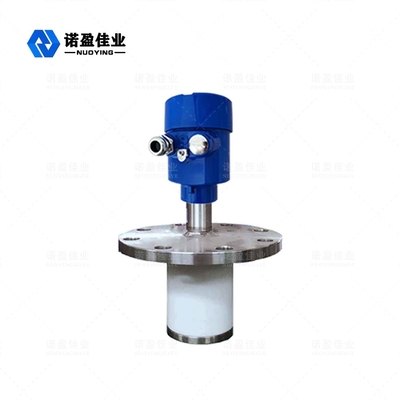

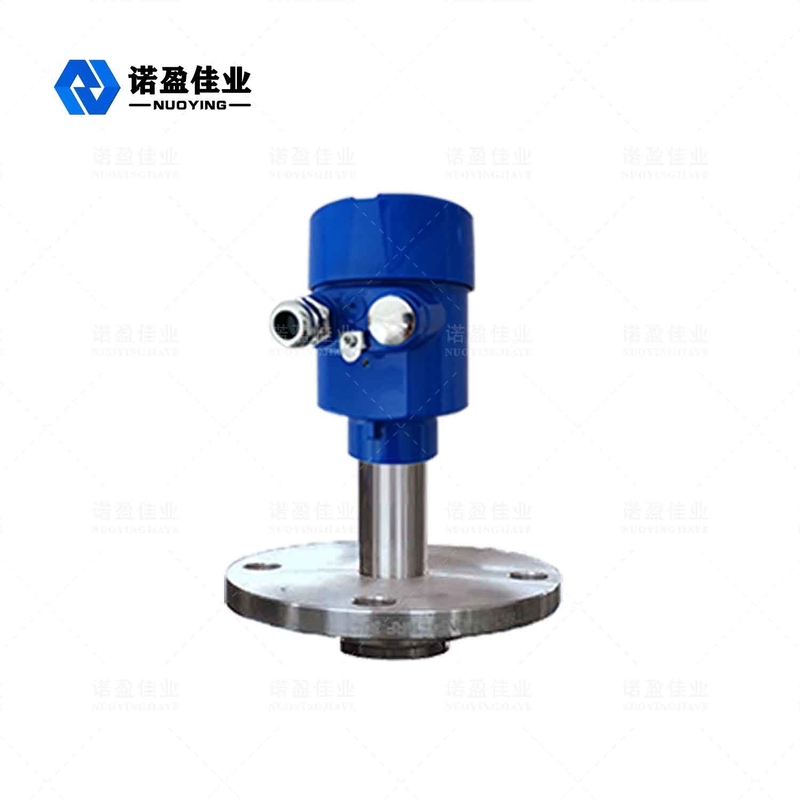

NYSP-L865 (Plate Type) RF Admittance Switch
Coal blocking alarm switch is a material level measurement instrument, also known as coal blocking switch, coal blocking alarm and other names, but are used to solve the raw coal in the manufacturing process of a material level control.
NYSP RF Admittance SwitchTechnical Parameter
| Applications |
flat panel probe to solve the impact of bulk material on rod |
| Material | 304+PTFE (optional)
|
| Probe rod length | 500mm (customizable as required) |
| Power supply | 24VDC, 220VAC (optional) |
| Process temperature | -40 〜+130 °C |
| Process pressure | 0~ 2.0MPa |
| Process connection | flange (optional) |
| Time delay | 0〜30s adjustable |
| Power loss protection | open, close, field switchable |
| Output relay | double pole, double throw (DPDT) output,5A, 24V DC or 5A, 220VAC |
| Protection grade | IP67 |
| Explosion-proof grade | Exia IICT6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
In the use of the site, what are the coal plug switches
1, according to the measurement needs of the field, the use of more resistance spin material level switch, it has the advantage of low cost, in the particle, powder, block medium, has the characteristics of high stability of measurement.
2, radio frequency admittance level switch, this is a relatively high cost of material level sensor, high measurement sensitivity, and has the characteristics of preventing hanging material.
3, intelligent display type rf capacitive material level controller, compared with the former two kinds of material level sensor, its use cost and promoted a step, but its performance is better, not only for liquid and solid material level measurement with high precision, and can also be measured ultra low dielectric constant of the medium, such as: typical cooking oil, plastic particles, etc.
In the measurement of raw coal condition, rf admittance switch is the most used.
