NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design

NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design
NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design

Large Image :  NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYZX(Sickle Blade)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100 to $380
Packaging Details: 80cm×17cm×24cm
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 400 pcs/ pre month

NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design

Description
Probe Rod Length: 200mm (customizable As Required) Power Supply: 24VDC, 220VAC (optional)
Material: SS304,SS316 Process Connection: Thread, Flange (optional)
Process Pressure: 0~ 1.6MPa Operating Temperature: -40 - +80 °C (> +80 °C Customizable)
Shell Material: Aluminium Explosion-proof Grade: Exia IICT6 (optional)
High Light:

NYZX Rotary Paddle Level Switch

,

Rotary Paddle Level Switch Aluminium

,

Aluminium paddle level sensor



NYZX ( Sickle Blade )Resistive Level Switch



NYZX Resistive Level Switch Operating Principle



The NYZX series resistive material level switch is a device that uses permanent magnet motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detecting device in the junction box. The detecting device outputs a switch signal outward and cuts off the power to stop the blade from turning. When the material level drops, the blade resistance disappears, and the testing device returns to its original state by relying on the spring's pulling force, and adjusts the spring's pull force according to the specific gravity of different materials. When the specific gravity is large, the spring tensile force is adjusted to be strong or strongest. On the contrary, adjust to weak or weakest.
NYZX series resistive level switch is used to detect solid material (powder, particle) level control equipment, widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.



NYZX Resistive Level SwitchTechnical Parameter



Applications powder, small particle level control
Bar material 304,316 (optional)
Probe length 200mm (customizable as required)
Power supply 24VDC,220VAC (optional)
Process temperature -40 - +80 °C (> +80 °C customizable)
Process pressure normal pressure,0~ 1.6MPa
Process connection thread, flange (optional)
Dielectric density N 0.4g/cm3
Insulation impedance N 100MKQ (500VDC)
Dielectric strength 1500V lmin
Contact capacity 250V 5A (SPDT)
Moment 10kg*m (lN*m)
Power 3.0W
Electrical interface 3/4 nNPT
Shell material Aluminium (optional)
Level of protection IP67
Anti-hazard classification Exia II CT 6 (optional)



※ Note: Products can be customized according to the specific requirements of users!

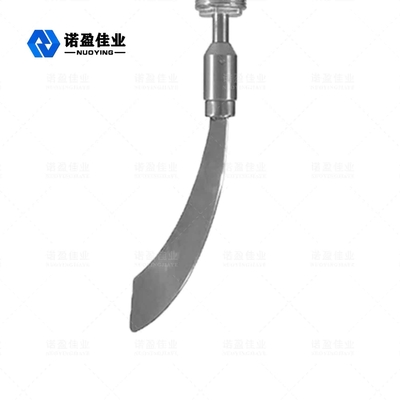

NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design 0

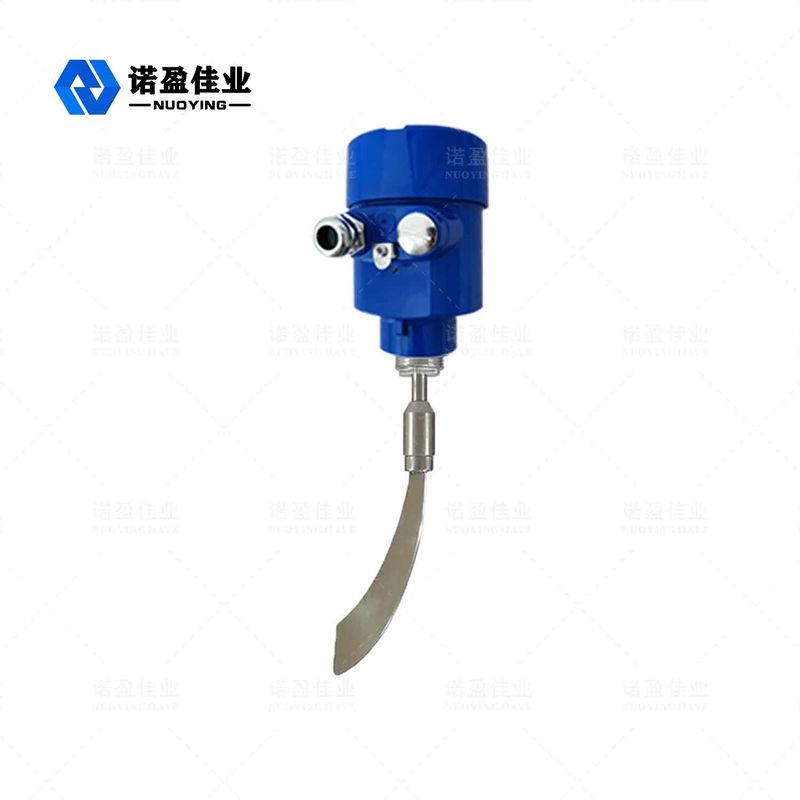

NYZX Rotary Paddle Level Switch Aluminium Oil Seal Design 1


NYZX Resistive Level Switch Features

  • Unique oil seal design can prevent dust infiltration along the axis;
  • The motor of the imported resistive rotary switch is reliable, and the double seal bearing can guarantee the continuous operation for a long time;
  • Simple structure and convenient installation;
  • Stable and reliable, and the size of the torque can be adjusted;
  • A variety of probe forms can be used in different situations;
  • Large output contact capacity.
