Product Details:
|
| Float Material: | F4, PP, 304, 304+F4,PTFE(optional) | Probe Rod Length: | 200〜6000mm(Customizable ) |
|---|---|---|---|
| Dielectric Viscosity: | < 0.05Pa*S | Process Connection: | Flange(optional) |
| Process Pressure: | 0〜2.0MPa | Operating Temperature: | -20~+130°C |
| Dielectric Density: | 0.5〜2.0g/cm3 | Explosion-proof Grade: | Exia IICT6 (optional) |
| High Light: | Explosion Proof Float Level Switch,Float Level Switch 2Mpa,2Mpa Microwave Level Switch |
||

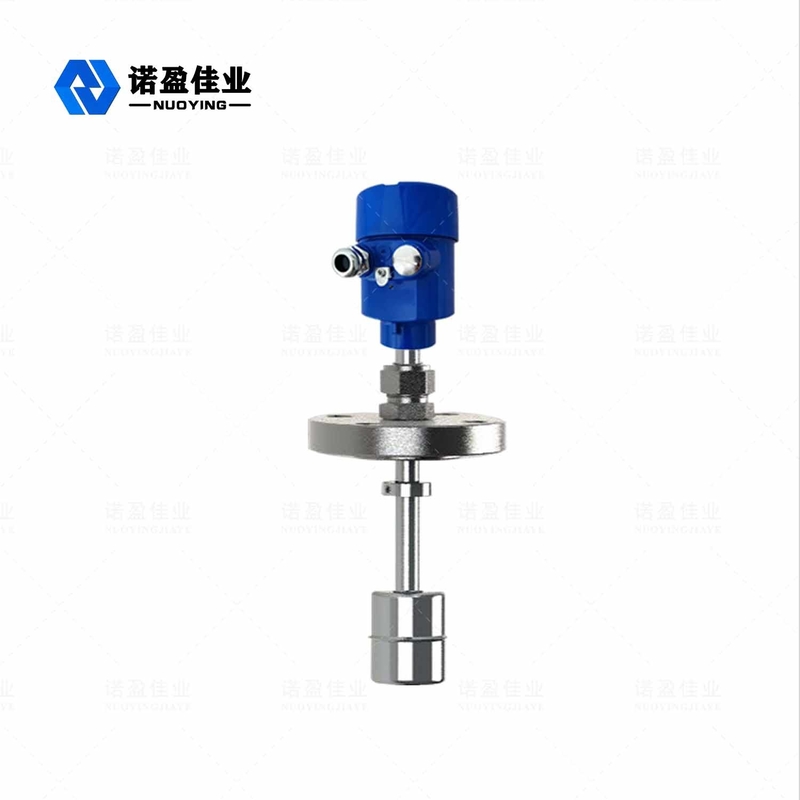

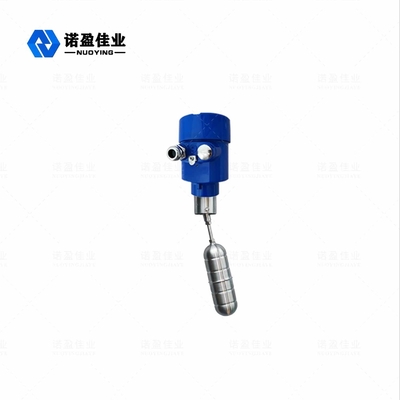

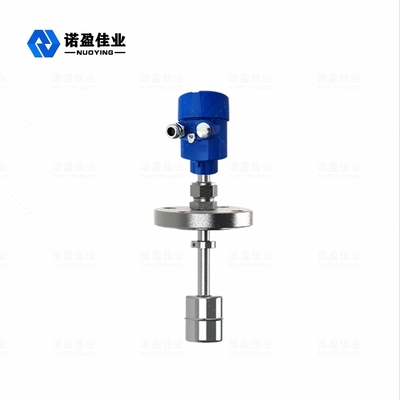

NYFQ Float Level Switch Liquid Level Alarm
NYFQ series float level switch is based on buoyancy and magnetic principle. The magnetic float of the float liquid level switch increases or drops with the liquid level, which causes the sensor to detect the action of the dry spring tube chip in the set position of the pipe, and to send out the switch signal of the contact point opening (closing). One or more dry spring tubes are installed in a closed non-conductive magnetic tube, and then the tube is passed through one or more hollow floating balls with ring magnets, and the rise or fall of the liquid will cause the float to move up and down together. Thus, the dry spring tube in the non-conductive magnetic tube can be sucked or disconnected, and the resistance signal or switch signal corresponding to the liquid position can be output.
NYFQ Float Level Switch Technical Parameter
| Float material | F4, PP, 304, 304+F4,PTFE(optional) |
| Probe rod length | 200 〜6000mm(Customizable ) |
| Power supply | 24VDC, 220VAC (optional) |
| Process temperature | -20~+130°C |
| Process pressure | 0〜2.0MPa |
| Process connection | Flange (optional) |
| Dielectric viscosity | < 0.05Pa*S |
| Dielectric density | 0.5〜2.0g/cm3 |
| Measuring distance | 120m |
| Protection grade | IP66 |
| Explosion-proof grade | Exia IICT6 (optional) |
| Power loss protection | normally on, on and off, switchable on-site |
| Output relay | single pole single throw or single pole double throw |
※ Note: Products can be customized according to the specific requirements of users!
NYFQ Float Level Switch Installation requirements
NYFQ Float Level Switch Application field
NYFQ Series floating ball liquid level switch is a kind of liquid level controller with simple structure and convenient use. It does not need to provide power supply and has no complex circuit. It has the advantages of smaller size and longer working life than general mechanical switch. It can be used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, as long as the material is selected correctly, any kind of liquid or pressure, temperature can be used in the shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, Oil pressure machinery has been widely used in many fields.
