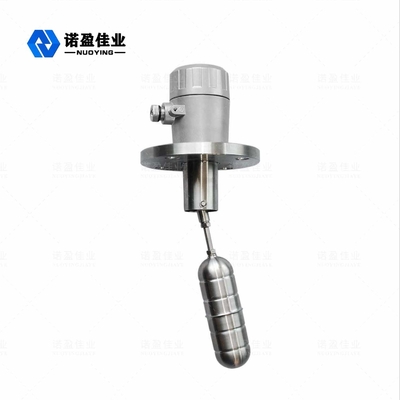

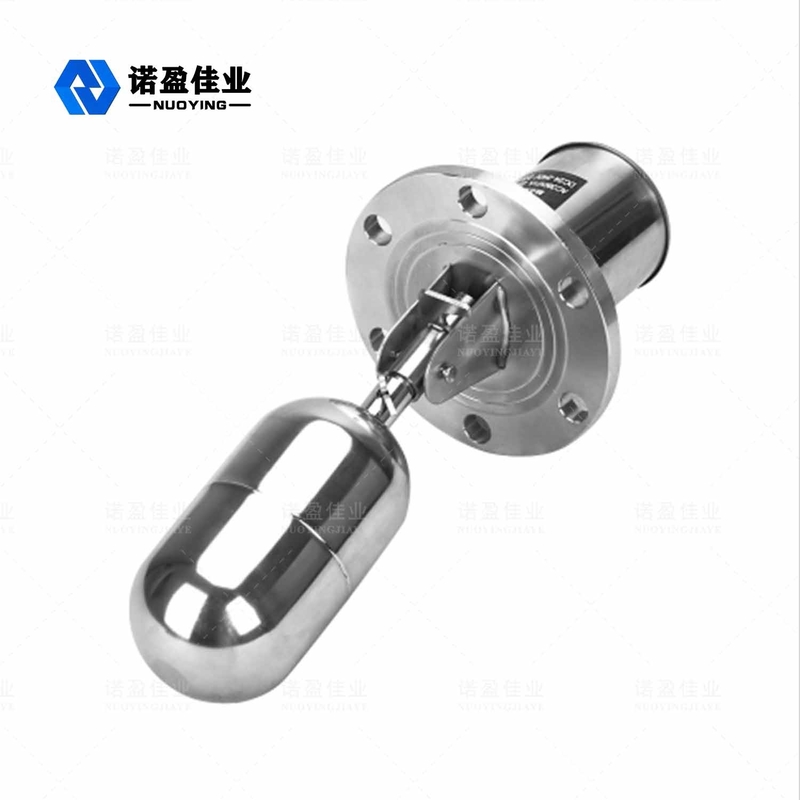

24VDC Stainless Steel Float Switch For Water Tank IP66 120m

24VDC Stainless Steel Float Switch For Water Tank IP66 120m
24VDC Stainless Steel Float Switch For Water Tank IP66 120m 24VDC Stainless Steel Float Switch For Water Tank IP66 120m

Large Image :  24VDC Stainless Steel Float Switch For Water Tank IP66 120m

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYFQ Float
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100 to $380
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 300 pcs/ pre month

24VDC Stainless Steel Float Switch For Water Tank IP66 120m

Description
Float Material: F4, PP, 304, 304+F4,PTFE(optional) Probe Rod Length: 200〜6000mm(Customizable )
Dielectric Viscosity: < 0.05Pa*S Power Supply: 24VDC, 220VAC (optional)
Process Pressure: 0〜2.0MPa Operating Temperature: -20~+130°C
Protection Grade: IP66 Explosion-proof Grade: Exia IICT6 (optional)
High Light:

24VDC Stainless Steel float switch

,

Float Switch For Water Tank IP66

,

120m float level transmitter



NYFQ Float Level Switch Liquid Level Alarm​



NYFQ series float level switch is based on buoyancy and magnetic principle. Technical advantages of floating ball level switch: floating ball switch does not contain bellows, springs, seals and other components that lead to failure. Instead, a straight float is used to drive the internal magnet of the switch, and the simple lever of the float switch makes the switch move instantaneously. Float cantilever Angle limit design, prevent float vertical. Float level switch is a kind of simple structure, easy to use, safe and reliable level controller. It is faster than the general mechanical switch, long working life; Compared with the electronic switch, it has the characteristics of strong resistance to load impact, a product can achieve multi-point control. It has been widely used in shipbuilding, paper making, printing, generator equipment, petrochemical industry, food industry, water treatment, electrician, dye industry, hydraulic machinery and other aspects. Float switch is a kind of simple structure, easy to use, safe and reliable liquid level control device, it has a small volume than the general mechanical switch, fast speed, long service life, compared with the electronic switch, it has the characteristics of strong resistance to load impact.



NYFQ Float Level Switch Technical Parameter



Float material F4, PP, 304, 304+F4,PTFE(optional)
Probe rod length 200 〜6000mm(Customizable )
Power supply 24VDC, 220VAC (optional)
Process temperature -20~+130°C
Process pressure 0〜2.0MPa
Process connection Flange (optional)
Dielectric viscosity < 0.05Pa*S
Dielectric density 0.5〜2.0g/cm3
Measuring distance 120m
Protection grade IP66
Explosion-proof grade Exia IICT6 (optional)
Power loss protection normally on, on and off, switchable on-site
Output relay single pole single throw or single pole double throw



※ Note: Products can be customized according to the specific requirements of users!



NYFQ Float Level Switch Measuring principle



The magnetic float of the float level switch is used to rise or fall with the liquid level, so that the dry reed tube chip at the set position in the sensor detection tube moves, and the contact on (off) conversion signal is sent.

In airtight non magnetic conductivity tube fitted with one or more of the dry reed pipe, then the tube through one or more hollow and internal ring magnets floating ball, rise or fall of liquids will drive the floating ball move up and down together, so that the non magnetic conductivity tube suction reed tube or disconnect, so as to output a signal switch



NYFQ Float Level Switch Installation requirements



  • The specific gravity of the liquid must be considered before installation.
  • The installation reservation hole must be larger than the outer diameter of the float ball;
  • When installing, do not install in the water inlet
