Product Details:
|
| Accuracy: | High | Range: | Optional 0-25m |
|---|---|---|---|
| Output: | RS485 | Material: | Probe Andcable Optional |
| For: | Liquid | Display: | Yes |
| Connection: | Many Types | Signal Output: | 4... 20mA/HART/RS485/Modbus... |
| High Light: | Liquid Magnetostrictive Level Transmitter,RS485 Magnetostrictive Level Transmitter,25m High Accuracy Magnetostrictive Level Sensor |
||
Working principle of Magnetostrictive Level Gauge

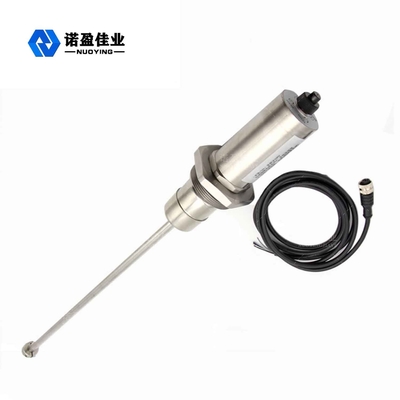

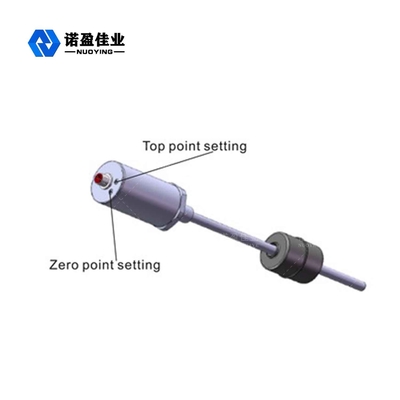

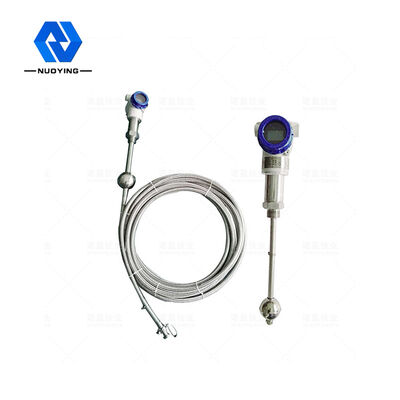

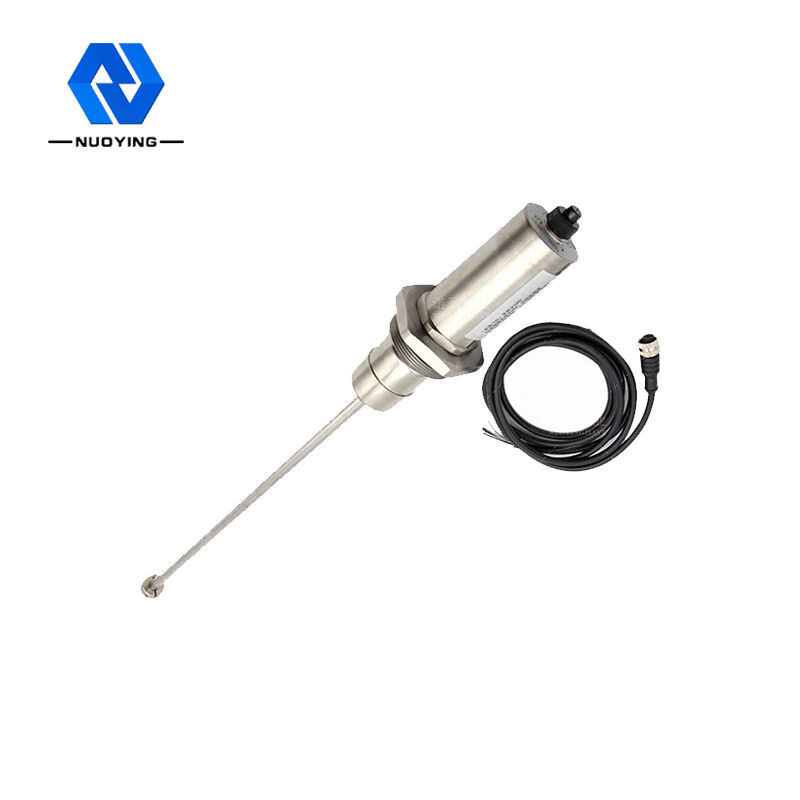

The product is mainly composed of measuring rod, electronic warehouse and non-contact floating ball set on the measuring rod. A magnetostrictive wire (waveguide wire) is installed in the measuring rod. The measuring rod is made of a non-magnetic stainless steel tube, which protects the waveguide wire very well.
Technical parameter of Magnetostrictive Level Gauge
| Typical application | Liquid, interface measurement |
| Product model | NYCZ500 |
| Antenna form | Cable, rod |
| Antenna material | 304, 316 |
| Measuring range | 0-50~5000mm(cable:25m) |
| Measuring accuracy | ±0.5mm |
| Power supply | 24VDC(two wire/four wire),220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Working current | 4... 20mA |
| Load characteristics | When the current output, the maximum load resistance is 600Ω; Voltage output, the maximum load resistance of 2mA |
| Process temperature | -40~+200°C |
| Response time | 0.2~5ms |
| Process pressure | -0.1~10.0MPa |
| Process connection | Thread, bracket, flange (optional) |
| Resolution | ±1mm |
| Protection class | IP 65, IP 67, IP 68(optional) |
| Explosion-proof grade | ExiaIICT6Ga,ExdIICT6Gb (see the certificate) |
※Note:The product can be customized according to the specific requirements of users.
