Product Details:
|
| Product Name: | PTFE Magnetostrictive Level Gauge | Material: | Stainless Steel，PTFE，304，etc |
|---|---|---|---|
| Type: | Cable Rod | Current: | 4-20mA |
| Measuring Range: | Long | Temperature: | High 200 °C |
| Medium: | Interface | Accuracy: | ±1mm |
| High Light: | PTFE Magnetostrictive Level Sensor,40bar Cable Rod Magnetic Level Transmitter,Cable Rod Magnetostrictive Level Meter |
||

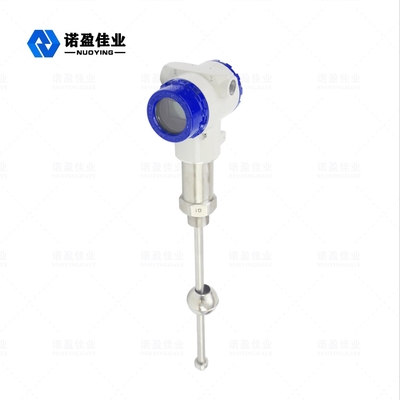

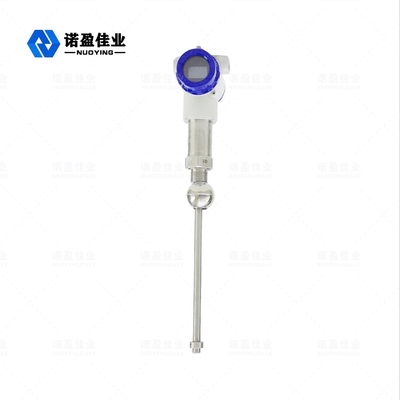

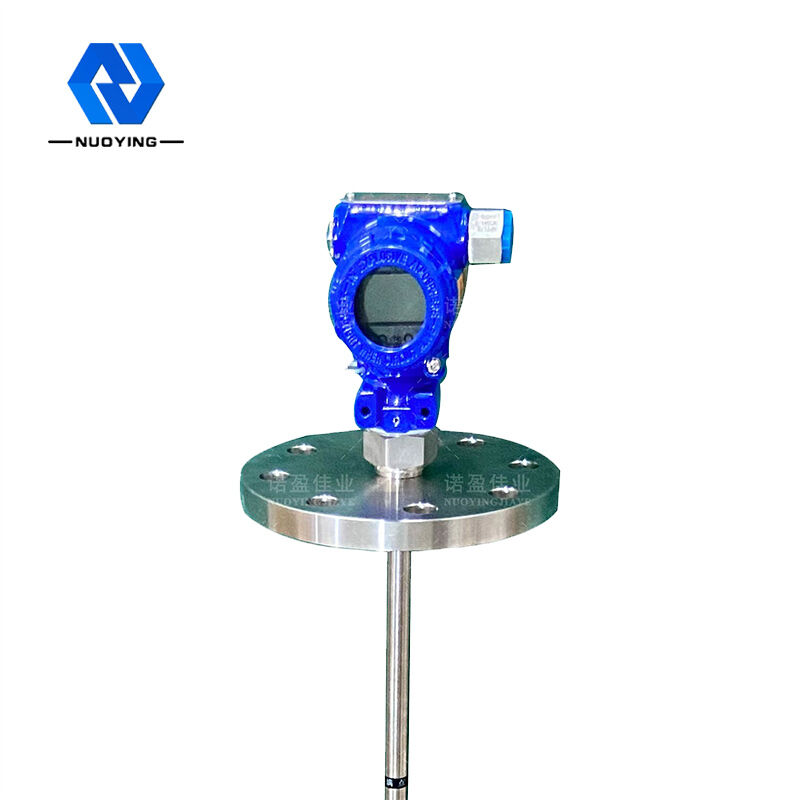

PTFE Magnetostrictive Level Gauge Cable Rod Type 40 Bar
Technical parameter of Magnetostrictive Level Gauge
| Typical application | Liquid, interface measurement |
| Product model | NYCZ500 |
| Antenna form | Cable, rod |
| Antenna material | 304, 316 |
| Measuring range | 0-50~5000mm(cable:25m) |
| Measuring accuracy | ±0.5mm |
| Power supply | 24VDC(two wire/four wire),220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Working current | 4... 20mA |
| Load characteristics | When the current output, the maximum load resistance is 600Ω; Voltage output, the maximum load resistance of 2mA |
| Process temperature | -40~+200°C |
| Response time | 0.2~5ms |
| Process pressure | -0.1~10.0MPa |
| Process connection | Thread, bracket, flange (optional) |
| Resolution | ±1mm |
| Protection class | IP 65, IP 67, IP 68(optional) |
| Explosion-proof grade | ExiaIICT6Ga,ExdIICT6Gb (see the certificate) |
Note:The product can be customized according to the specific requirements of users.
