Product Details:
|
| Product Model: | NYRD900 | Antenna Material: | PTFE，304+PTFE |
|---|---|---|---|
| Measuring Range: | 0.08~150m | Measurement Accuracy: | 0.05%~0.1%F.S |
| Power Supply: | 24VDC，220V AC | Signal Output: | 4-20mA/HART/RS485/Modbus |
| Process Temperature: | -40~+130°C, -40~+260°C (≥260°C Can Be Customized) | Process Pressure: | -0.1~2.0MPa |
| High Light: | Solid Powder Radar Level Meter,Liquid Level Meter 80G,FMCW Radar Level Transmitter |
||

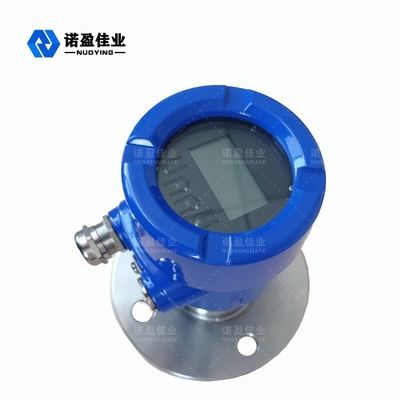

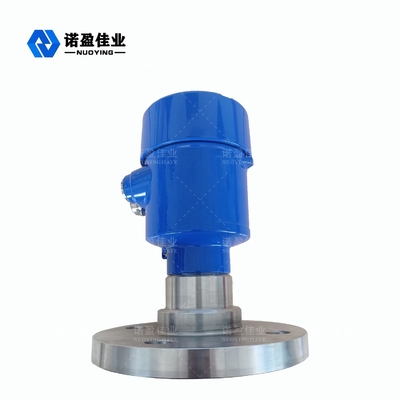

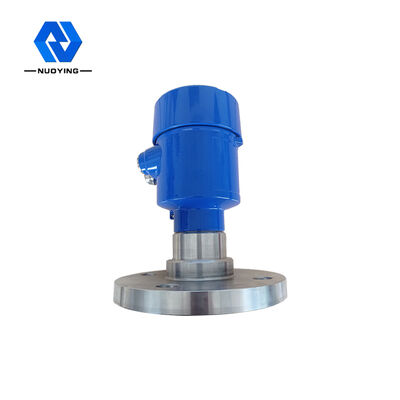

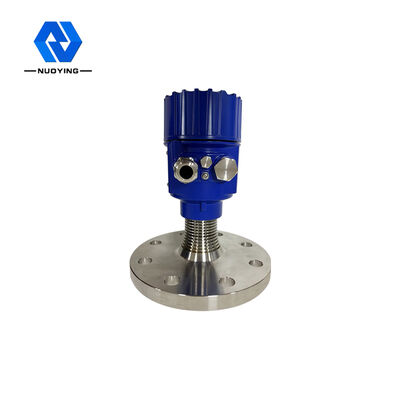

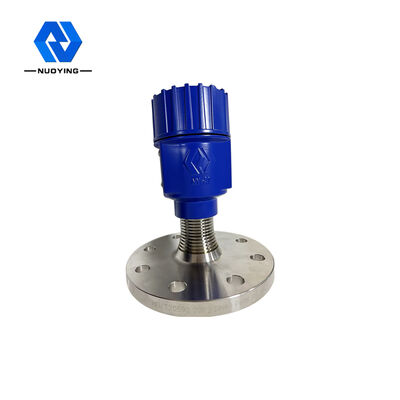

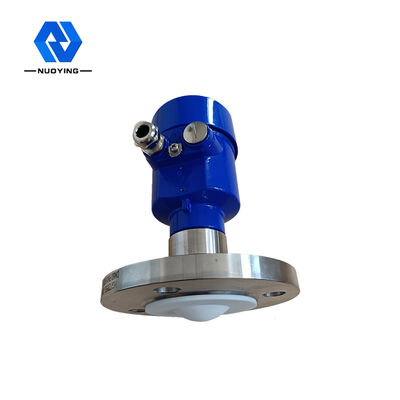

Liquid Level Meter Solid Powder Measure 80GHz Radar Level Mete FMCW Radar Products
Liquid Level Meter Liquid Solid Powder Measure FMCW radar products Description
Millimeter wave electromagnetic waves:Electromagnetic waves in the frequency domain of 30-300 GHz (1-10mm wavelength) are usually referred to as millimeter waves, it is located in the wavelength range where microwaves and far-infrared waves overlap, Therefore, it has the characteristics of two kinds of spectrum. The 76-81GHz band is the least understood and exploited area.
Liquid Level Meter Liquid Solid Powder Measure FMCW radar products Working Principle
NYRD900 FMCW radar products (also known as millimeter wave radar), due to the higher frequency of millimeter wave than Ku-band radar, it has important applications in long-distance target detection, strong smoke and dust environment, long-distance imaging, multi-spectral imaging, etc., and can detect targets smaller than microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.
Liquid Level Meter Liquid Solid Powder Measure FMCW Radar Products Design Features
◎Coherence: Coherence is produced by coherent current-driven dipole oscillations, or by nonlinear difference-frequency effects of coherent laser pulses.
◎Low energy: The energy of millimeter wave photons is only a few millielectron volts, and there is no phenomenon of X-ray ionization and destruction of the substance to be detected, so it is not easy to destroy the substance to be detected.
◎Strong penetrability: It has strong penetrating power for non-polar substances. Many non-metallic non-polar materials absorb less radiation in this band. Therefore, they can be used to detect the internal structure of materials. For example, ceramics, cardboard, plastic products, foam, etc. , are transparent to electromagnetic radiation in this band, and can also be used for security detection in airports and stations, such as detection of machinery, explosives and drugs, or for circuit board welding detection.
◎Easily absorbed by polar molecules: This band has less scattering in non-uniform materials, and can detect and measure water vapor content. It is also possible to study the composition of substances or perform quality control by analyzing their characteristic spectra.
Liquid Level Meter Liquid Solid Powder Measure FMCW radar products Technical Parameter
| Product model | NYRD900 |
| Transmit frequency | 76GHz~81GHz, FM sweep frequency width 5GHz |

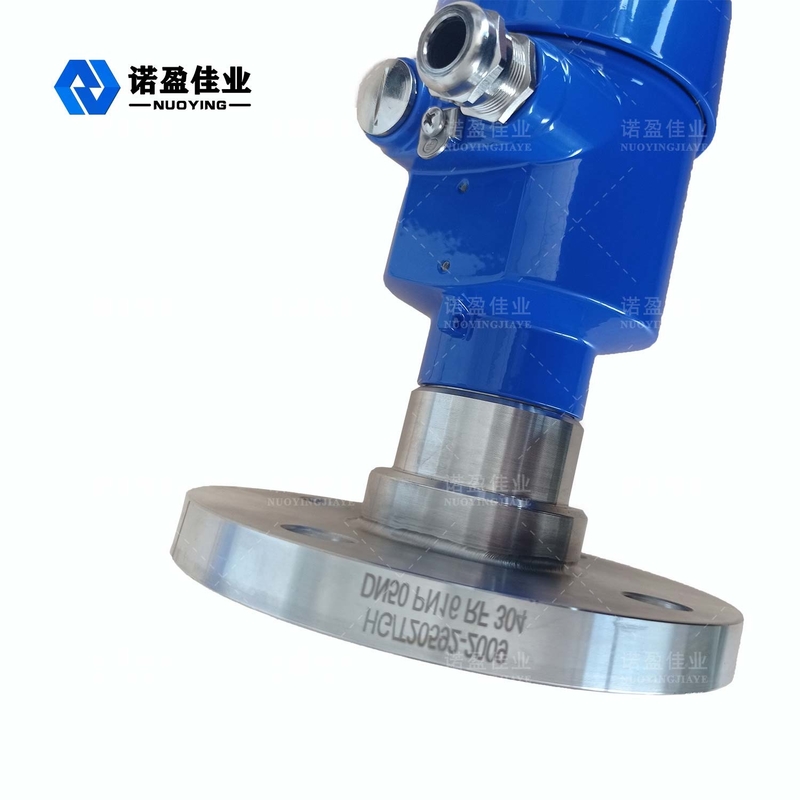

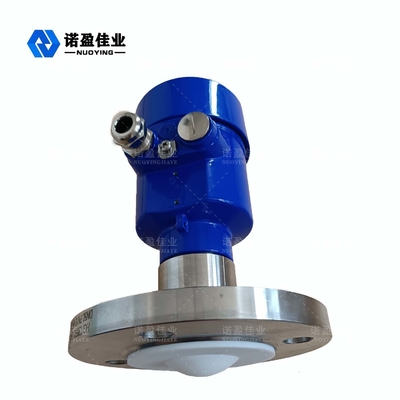

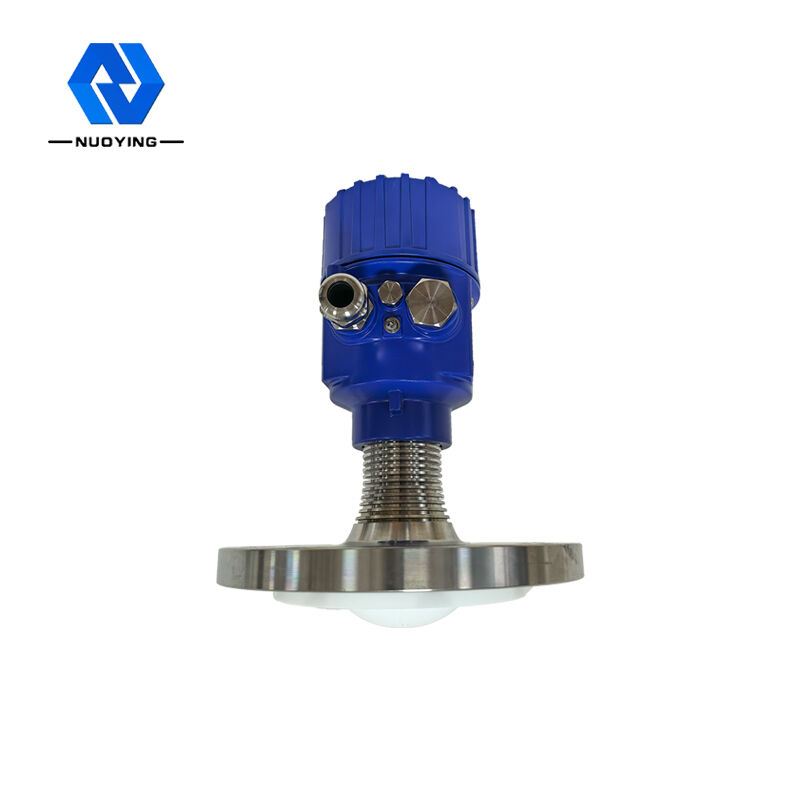

| Antenna form | Lens antenna, anti-corrosion type lens antenna |
| Antenna material | PTFE,304+PTFE |
| Measuring range | 0.08~150m |
| Measurement accuracy | 0.05%~0.1%F.S |
| Power supply | 24VDC,220V AC |
| Signal output | 4…20mA/HART/RS485/Modbus… |
| Process temperature | -40~+130°C( can be customized) |
| Process pressure | -0.1~2.0MPa |

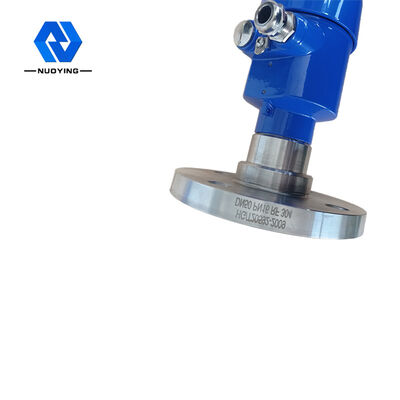

| Process connection | Thread,stents,flange,sanitary clamp (optional) |
