Product Details:
|
| Typical Application: | Liquids, Dusts, Particles, Solids And Other Media | Probe Form: | Rod |
|---|---|---|---|
| Probe Material: | 304+PTFE(optional) | Level Of Sensitivity : | 0.5pf~750pf |
| Protection Class: | IP67 | Explosion Proof Grade: | Exia II CT6 Ga |
| Process Temperature: | -40℃~+130℃ | Process Pressure: | <2.0MPa |
| High Light: | Liquid RF Admittance Level Switch,Chemical Microwave Level Switch,RF Type Admittance Level Sensor |
||

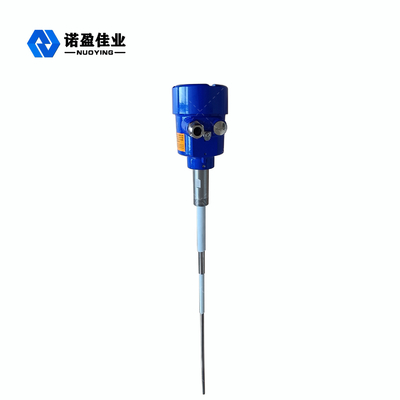

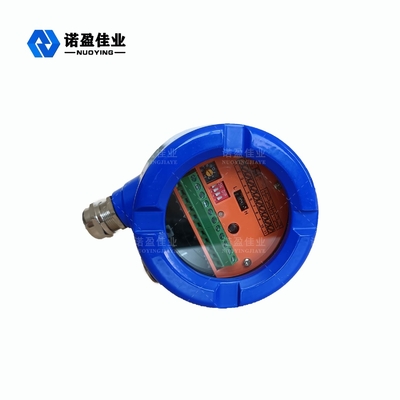

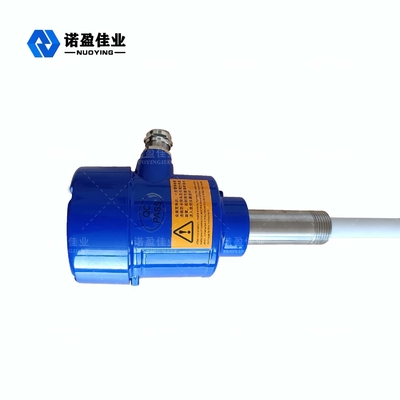

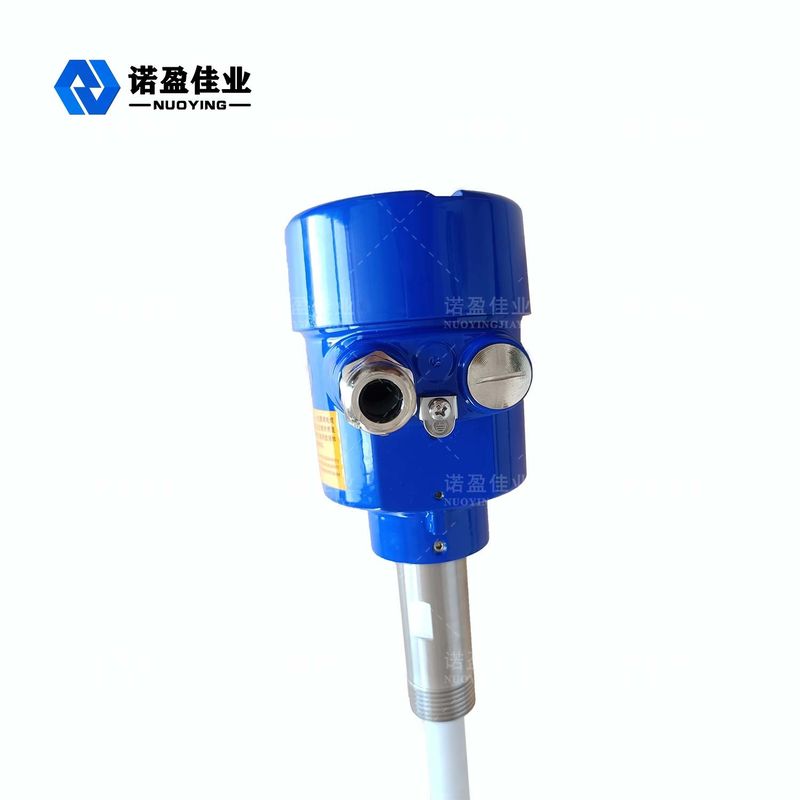

Material Liquid Level NYSP-L861 RF Admittance Level Switch For Chemical Materials
NYSP-L861 RF Admittance Level Switch
The working principle of the radio frequency admittance level switch is based on radio frequency (RF) capacitive technology. A radio frequency is applied to the probe and, through continuous analysis, the effects caused by the surrounding environment are determined. Since all materials have a permittivity and their conductivity is different from that of air, the overall impedance reflected by the small capacitance shift changes when the probe is in contact with the material. Because the energized probe and the vessel wall form the two polar plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, when the air (whose dielectric constant is 1.0) is replaced by any other material (the dielectric constant > 1), The capacitive effect is enhanced. Thus changing the impedance of the application. That is, the change of capacitance value causes the change of impedance. This effect is measured by the circuit and compared to a reference established by the sensitivity setting (circuit).
NYSP-L861 RF Admittance Level Switch Design Features
1.Strong versatility: It can be applied to the measurement of various conductive and non-conductive media, such as liquids, viscous substances, particles, powders, and fly ash.
2.Anti-adhesion: The patented anti-adhesion circuit can eliminate false signals caused by material adhesion.
3.Detachable probe: There is no cable connection between the controller and the probe. The controller can be removed and replaced at any time for maintenance without affecting the incoming and outgoing materials.
4.High and low temperature resistance: suitable for working environment from -184°C to 280°C, and ceramic probes for higher temperature are also available.
5.Output form: double-pole double-throw relay signal output, at the same time there is a status light to display the output status, and a delay function of 0 to 30 seconds.
6.Intelligent diagnosis: After the power is turned on, the instrument circuit automatically detects whether the working state is normal.
NYSP-L861 RF Admittance Level Switch Technical Parameter
| Typical application | High and low level alarms for liquids, dusts, particles, solids and other media |
| Products model | NYSP-L861 |
| Probe material | 304+PTFE(optional) |
| Probe length | 500mm(The length can be customized according to the site conditions) |
| Process temperature | -40℃~+130℃ |
| Process pressure | <2.0MPa |
| Power supply | 24VDC,220VAC(optional) |
| Time delay | 0~30s adjustable |
| Procedure connection | Thread/flange(optional) |
| Protection level | IP67 |
| Explosion proof grade | Exia II CT6 Ga |
Note: Products can be customized according to the specific requirement of users!
