High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle

High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle
High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle

Large Image :  High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle

Product Details:
Place of Origin: Xi'an,Shannxi,China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NYZX(High Temperature Type)
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $130~$360/pcs
Packaging Details: Carton, 80cm x 17cm x 24cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle

Description
Typical Application: Powder, Small Particle Level Control Probe Material: 304(optional)
Probe Length: 100mm(The Length Can Be Customized According To The Site Conditions) Power Supply: 24VDC,220VAC(optional)
Process Pressure: Normal Pressure, 0~ 1.6MPa Process Temperature: -40℃~+130℃ (> +130 °C Customizable)
Medium Density: ≥0.4g/cm3 Moment: 10kg*m (1N*m)
High Light:

Rotary Paddle Level Sensor

,

Powder Particle Rotary Level Switch

,

Rotary Paddle Switch NYZX

High Temperature Type NYZX Rotary Paddle Level Switch For Powder Small Particle





NYZX(High Temperature Type)Rotary Paddle Level Switch Working Principle



NYZX series resistance rotary material level switch uses a water magnetic motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box, and the detection device is outward. A switch signal is output, and the power is cut off to stop the blade from rotating. When the material level drops, the blade resistance disappears, and the detection device relies on the tension of the spring to return to the original state. Adjust the spring tension for different material specific gravity. When the specific gravity is large, adjust the spring tension to the strongest or strongest, and vice versa weak.

                                                                                                                                                                                                                              NYZX(High Temperature Type)Rotary Paddle Level Switch Design Features



1.The unique oil seal design prevents dust from infiltrating along the shaft.

2.The motor performance of the imported anti-rotation switch is reliable, and the double sealed bearings can ensure continuous operation for a long time.

3.Simple structure and convenient installation.

4.Stable and reliable, and the torque can be adjusted.

5.A variety of probe forms can be used in different occasions.



NYZX(High Temperature Type)Rotary Paddle Level Switch Technical Parameter



Typical application Powder, small particle level control
Products model NYZX(High Temperature Type)
Probe material 304(optional)
Probe length 100mm(The length can be customized according to the site conditions)
Process temperature -40℃~+130℃ (> +130 °C customizable)
Process pressure Normal pressure, 0~ 1.6MPa
Power supply 24VDC,220VAC(optional)
Contact capacity 250V 5A (SPDT)

Medium density

≥0.4g/cm3
Moment 10kg*m (1N*m)
Procedure connection Thread/flange(optional)
Protection level IP67
Explosion proof grade Exia II CT6



Note: Products can be customized according to the specific requirement of users!

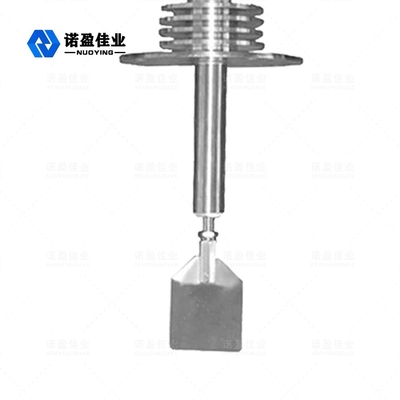

                                                                                                  High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle 0

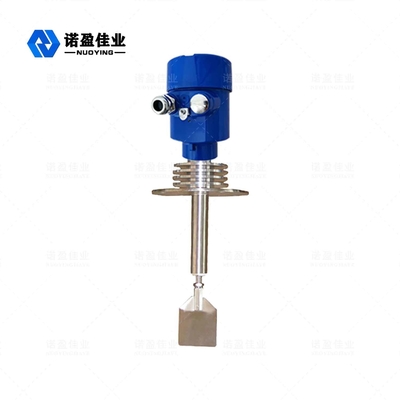

High Temperature Type NYZX Rotary Paddle Level Switch For Powder Particle 1



NYZX Rotary Paddle Level Switch Application Field



NYZX series resistance rotary material level switch is a field control equipment used to detect the level of solid materials (powder, granules), and is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.

NYZX series resistance rotary material level switch are installed in silos, boxes, cellars and shafts, which can be used to control filling height and fill, empty, and protect against overloading. Widely used in feed, silica, stone, globular particles, sawdust, calcium powder, rubber, metal, malt, limestone, grain, foundry sand, sawdust, NYZX series resistive material level switch, with its perfect combination of durability and sensitivity, has been praised by users all the time, and stands out among many manufacturers of resistive rotary switch.
