Product Details:
|
Typical Application: | Liquid, Dust, Solid | Product Model: | NYWBUK |
---|---|---|---|
Measuring Range: | 120m | Power Supply: | 24VDC,220VAC |
Ambient Temperature: | - 40 ~ + 80 ℃ | Process Temperature: | - 40 ~ + 1200 ℃ |
Process Pressure: | -0.1- 2.5MPa | Process Connection: | Thread (optional) |
Highlight: | Liquid Water Tank Indicator Transmitter,Liquid Microwave Level Switch,Ultrasonic Microwave Level Switch |
Ultrasonic liquid Water Tank Indicator Transmitter Meter Tank Sensor Microwave Level Switch
Microwave Level Switch Working Principle

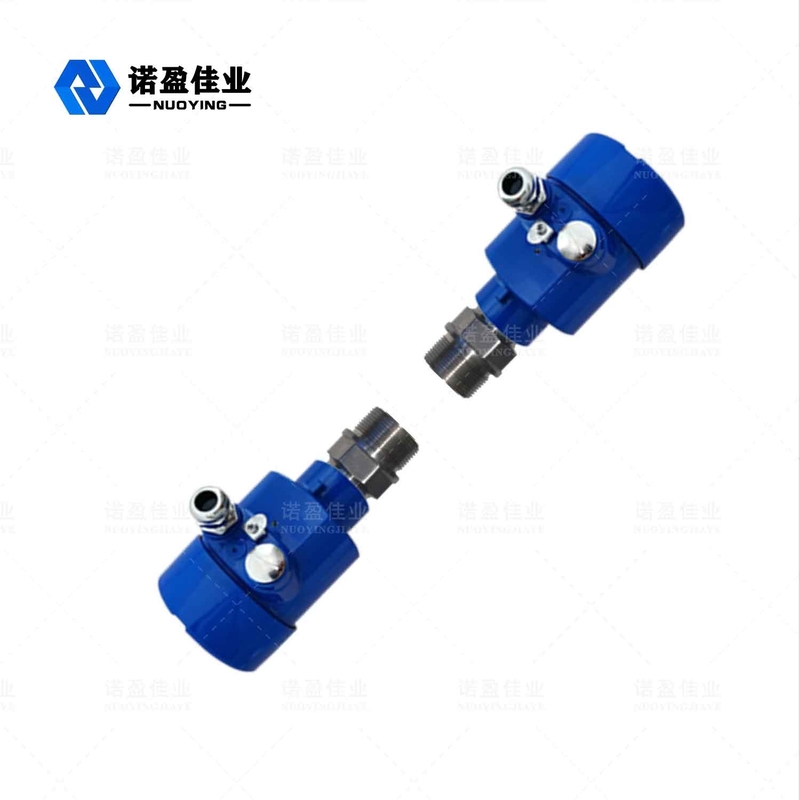

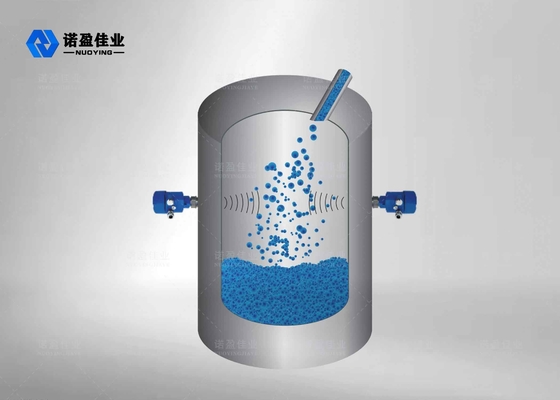

NYWBUK series microwave level switch is a solid level switch designed with microwave extremely narrow pulse detection principle, which is designed by microwave pair transmission and reception. The microwave level switch is a pair of complete sets of instruments. One end is the transmitting end, which is responsible for the transmission of microwave signals; the other end is the receiving end, which is responsible for the collection and output of microwave signals. The instruments are installed in pairs at the position to be monitored. When there is no material blockage at the monitoring position, the receiving end outputs a "no material" signal;When material blocking occurs at the monitoring position, the receiving end outputs "blocking material" signal. The state of the output signal can be set to high alarm and low alarm on the spot.
Microwave Level Switch Design Feature
◎High stability, strong anti-interference ability, intelligent adaptive power supply design
◎The modular design concept is adopted, and it is equipped with function indicator lights, which can easily and concisely realize the setting and maintenance of the instrument in the field
◎Simple structure and convenient installation
Microwave Level Switch Technical Parameter
Typical application | Liquid, dust, solid, product model for special requirements that cannot be drilled, etc. |
Product model | NYWBUK |
Measuring range | 120m |
Power supply | 24VDC,220VAC |
Ambient temperature | - 40 ~ + 80 ℃ |
Process temperature | - 40 ~ + 1200 ℃ |
Process pressure | -0.1- 2.5MPa |
Process connection | Thread (optional) |
Protection grade | IP67 |
Explosion-proof grade | ExiaIICT6Ga (see certificate for details) |
