Product Details:
|
| Typical Application: | Various Corrosive Liquids | Antenna Material: | PTFE |
|---|---|---|---|
| Measuring Range: | 10m | Process Connection: | Thread, Flange (optional) |
| Process Temperature: | -40~+130℃ | Process Pressure: | -0.1~0.3MPa |
| Power Supply: | 24VDC(Two Lines, Four Lines) | Accuracy: | ＜0.1%F.S |
| High Light: | Radar Liquid Level Meter,Rod Type Radar Level Transmitter,Radar Liquid Level Sensor 26GHz |
||

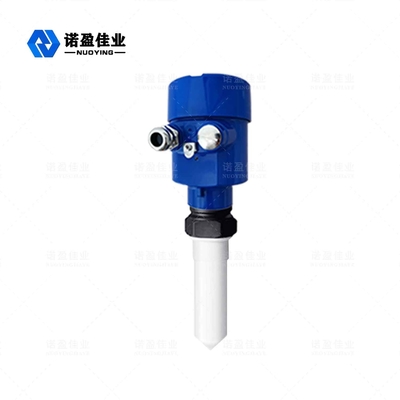

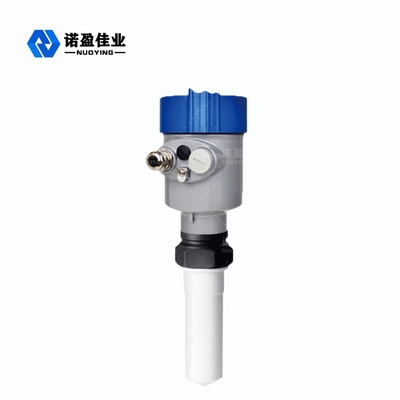

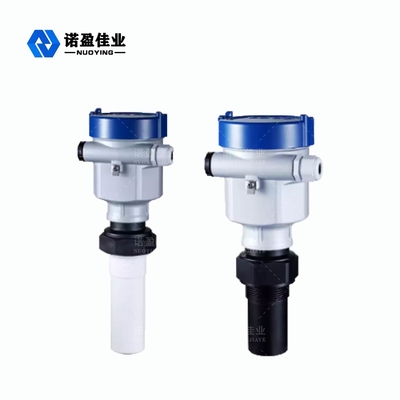

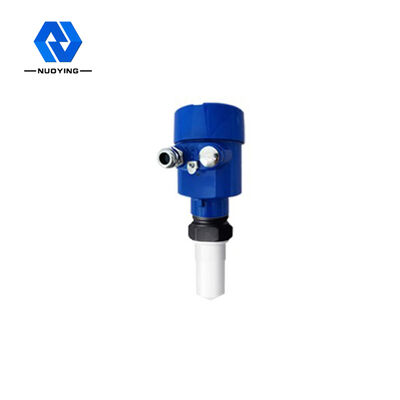

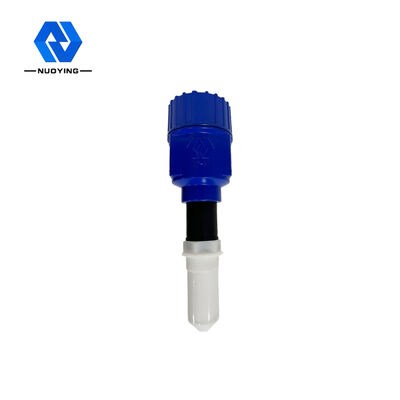

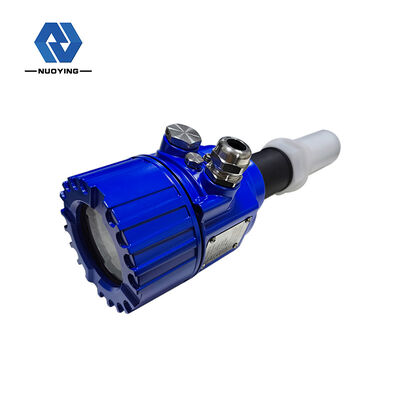

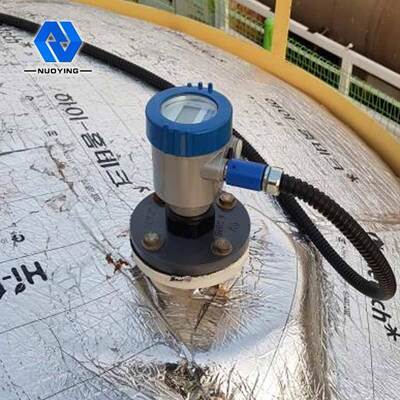

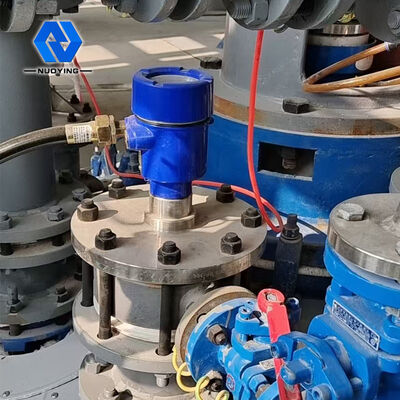

NYRD805 Rod Type Liquid Radar Level Meter With PTFE Antenna 26GHz
26GHz NYRD805 Radar Level Meter Working Principle
Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The antenna is further optimized, and the new fast microprocessor can carry out higher rate signal analysis and processing, making the instrument can be used in reaction kettle, solid bin and some complex measurement conditions.
The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
26GHz NYRD805 Radar Level Meter Technical Parameters
| Typical application | Liquid with simple process |
| Product model | NYRD801 |
| Antenna material | PTFE |
| Measuring range | 10m |
| Process connection | Thread, flange (optional) |
| Process temperature | -40~+130℃ |
| Process pressure | -0.1~0.3MPa |
| Power supply | 24VDC(Two lines, four lines) |
| Accuracy | ＜0.1%F.S |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
Note: Products can be customized according to the specific requirements of users.
26GHz NYRD805 Radar Level Meter Design Feature
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
26GHz NYRD805 Radar Level Meter Application Field
1.Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2.Oilfield: Crude oil storage tanks, refined oil storage tanks, three-phase separators, settling tanks, sewage tanks, drilling mud tanks, etc.
3.Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
4.Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
5.Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
6.Foodstuffs: Juice factory, milk factory, raw sugar storage tank, tomato paste storage tank, brewery storage tank, etc.
7.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
8.Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
9.Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
10.Other: Quarry, coal mine, environmental protection, shipbuilding and other industries.
