Product Details:
|
| Typical Application: | Power And Small Particle Level Control | Probe Material: | 304 (optional) |
|---|---|---|---|
| Probe Length: | 100mm | Supply Power: | 24VDC, 220VAC |
| Process Pressure: | Ordinary Pressure | Process Temperature: | -40~+80℃ |
| Process Connection: | Thread, Flange (optional) | Electrocution Capacity: | 250V 8A (SPDT Single Blade Double Throw) |
| High Light: | Resistance Rotary Level Switch,Spin Paddle Level Switch,Solid Rotating Paddle Level Switch |
||

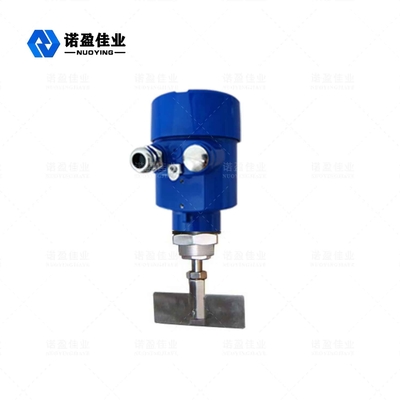

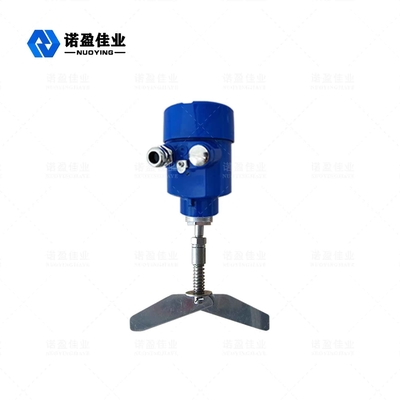

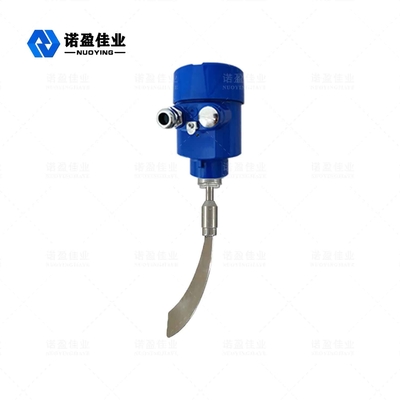

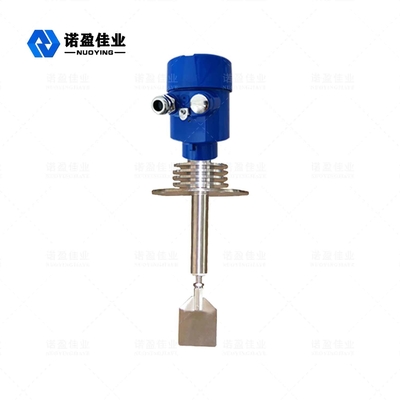

Ordinary Pressure Solid NYZX Resistance Spin Level Switch
NYZX Resistance Spin Level Switch Working Principle
NYRD series resistance spin level switch uses permanent magnet motor to drive the blades rotation, when the detected material rises to the blade position, the blade rotation is blocked, the resistance will be transmitted to the detection device in the junction box, the detection device will output a switch signal to the outside, and cut off the power to make the blade stop rotating. When the material level drops, the resistance of the leaf disappears, and the detecting device will return to the original state according to the tension of the spring, adjusting the spring tension for different material specific gravity, adjusting the spring tension to strong or strongest when the ratio is big, and adjusting to weak or weakest on the contrary.
NYZX series resistive level switch is used to detect the height of solid material (powder, granule) level field control equipment, widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.
NYZX Resistance Spin Level Switch Technical Parameters
| Typical application | Power and small particle level control |
| Product model | NYZX |
| Probe material | 304 ( optional) |
| Probe length | 100mm |
| Process connection | Thread, flange (optional) |
| Process temperature | -40~+80℃(≥80℃ can be customized) |
| Process pressure | Ordinary pressure |
| Power supply | 24VDC, 220VAC |
| Medium density | ≥0.4g/m³ |
| Electrocution capacity | 250V 8A (SPDT single blade double throw) |
| Torque | 10kg·m(1N·m) |
| Protection level | IP67 |
| Explosion-proof grade | Exd II BT4 |
| Insulation resistance | ≥100MΩ(500VDC) |
Note: Products can be customized according to the specific requirements of users.
NYZX Resistance Spin Level Switch Design Feature
1. The unique oil seal design prevents dust from penetrating along the shaft.
2. The motor performance of the imported rotary switch is reliable, and the double sealed bearing can guarantee long time continuous operation.
3. Simple structure, easy to install.
4. Stable and reliable, and the torque size can be adjusted.

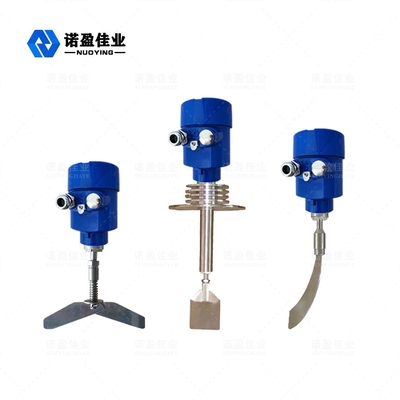

5. A variety of probe forms can be applied to different occasions.
NYZX Resistance Spin Level Switch Application Field
NYZX series resistive level switches are installed in silos, cabinets, cellars, shafts, and can be applied to control the height of filling level as well as to control filling and emptying, and can also play a protective role to prevent overfilling. It is widely used in feed, silica, stone, spherical granules, wood chips, calcium powder, rubber, metal, malt, limestone, grain, foundry sand, sawdust, coal powder, etc. The NYZX series resistive level switch is the perfect combination of durability and sensitivity.
With the perfect combination of durability and sensitivity, the NYZX series of rotary material level switch has won the praise of users and stands out among many manufacturers of rotary switches.
