Product Details:
|
| Products Model: | NYRD900 | Transmit Frequency: | 76GHz~81GHz,FM Sweep Frequency Width 5 GHz |
|---|---|---|---|
| Measuring Range: | 0.08~150m | Antenna Form: | Lens Antenna, Anti-corrosion Lens Antenna |
| Measurement Accuracy: | 0.05%~0.1%F.S | Procedure Connection: | Thread/flange/brackets, Sanitary Clamps(optional) |
| Process Pressure: | -0.1~2.0MPa | Process Temperature: | Thread/flange/brackets, Sanitary Clamps(optional) |
| High Light: | Hygiene Grade Radar Level Transmitter,Tank Radar Level Transmitter 80GHz,Radar Water Tank Level Meter |
||

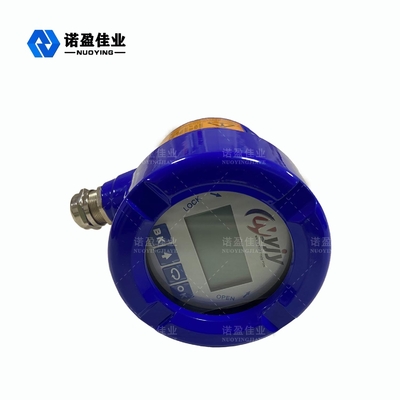

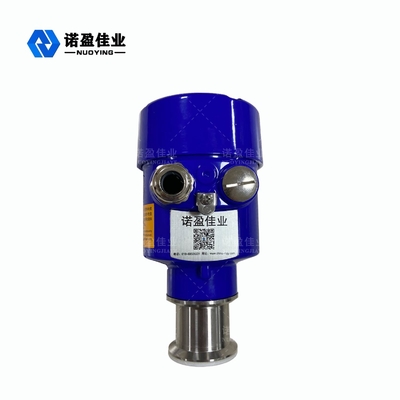

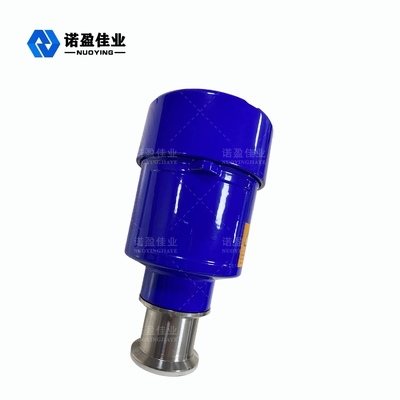

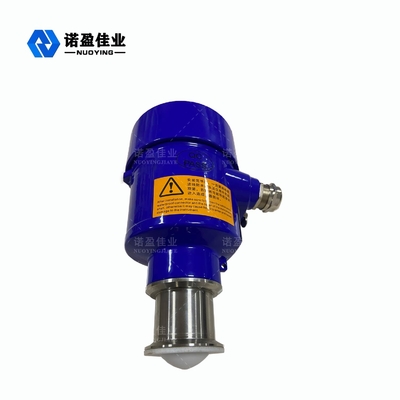

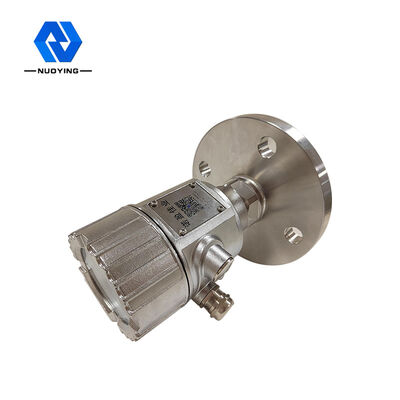

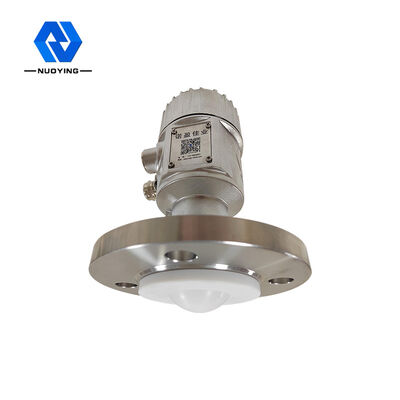

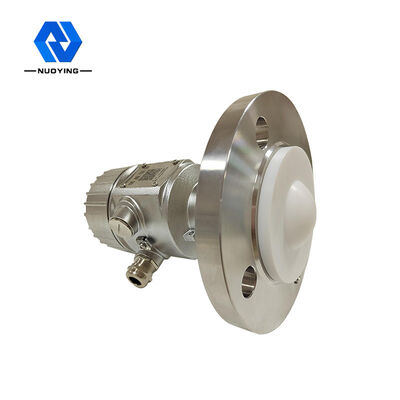

High-Hygiene Grade NYRD900 80GHz Radar Level Transmitter High-Precision
NYRD900 80GHz Radar Level Transmitter Operating Principle
The NYRD900 FM FMCW radar product (also known as the millimeter-wave radar) , which uses a millimeter-wave band with a higher frequency than the Ku band radar, provides long-range imaging in the presence of long-range target detection, strong smoke and dust conditions, multi-spectral imaging has important applications, and can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger security.

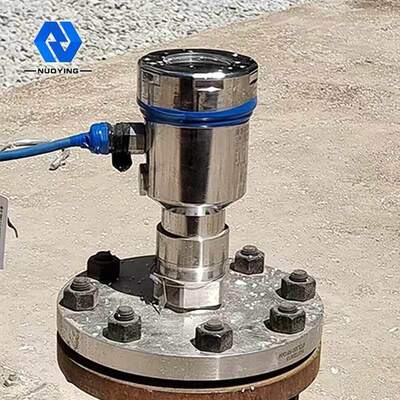

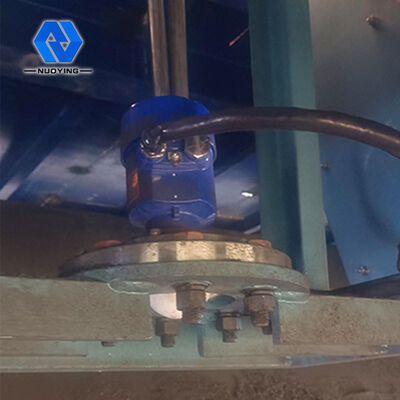

NYRD900 80GHz Radar Level Transmitter Typical Applications
1. The emittance angle of electromagnetic wave is less than 3 ° , which is suitable for the measurement of narrow space or guided wave tube.
2. Applicable to super large tank (150m) and small tank (blind area small).
3. High-precision, high-hygiene grade of the occasion measurement .
4. Complex Process Conditions (mixing, heating Rod, ladder, floating roof, strong dust, strong steam, etc.) occasions.
NYRD900 80GHz Radar Level Transmitter Technical Parameter
| Products model | NYRD900 |
| Transmit frequency |
76GHz~81GHz,FM sweep frequency width 5 GHz |

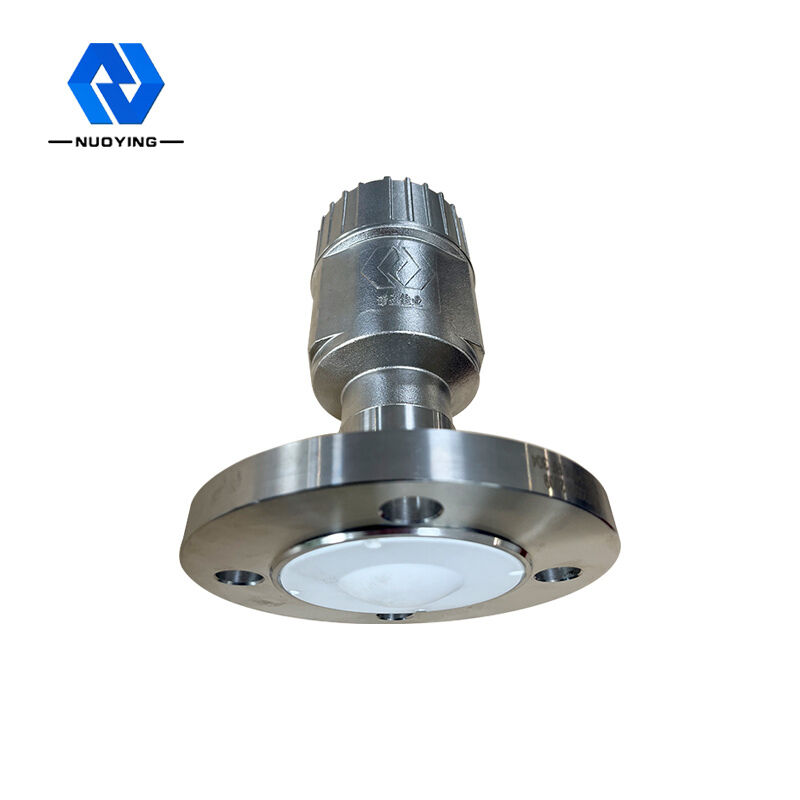

| Antenna form | Lens antenna, anti-corrosion lens antenna |
| Antenna material | PTFE,304+PTFE(optional) |
| Measuring range | 0.08~150m |
| Measurement accuracy | 0.05%~0.1%F.S |
| Power supply | 24VDC,220VAC(optional) |
| Signal output | 4...20mA/HART |
| Process temperature | -40~+130℃,-40~260℃(≥260℃ customizable) |
| Process pressure | -0.1~2.0MPa |
| Procedure connection | Thread/flange/brackets, sanitary clamps(optional) |
| Protection level | IP67 |
| Explosion proof grade | Exia II CT6 Ga |
Note: Products can be customized according to the specific requirement of users!
