|Thread, Flange (optional)
|Powder,Small Particle Level Control
|ExiaIICT6 (see Certificate For Details)
Paddle Level Limit Switch,
Rotary Level Limit Switch,

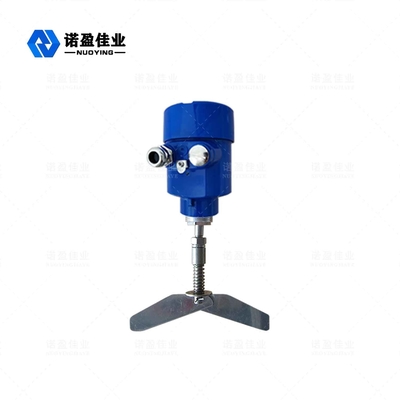

Cellars Controller Rotary Paddle Level Switch
Silos Boxes Cellars Controller Rotary Paddle Level Limit Switch

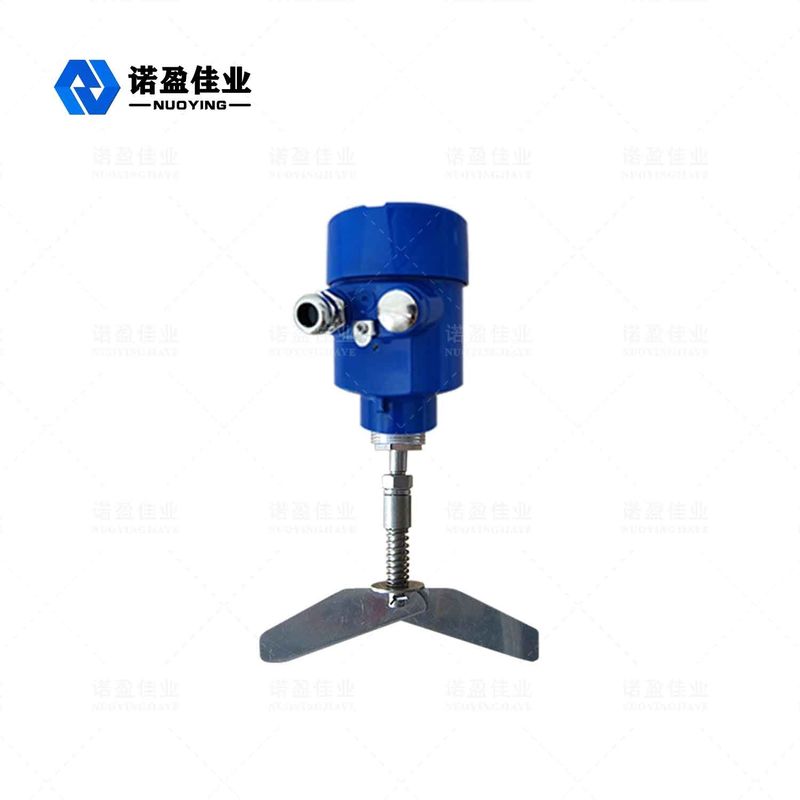

Rotary Paddle Level Switch Description
NYZX series resistance rotary material level switch is a field control equipment used to detect the level of solid materials (powder, granules), and is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.
Rotary Paddle Level Switch Working Principle
NYZX series resistance rotary material level switch uses a permanent magnet motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box, and the detection device outputs a switch signal to the outside, and cuts off the power to stop the blade from rotating. When the material level drops, the blade resistance disappears, and the detection device returns to the original state depending on the tension of the spring, Adjust the spring tension according to the specific gravity of different materials. When the specific gravity is large, adjust the spring tension to the strong or the strongest, otherwise, adjust the spring tension to the weak or the weakest.
Rotary Paddle Level Switch Design Feature
◎Unique oil seal design can prevent dust from infiltrating along the shaft;
◎The motor performance of the imported anti-rotation switch is reliable, and the double sealed bearings can ensure continuous operation for a long time;
◎Simple structure and convenient installation;
◎Stable and reliable, and the torque can be adjusted;

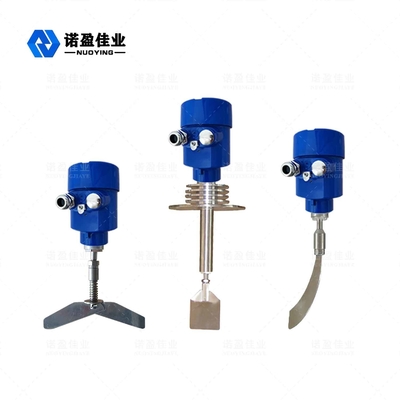

◎A variety of probe forms can be used in different occasions.
