Product Details:
|
| Measuring Range: | 0.05-150m | Power Supply: | 24VDC, 220VAC |
|---|---|---|---|
| Signal Output: | 4...20mA/HART/RS485/Modbus... | Process Pressure: | -0.1~2.0MPa |
| Process Connection: | Thread, Bracket, Flange, Sanitary Clamp (optional) | Process Temperature: | -40~+130℃，-40~+260℃（≥260℃ Can Be Customized） |
| Typical Application: | Occasions With Complex Process Conditions; High Precision And High Sanitary Level Measurement | ||
| High Light: | High Precision Liquid Radar Level Meter,20mA Radar Level Transmitter,80GHz Liquid Pressure Transmitter |
||

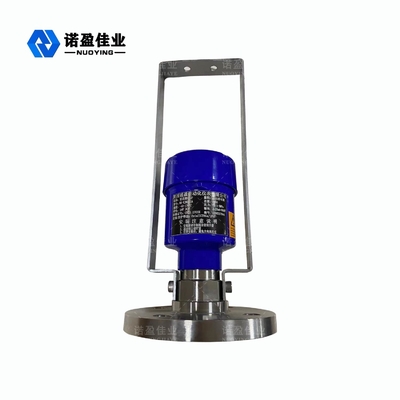

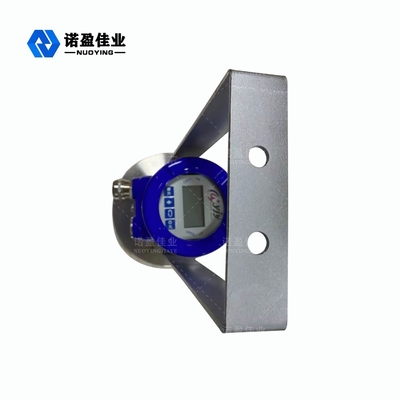

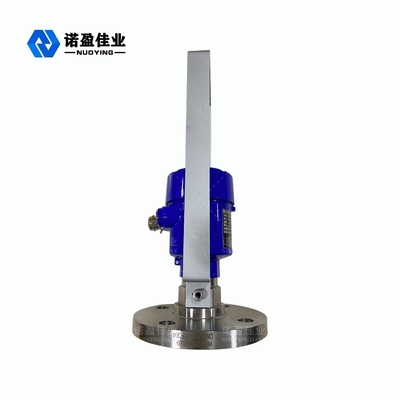

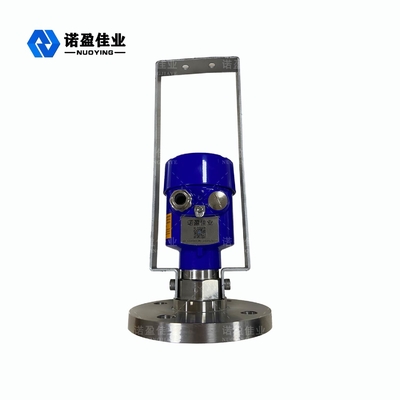

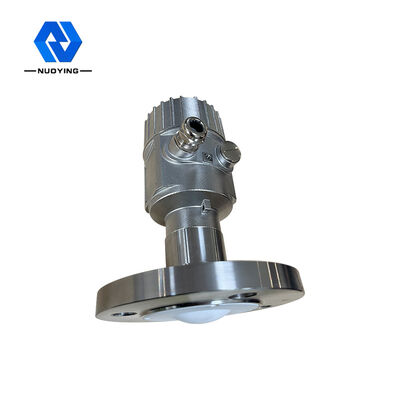

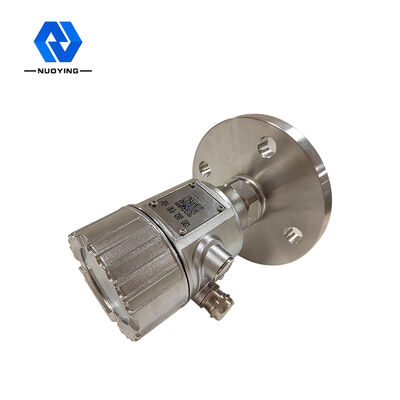

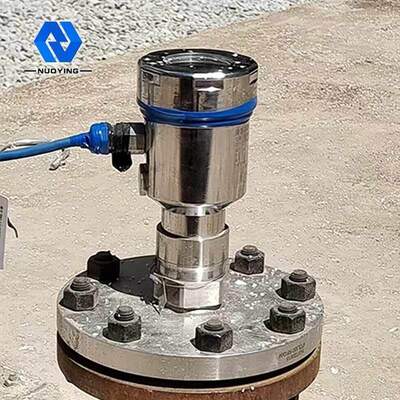

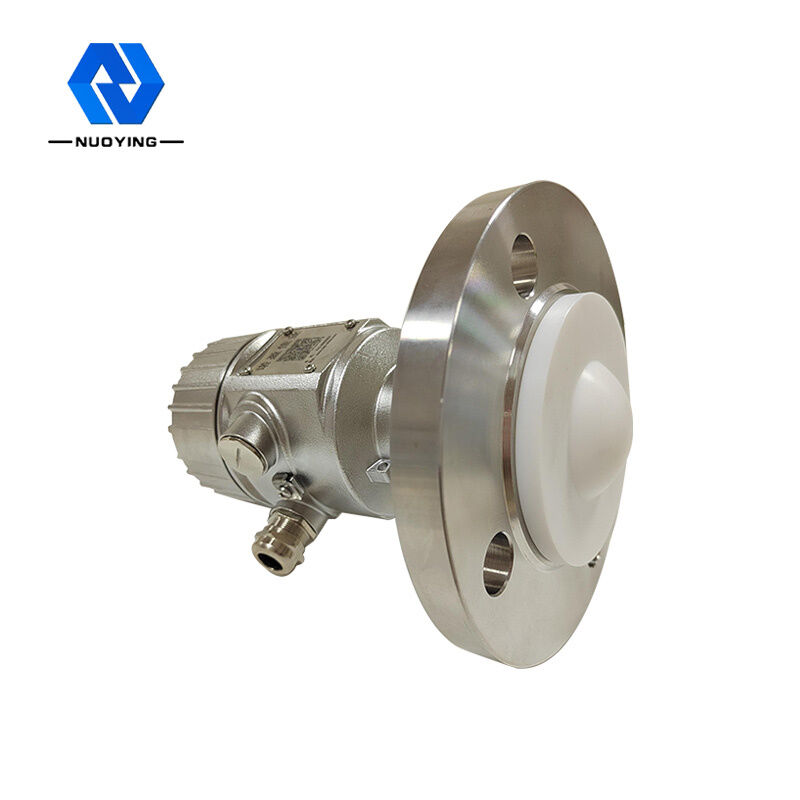

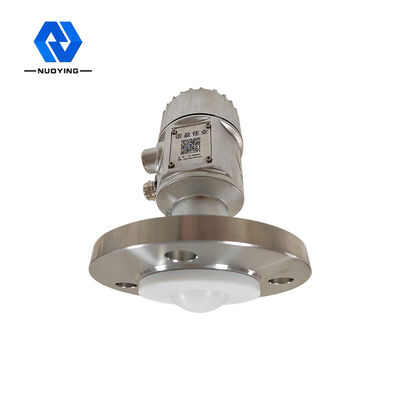

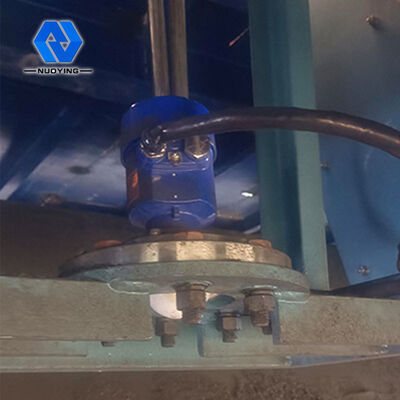

High Precision Liquid Radar Level Meter 80GHz NYRD900 4 - 20mA
80GHz NYRD900 Radar Level Meter Working Principle
Millimeter wave electromagnetic wave : The electromagnetic wave in the frequency domain of 30-300 GHz (wavelength 1-10mm) is usually called millimeter wave, it is located in the overlapping wavelength range of microwave and far infrared wave, so it has the characteristics of two kinds of spectrum. The 76-81 GHz band is the least understood and applied region up to now.
NYRD900 FMCW radar product (also known as centimeter-wave radar), due to the millimeter wave band with higher frequency than ku band radar is adopted, in remote target detection, strong smoke and dust environment, it has important application in remote imaging and multispectral imaging. And it can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger security.
80GHz NYRD900 Radar Level Meter Design Feature
1.Good transient performance:Based on self-developed COMS millimeter wave RF chip. It is independent research and development, and has independent software, independent chip.
2.Small beam angle, small antenna size and easy installation: the smaller the beam angle, the smaller the influence on the measured project, which greatly improves the measurement reliability and accuracy.
3.Low energy: Not easy to destroy the substance to be tested.
4.Large measuring range and small blind area:The good results can also be obtained for small can measurement.
5.Strong penetrability: It can be used to detect the internal structure of material.
80GHz NYRD900 Radar Level Meter Technical Parameters
| Typical application |
1.The electromagnetic wave emission Angle is less than 3 degrees, suitable for narrow space or waveguide tube measurement; 2.Suitable for large tanks (150m) and small tanks (small blind area); 3.High precision and high sanitary level measurement; 4.Occasions with complex process conditions (mixing, heating rod, ladder, floating roof, strong dust, strong steam, etc.) |
| Transmission frequency | 76Hz-81Hz, FM scanning frequency width 5GHz |

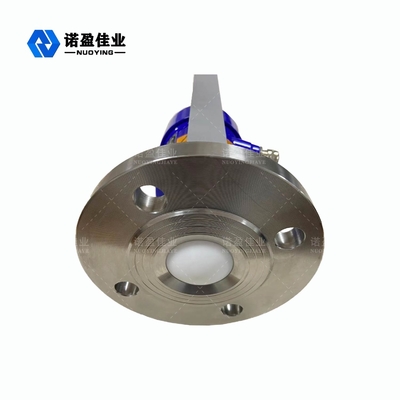

| Antenna form | Lens antenna, antiseptic lens antenna |
| Antenna material | PTFE, 304＋PTFE |
| Measuring range | 0.08-150m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC, 220VAC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+260℃(≥260℃ can be customized) |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread, bracket, flange, sanitary clamp (optional) |
| Protection level | IP65,IP67,IP68(optional) |
| Explosion-proof grade | Exia II CT6 Ga, Exd II CT6 Gb |
Note: Products can be customized according to the specific requirements of users.
