|Typical Application:||Liquid, Powder, Particle, Solid Level Control||Probe Material:||304, PTFE (optional)|
|Probe Length:||500mm (The Length Can Be Customized According To Site Conditions)||Supply Power:||24VDC, 220VAC (optional)|
|Process Temperature:||-40~+130℃||Process Pressure:||＜2.0MPa|
|Process Connection:||Thread, Flange (optional)||Signal Output:||DPDT Output, 5A 24VDC Or 5A 220VAC|
Rod Type RF Admittance Level Switch,
Normal Temperature RF Admittance Level Sensor,
RF Admittance Level Sensor 2.0MPaRF Admittance Level Sensor 2.0MPa

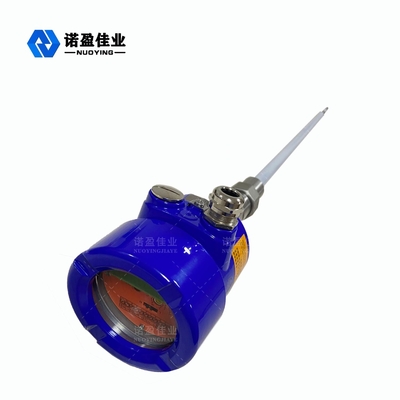

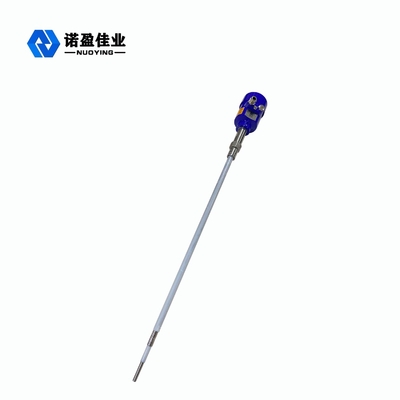

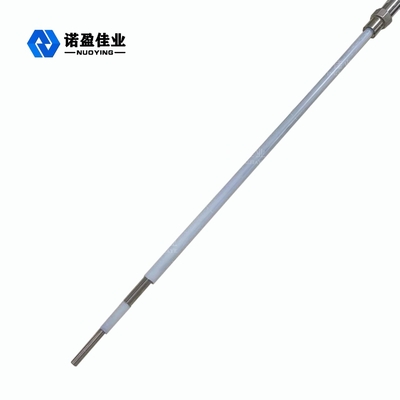

Normal Temperature Rod Type RF Admittance Level Switch NYSP - UK861
NYSP-UK861 RF Admittance Level Switch Working Principle
The principle of operation of radio frequency conductivity level switches is based on radio frequency (RF) capacitance technology. A radio frequency is applied to the probe and the influence caused by the surrounding environment is determined by continuous analysis. Because all materials have a dielectric constant and their conductivity are different from air, the total impedance reflected by the small capacitance shift changes when the probe is in contact with the material. Because the energized probe and the vessel wall constitute the two pole plates of the capacitor, the insulator of the probe and the surrounding air become dielectric materials, and the capacitive effect is enhanced when the air (whose dielectric constant is 1.0) is replaced by any other material (dielectric constant > 1). Thus, the impedance of the application is changed. That is, the change in capacitance value causes a change in impedance. This effect is measured by the circuit and then compared to the reference reference frame established by the sensitivity setting (circuit). The correct setting of the RF Admittance Level Switch sensitivity affects the correct change in sensor output. The probe's Nul1-KoTeTM circuitry allows the measurement circuit to ignore material buildup on the probe that would otherwise cause a sensitivity failure. The Nul1-KoTeTM circuit is excited with the same radio frequency potential as that applied to the sensing probe. Since the current cannot flow at the same potential, the Nul1-KoTeTM circuit isolates the current flow that normally flows from the energized probe through the stacked material to the vessel wall. This way the material around the energized probe is measured, not the stacked material.
NYSP-UK861 RF Admittance Level Switch Design Feature
1.Versatile: Can be used in a variety of conductive and non-conductive media, such as liquids, viscous materials, particles, powders, and fly ash.
2.Anti-adhesive: The patented anti-adhesive circuitry eliminates false signals caused by material adhesion.
3.Detachable probe: There is no cable connection between the controller and the probe, so the controller can be removed and replaced at any time without affecting the incoming or outgoing material.
4.High and low temperature resistance: Suitable for working environment from -184℃ to 280℃, and ceramic probe for higher temperature is also available;
5.Output form: Double-knife double-throw relay signal output, while there is a status light to show the output status, and there is a delay function from 0 to 30 seconds.
6.Non-intelligent diagnosis: After power on, the instrument circuit automatically detects whether the working status is normal.
NYSP-UK861 RF Admittance Level Switch Technical Parameters
|Typical application||Liquid, powder, particle, solid level control|
|Probe material||304, PTFE (optional)|
|Probe length||500mm (The length can be customized according to site conditions)|
|Supply power||24VDC, 220VAC (optional)|
|Process connection||Thread, flange (optional)|
|Signal output||DPDT output, 5A 24VDC or 5A 220VAC|
|Time delay||0-30s adjustment|
|Failure alarm||Upper or lower limit, adjustable on site|
|Explosion-proof grade||Exia II CT6 Ga (optional)|
Note: Products can be customized according to the specific requirements of users.
NYSP-UK861 RF Admittance Level Switch Application Field
1.Casting machinery: Detect sand level.
2.Environmental water treatment: Detect sewage level.
3.Hydraulic machinery: Detect the lubricating oil level
4.Construction machinery: Detect the material level of cement silo and mixing tank.
5.Flour mill: Detect the material level of flour and wheat.
6.Feed factory: Detect soybean meal level.
7.Power plant: Detect the material level of fly ash.
8.Glass factory: Detect the material level of quartz sand and broken glass.
9.Chemical plant: detect the liquid level of polyester, spandex, acid, alkali and other chemical materials.
10.Boiler plant: Detect the water level of steam drum and other pressure vessels.
11.Other occasions: Detection of natural gas, fruit juice, ketchup, etc.
