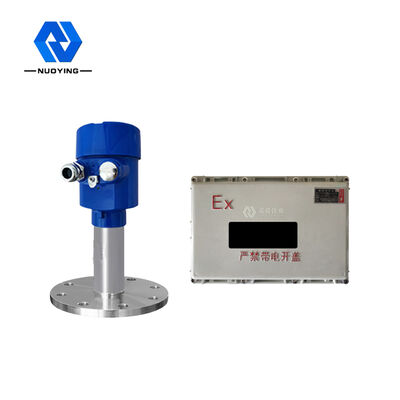

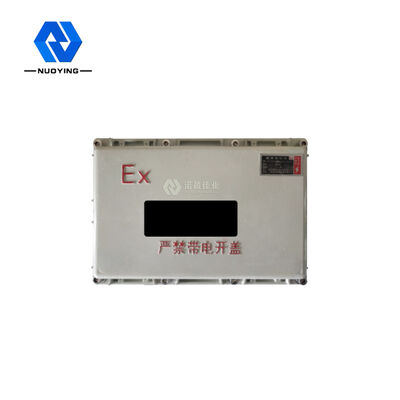

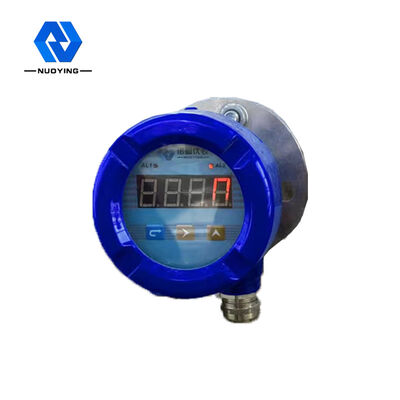

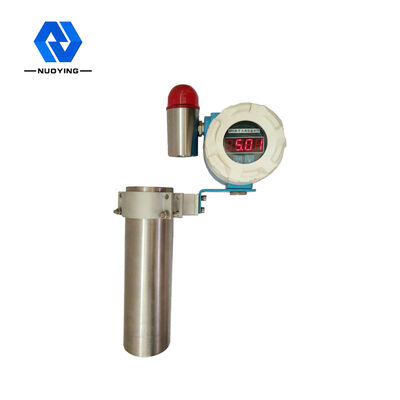

Explosion-proof Tank Side Indicator | , Loop-Powered, 4-20mA Input

Name: Explosion-proof Tank Side Indicator | , Loop-Powered, 4-20mA Input
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYRD702
Price: 625.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NYRD702
MOQ:	1pcs
Price:	$500~$750/pcs
Payment Terms:	T/T
Supply Ability:	1000 pcs/per month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,Shannxi,China

Certification:

CE,ATEX,SIL

Products Model:

NYRD702

Antenna Type:

Rod Type

Antenna Material:

PTFE,304,316

Echo Sampling:

55 Times/s

Measuring Range:

Measuring Accuracy:

±1mm

Power Supply:

24VDC,220VAC

Process Temperature:

-40~130℃

Packaging Details:

Carton, 40cm x 30cm x 30cm

Supply Ability:

1000 pcs/per month

Highlight:

PTFE Radar Level Meter

Rod Type Guided Radar Level Transmitter

6m Guided Radar Level Sensor

Product Description

Explosion Proof Water Tank Side Remote Control Indicator Power Plant 4-20 mA Radar Level Meter Field Display Controller

NYZK Product Details

Product Parameters

Typical application	Tank-side display and control
Case Material	Cast aluminum, stainless steel (optional)
Measuring accuracy	0.05%-0.1%F.S
Power supply	(12-36)VDC(±30%)
Medium temperature	-25~+125℃
Process connection	Flange, thread (optional)
Process pressure	-0.1~2.0MPa
Explosion-proof grade	Exia II CT6(optional)

Products Description

NYZK Tank Side Display Working Principle

NYGP type tank side display meter (hereinafter referred to as "display meter") is mainly used to output 4-20mA without digital display or with digital display but not easy to observe the auxiliary display of the field instrument.
The display instrument should be installed in the easy-to-observe location next to the tank, so that it is convenient to observe the use of nearby.

NYZK Tank Side Display Design Feature

1. Directly serialized into 4-20mA circuit, no need for external power supply.
2. Dot matrix LCD display, capable of displaying different parameter names and units, flexible application.
3. Membrane keys, convenient for setting parameters in close proximity.
4. Suitable for use with instruments outputting 4 to 20mA.
5. With Exd II CT6/Exia II CT6 explosion-proof performance, it can be used in various flammable and explosive areas such as Zone 0 (must be powered by safety grid), Zone 1, Zone 2, etc.

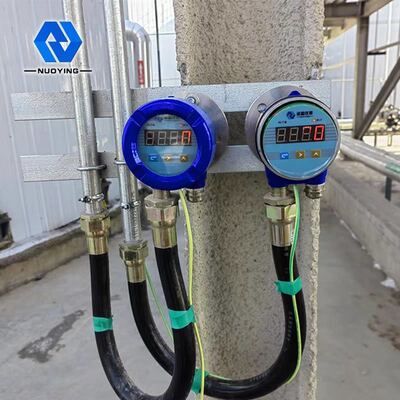

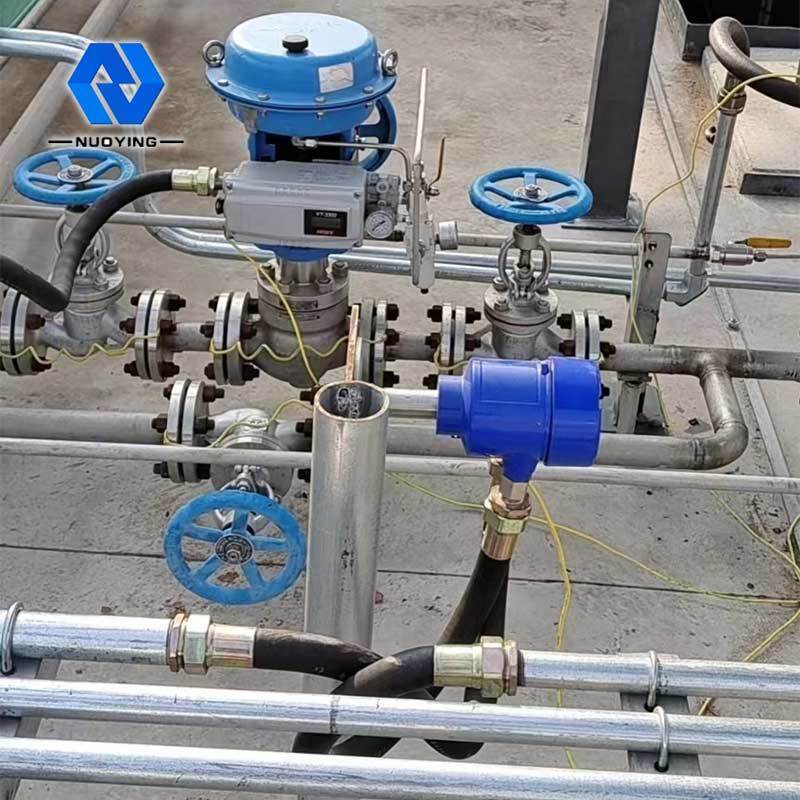

Various application

Explosion-proof Tank Side Indicator | , Loop-Powered, 4-20mA Input 1
