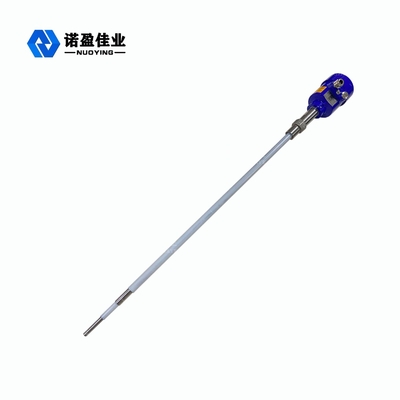

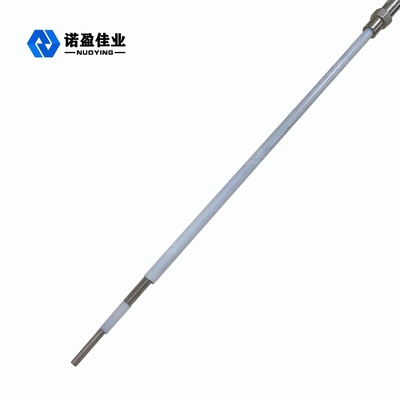

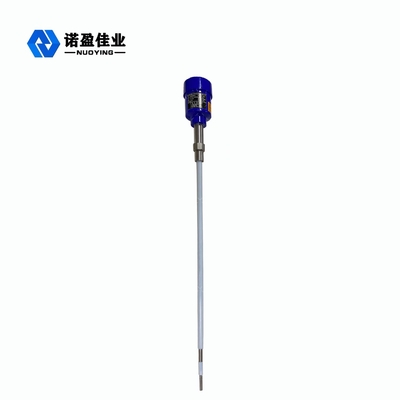

Smart RF Admittance Level Switch Liquid Water Level Control

Smart RF Admittance Level Switch Liquid Water Level Control
Smart RF Admittance Level Switch Liquid Water Level Control Smart RF Admittance Level Switch Liquid Water Level Control Smart RF Admittance Level Switch Liquid Water Level Control

Large Image :  Smart RF Admittance Level Switch Liquid Water Level Control

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-UK862
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Please Contact Me
Packaging Details: carton, 90cm×30cm×30cm
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Smart RF Admittance Level Switch Liquid Water Level Control

Description
Time Delay: 0~30s Adjustable Sensitivity: 0. 5pf~750pf
Process Temperature: -40~+130℃, -184~+260℃ Probe Material: 304, 316, PTFE,ceramic (optional)
Probe Form: Cable Type, Rod Type, Flat Type Process Connection: Thread, Bracket, Flange (optional)
Power Loss Protection: Normally Open, Normally Closed, Switchable On Site Explosion-proof Grade: ExiaIICT6Ga, ExdIICT6Gb (see Certificate For Details)
High Light:

RF Admittance Liquid Level Switch

,

Smart RF Admittance Level Switch

,

Water Level Control Admittance Level Sensor

Smart RF Admittance Level Switch Liquid Level Switch Water Level Control





Radio Frequency Admittance Switch Working Principle



The correct setting of the sensitivity of the RF admittance level switch will affect the correct change of the sensor output. The Null-KoTeTM circuit of the probe can make the measurement circuit ignore the material accumulated on the probe. Otherwise it will cause the failure of sensitivity. The Null-KoTeTM circuit is excited with the same radio frequency potential applied to the sensing probe. Since current cannot flow at the same potential, the Null-KoTeTM circuit interrupts the flow of current that would normally flow from the energized probe through the bulk material to the vessel wall. This measures the material around the energized probe, not the accumulated material.



Radio Frequency Admittance Switch Discription



The working principle of the radio frequency admittance level switch is based on radio frequency (RF) capacitive technology. A radio frequency is applied to the probe and, through continuous analysis, the effects caused by the surrounding environment are determined. Since all materials have a dielectric constant and their conductivity is different from that of air, when the probe is in contact with the material, the total impedance reflected by the small capacitance shift changes. Because the energized probe and the container wall constitute the two polar plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, when the air (whose dielectric constant is 1.0) is replaced by any other material (the dielectric constant > 1), The capacitive effect is enhanced, thus changing the impedance of the application. That is, the change of capacitance value causes the change of impedance. This effect is measured by the circuit and compared to the reference established by the sensitivity setting (circuit).



Radio Frequency Admittance Switch Technical Parameter



Typical application High and low level alarms for liquids, dusts, particles, solids and other media
Product model NYSP-UK861,NYSP-UK862,NYSP-UK863, NYSP-UK864, NYSP-UK865, NYSP-UK866
Probe form Cable type, rod type, flat type
Probe material 304, 316, PTFE, ceramic (optional)
Probe length 500mm (length can be customized according to site conditions)
Power supply 24VDC, 220V AC
Signal output Double pole double throw relay (DPDT) output, 5A 24V DC or 5A 220VAC
Ambient temperature - 40 ~ + 80 ℃
Process temperature -40~+130℃, -184~+260℃, >+260℃ choose ceramic high temperature probe
Process pressure -0.1~2.0MPa
Process connection Thread, bracket, flange (optional)
Time delay 0~30s adjustable
Power loss protection Normally open, normally closed, switchable on site
Sensitivity 0. 5pf~750pf
Error alarm Upper or lower limit, adjustable on site
Protection grade IP67
Explosion-proof grade ExiaIICT6Ga, ExdIICT6Gb (see certificate for details)



※Notes: Products can be customized according to the specific requirements of users!
