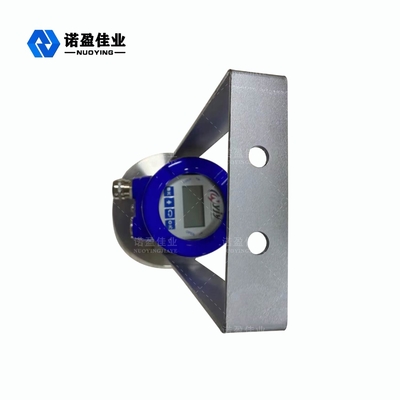

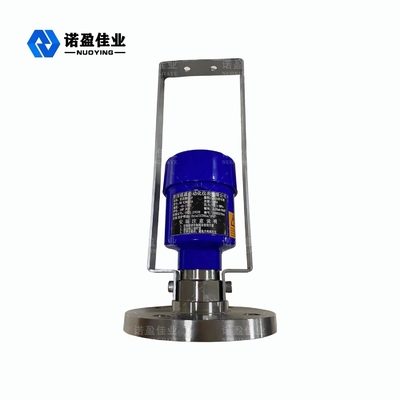

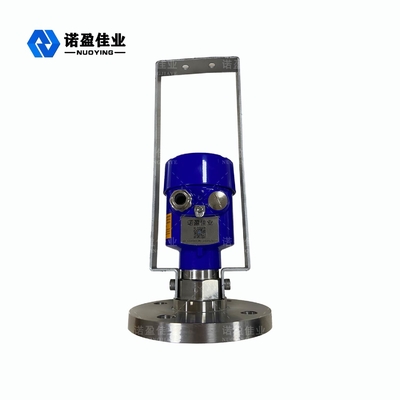

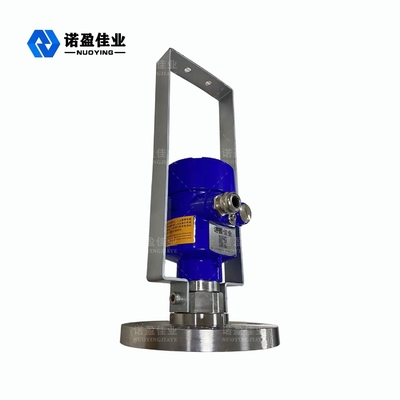

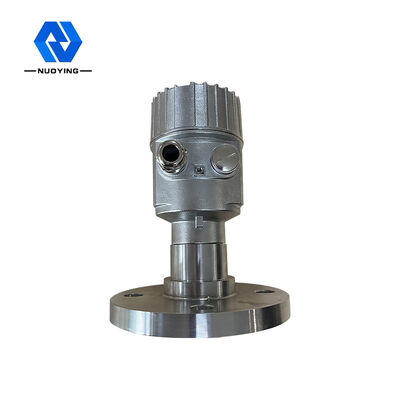

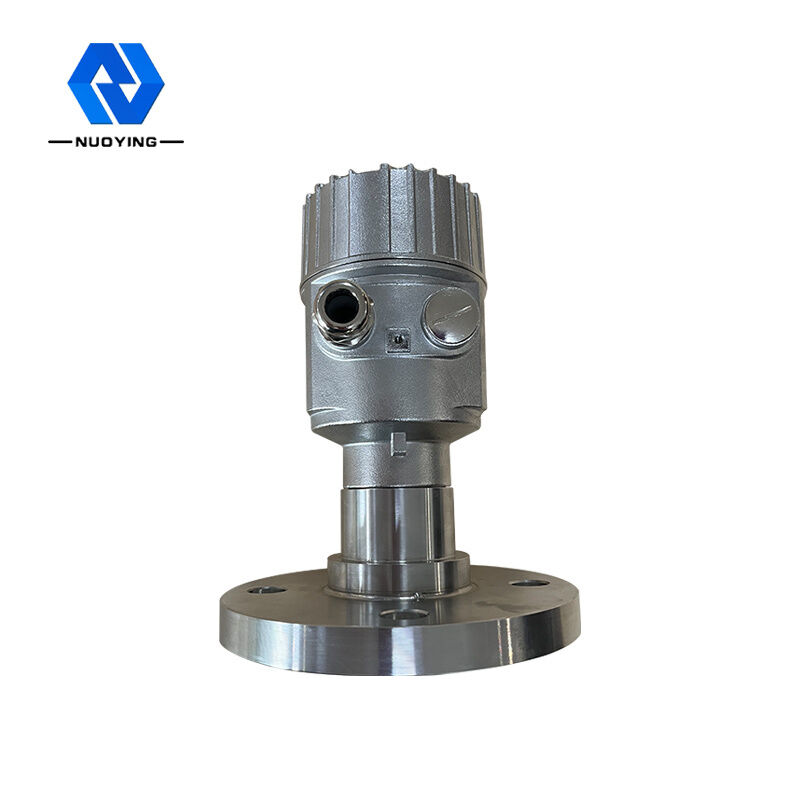

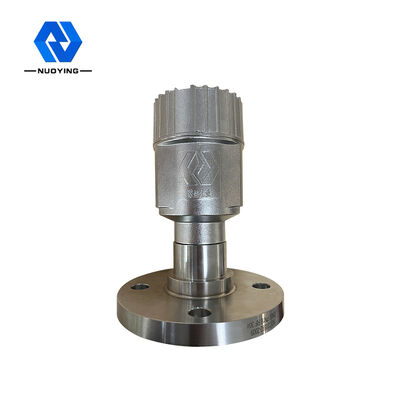

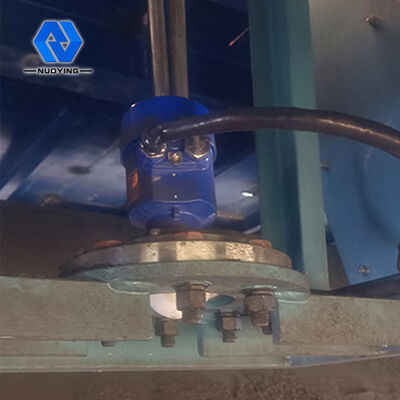

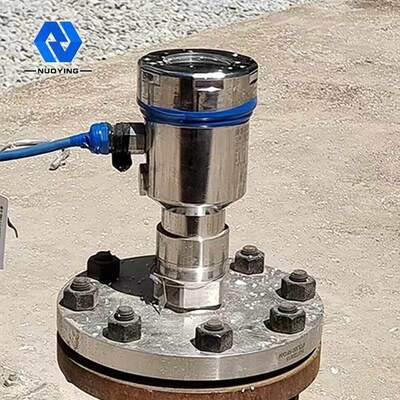

Smart Liquid Solid Radar Level Meter Dust Smoke Environment

Smart Liquid Solid Radar Level Meter Dust Smoke Environment

Brand Name: NUOYINGJIAYE
Model Number: NYRD900
MOQ: 1
Price: Please Contact Me
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month
Detail Information
Place of Origin:
Xi'an, Shaanxi,China
Certification:
CE
Product Model:
NYRD900
Measurement Accuracy:
0.05%~0.1%F.S
Antenna Material:
PTFE,304+PTFE
Power Supply:
24VDC,220V AC
Process Pressure:
-0.1~2.0MPa
Process Temperature:
-40~+130°C
Protection Class:
IP 65,IP 67,IP 68 (optional)
Explosion-proof Grade:
ExiaIICT6Ga, ExdIICT6Gb
Packaging Details:
Carton, 40cm×30cm×30cm
Supply Ability:
1000 pcs/ pre month
Highlight:

Solid Dust Radar Level Meter

,

Smart Radar Level Meter

,

Dust Smoke Environment Radar Level Switch

Product Description

Smart Liquid Solid Dust Radar Level Meter Strong Dust Smoke Environment





80G Radar Level Meter Discription



Millimeter wave electromagnetic waves:Electromagnetic waves in the frequency domain of 30-300 GHz (1-10mm wavelength) are usually referred to as millimeter waves, it is located in the wavelength range where microwaves and far-infrared waves overlap, Therefore, it has the characteristics of two kinds of spectrum. The 76-81GHz band is the least understood and exploited area.



80G Radar Level Meter Technical Parameter



Typical application Electromagnetic wave emission angle less than 3°, suitable for narrow space or waveguide tube measurement
Suitable for large tanks (150m) and small tanks (small blind area)
High precision, high hygiene level and other occasions
Complex process conditions (stirring, heating rod, ladder, floating roof, strong dust, strong steam, etc.) occasions
Product model NYRD900
Transmit frequency 76GHz~81GHz, FM sweep frequency width 5GHz

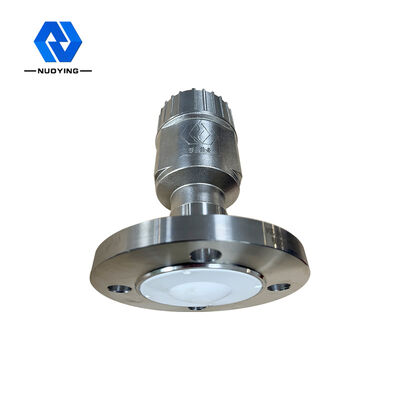

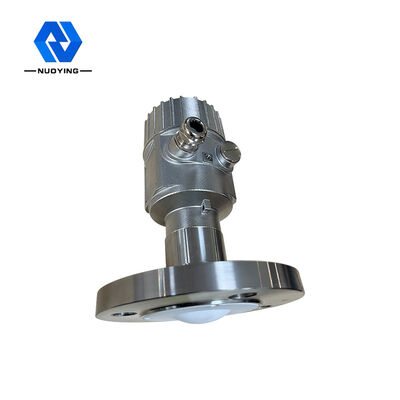

Antenna form Lens antenna, anti-corrosion type lens antenna
Antenna material PTFE,304+PTFE
Measuring range 0.08~150m
Measurement accuracy 0.05%~0.1%F.S
Power supply 24VDC,220V AC
Signal output 4…20mA/HART/RS485/Modbus…
Process temperature -40~+130°C, -40~+260°C (≥260°C can be customized)
Process pressure -0.1~2.0MPa
Process connection Thread,stents,flange,sanitary clamp (optional)
Protection class IP 65,IP 67,IP 68 (optional)
Explosion-proof grade ExiaIICT6Ga, ExdIICT6Gb (see the certificate for details)



※Note:The product can be customized according to the specific requirements of users.



80G Radar Level Meter  Design Features



◎Very good transient performance: Based on the self-developed CMOS millimeter-wave RF chip, it realizes a more compact RF architecture and a higher signal-to-noise ratio.

◎The 5GHz operating bandwidth enables the product to have higher measurement resolution and measurement accuracy.

◎Coherence: Coherence is produced by coherent current-driven dipole oscillations, or by nonlinear difference-frequency effects of coherent laser pulses.

◎Low energy: The energy of millimeter wave photons is only a few millielectron volts, and there is no phenomenon of X-ray ionization and destruction of the substance to be detected, so it is not easy to destroy the substance to be detected.
