Product Details:
|
| Typical Application: | Explosive Gas Environments Other Than Coal Mines. | Probe Connection: | Magnet Adsorption, Gluing, Tie Hoops, Etc |
|---|---|---|---|
| Power Supply: | DC 24V | Signal Output: | SPDT, Dry Contact |
| Environment Temperature: | -40 ~ +60℃ | Measurable Wall Thickness: | 6-50mm |
| Measurable Media: | Magnet Adsorption, Gluing, Tie Hoops, Etc | ||
| High Light: | Fixed Point Tuning Fork Level Switch,Ultrasonic Tuning Fork Level Switch,Externally Attached Ultrasonic Level Switch |
||

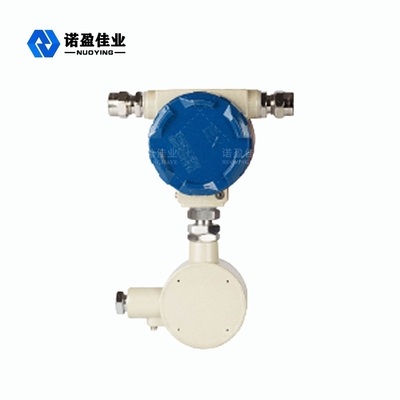

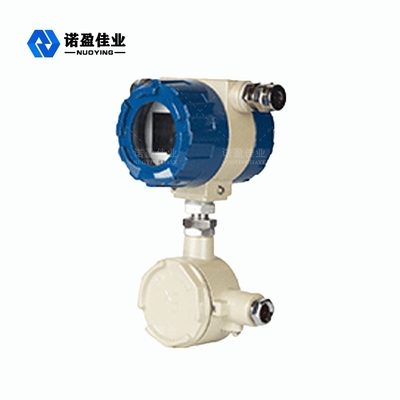

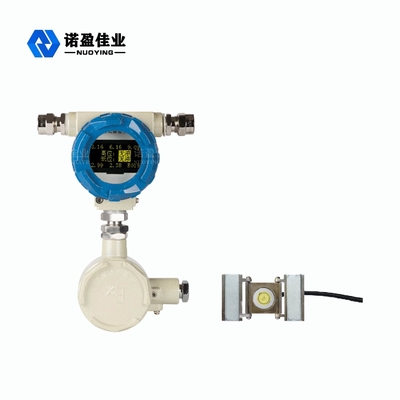

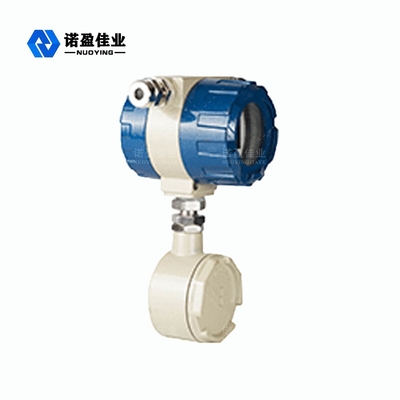

NYKC3 Externally Attached Ultrasonic Tuning Fork Level Switch Non Invasive Fixed Point
NYKC3 intelligent external level switch measurement principle is based on the different signal attenuation characteristics of ultrasonic in the presence and absence of liquid for non-intervention type fixed-point liquid level detection, the instrument is installed in the outer wall of the closed body to achieve the measurement and alarm of fixed-point liquid level. Installation does not require a hole in the tank wall, the instrument does not touch either the liquid medium in the container or the gaseous medium in the container. Therefore, the installation is simple, fast, very safe and reliable in use, no tank is opened during maintenance, no fire is started, and normal production is not affected.
NYKC3 Externally Attached Ultrasonic Switch Working Principle
This switch uses ultrasonic technology to detect whether the liquid level inside the tank reaches the set alarm position through the ultrasonic sensor. The principle is that by stimulating the ultrasonic sensor, the ultrasonic wave is emitted and the ultrasonic signal is shot into the tank with the tank wall. Therefore, there will be a clear difference in the strength of the reflected signal from the tank wall received by the ultrasonic sensor. Using the above principle, by detecting the strength of the received ultrasonic signal, it is possible to accurately determine whether the liquid level has reached or not, and the relay outputs the corresponding alarm signal.
NYKC3 Externally Attached Ultrasonic Switch Design Feature
1.Dual processing operation, more stable and reliable performance.
2.Ultrasonic high frequency technology, strong anti-interference ability.
3.Self-diagnostic function, fault code display and output, easy maintenance.
4.With calibration probe, realize self-calibration and reduce the influence of ambient temperature of probe signal.
5.Single probe measurement, two-point high and low level control.
6.Infrared menu debugging.
NYKC3 Externally Attached Ultrasonic Switch Technical Parameters
| Typical application | Explosive gas environments other than coal mines. |
| Measurable media | Pure liquid, emulsion liquid, suspension liquid |
| Shell material | cast aluminum |
| Probe connection | Magnet adsorption, gluing, tie hoops, etc |
| Measuring point | Two points at most |
| Power supply | DC 24V |
| Signal output | SPDT, dry contact |
| Environment temperature | -40 ~ +60℃ |
| Environmental humidity | 15% ~ 100%RH |
| Sensor temperature | -40℃ ~ +100℃ |
| Container material | Steel, stainless steel, glass, non-foaming plastic and other dense materials |
| Contact capacity | 250VAC/10A,30VDC/10A,60VDC/0.5A |
| Measurable wall thickness | 6-50mm |
| Interface specifications | M20×1.5 |
| Protection level | IP65,IP67,IP68(optional) |
| Explosion-proof grade | Exd II CT6, Exd mb II CT6 |
Note: Products can be customized according to the specific requirements of users.
