Product Details:
|
| Product Number: | NYLD-WL | Relative Humidity: | 5%~90% |
|---|---|---|---|
| Medium Temperature: | -20~+120°C | Ambient Temperature: | -20~+60°C |
| Atmospheric Pressure: | 86Kpa~106Kpa | Signal Output: | 4~20mA Signal |
| Protection/Explosion-Proof Rating: | IP67/ExiaIIBT5, ExdIIBT6 (see Certificate For Details) | Communication Output: | RS485 Communication, HART Protocol, Etc. |
| High Light: | Smart Control Turbine Flow Meter,Electromagnetic Turbine Flow Meter,Turbine Electromagnetic Water Flow Meter |
||

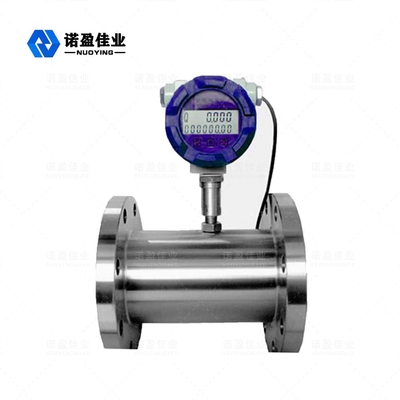

Smart Control Turbine Flow Meter Simple Structure High Precision
Turbine Flow Meter Working Principle
When the measured fluid flows through the sensor, under the action of the fluid, the impeller is forced to rotate, and its rotational speed is proportional to the average flow velocity of the pipeline, and the rotation of the impeller periodically changes the reluctance value of the magnetoelectric converter. The magnetic flux in the detection coil changes periodically, generate a periodic induced potential, that is, an electrical pulse signal, which is amplified by an amplifier and sent to the display instrument for display.
Turbine Flow Meter Design Feature
◎It is suitable for high pressure measurement, and there is no need to open holes on the meter body, and it is easy to make a high pressure meter;
◎There are many types of special sensors, which can be designed into various special sensors according to the special needs of users, such as low temperature type, bidirectional type, downhole type, special type for sand mixing, etc.;
◎It can be made into a plug-in type, suitable for large-caliber measurement, with small pressure loss, low price, continuous flow and extraction, and convenient installation and maintenance.
Turbine Flow Meter Technical Parameter
| Sensor material | 304 stainless steel, 316 (L) stainless steel, etc. | |
| Ambient temperature | -20~+60°C | |
| Medium temperature | -20~+120°C | |
| Relative humidity | 5%~90% | |
| Atmospheric pressure | 86Kpa~106Kpa | |
| Signal output | Pulse signal, 4~20mA signal | |
| Communication output | RS485 communication, HART protocol, etc. | |
| Power supply | A. External power supply: +24VDC±15%, ripple≤±5 | B. Internal power supply: 1 set of 3.0V10AH lithium battery |
| Protection/Explosion-Proof Rating | IP67/ExiaIIBT5, ExdIIBT6 (see certificate for details) | |
