6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter

6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter
6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter 6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter 6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter

Large Image :  6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYLL-CH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $280 to $1500
Packaging Details: Export standard packing
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 300 pcs/ pre month

6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter

Description
Caliber: 300 - 3000 Mm Speed Range Of The Flow Rate: 0.5-10m/s
Accuracy: ±0.5%R, ±1%R (below DN200) Signal Output: 4~20 M A;RS 485;HART Protocol;MODBUS Protocol
Ambient Humidity: 5%~95% Protection Grade: IP65, It Can Be Customized Up To IP68
Electroconductibility: > 50μs/ Cm Medium Temperature: - 20℃ ~+ 130℃
High Light:

Plug In Electromagnetic Flow Meter

,

Electromagnetic Flow Meter 20Ma

,

3000mm insertion probe flow meter



Slurry Cement Corrosive Liquid Water 4-20ma Plug-In Insertion Type Electromagnetic Insertion Flow Meter



NYLL-CR series intelligent electromagnetic flowmeter is a new generation of fully intelligent flowmeter developed by our company based on Faraday electromagnetic induction principle. The electromagnetic flowmeter can not only measure the volume flow of conductive liquid, but also measure the volume flow of corrosive liquid such as strong acid and alkali, and even liquid-solid twophase suspension liquid such as mud, pulp and pulp. It is widely used in the fields of petroleum, chemical industry, metallurgy, textile, pharmacy, food and beverage, paper making, electric power, urban water supply and drainage and environmental protection.



Plug-In Insertion Type Electromagnetic Insertion Flow Meter Technical Parameters



Caliber 300 - 3000 mm
Speed range of the flow rate 0 . 1~10 m/ s

Precision

0 . 5~10 m/ s:±1 . 5 % FS; 0 . 1~0 . 5 m/ s:±2 . 0 % FS

0 . 1~10 m/ s:±2 . 5 % FS(FS refers to 40% to 100% full range flow)

Electroconductibility > 50μs/ cm
Straight pipe section The anterior 5 DN, and the posterior 3 DN
Medium temperature - 20℃ ~+ 130℃
Ambient temperature - 20℃ ~+ 60℃
Withstand voltage 1 . 6 Mpa
Levels of protection IP 65, IP 68
Electrode material 316 L stainless steel
Output signal 4 - 20 m A;RS 485;HART protocol;MODBUS protocol
Sensor material stainless steel
Operational principle 220 VAC, tolerance15 % or 24 VDC, ripple wave≤5 %
Capacity factor 6.5W
Pressure resistance level ≤1.6 Mpa



6.5W Plug In Electromagnetic Flow Meter 20Ma 300-3000mm Insertion Probe Flow Meter 0

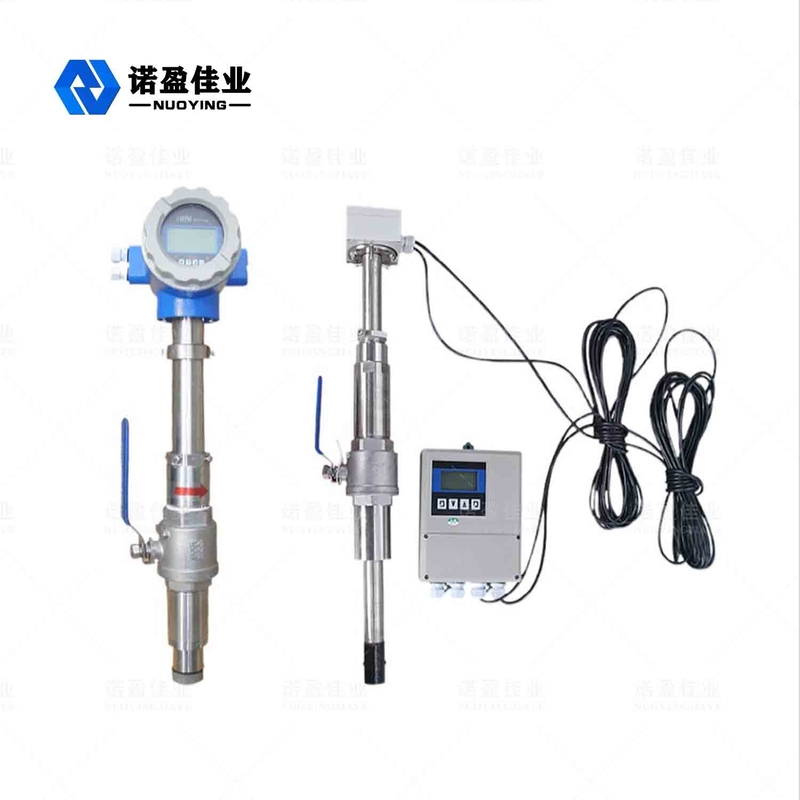

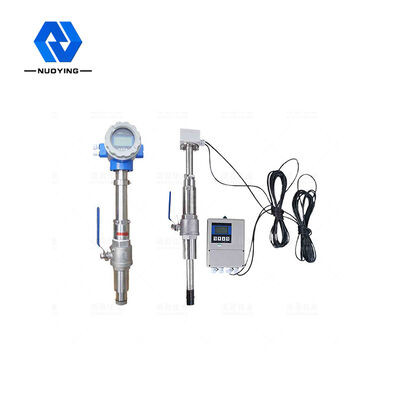

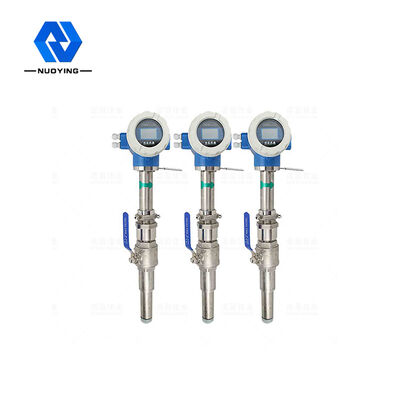

All-in-one type(As shown in the figure: left)
The electromagnetic flowmeter converter adopts a novel excitation method, which has low power consumption, stable zero point and long service life.

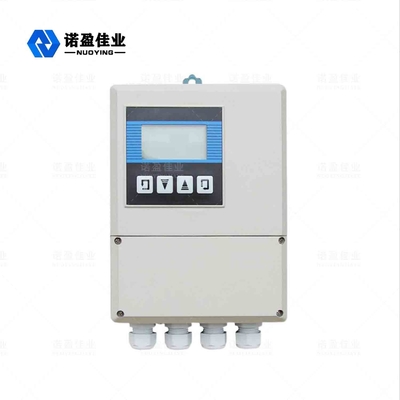

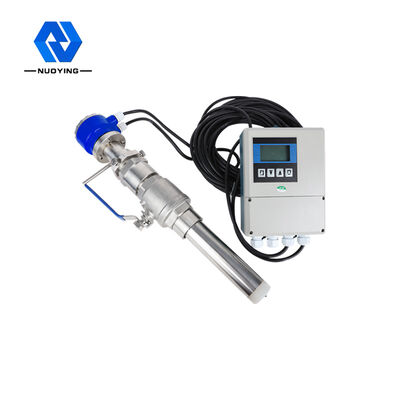

Split type(As shown in the figure: right)
In addition to measuring the flow of general conductive liquids, the split electromagnetic flowmeter can also measure the volume flow of liquid-solid two-phase flow, high-viscosity fluids and salts, and strong acid and strong alkali liquids.



Plug-In Insertion Type Electromagnetic Insertion Flow Meter Design Features

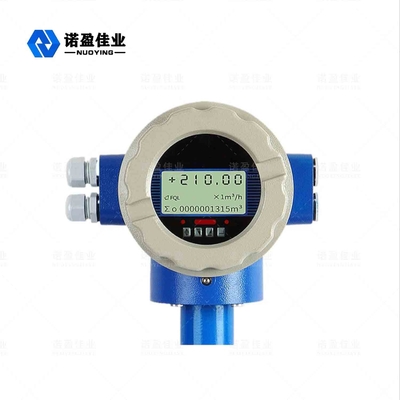

  • High definition backlit LCD display, which can simultaneously display instantaneous flow, cumulative flow, flow percentage, flow rate, etc
  • Corrosion resistant all stainless steel ABS mold production probe simple structure, firm, no moving parts, long service life:
  • Reliable measurement, strong anti-interference ability;
  • Small size, light weight, easy installation, small maintenance;
  • Large measurement range, measurement is not affected by temperature, density, pressure, viscosity, conductivity and other changes;
  • Pressure loss is zero;
  • It can be installed and disassembled without interruption of flow, which brings convenience to the maintenance of users.
  • Compared with the general electromagnetic flowmeter, the manufacturing cost and installation cost is low, especially suitable for large and medium diameter pipeline flow measurement.
