IP65 Insertion Flow Meter Cement Corrosive Liquid Water Measuring

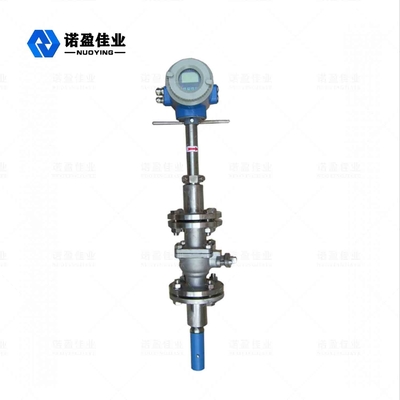

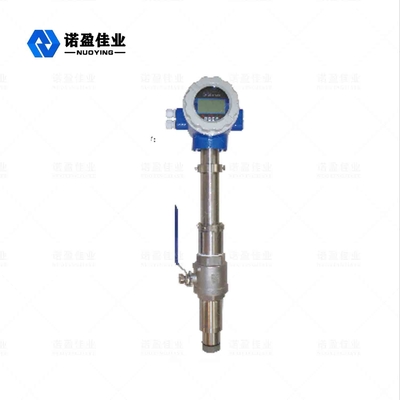

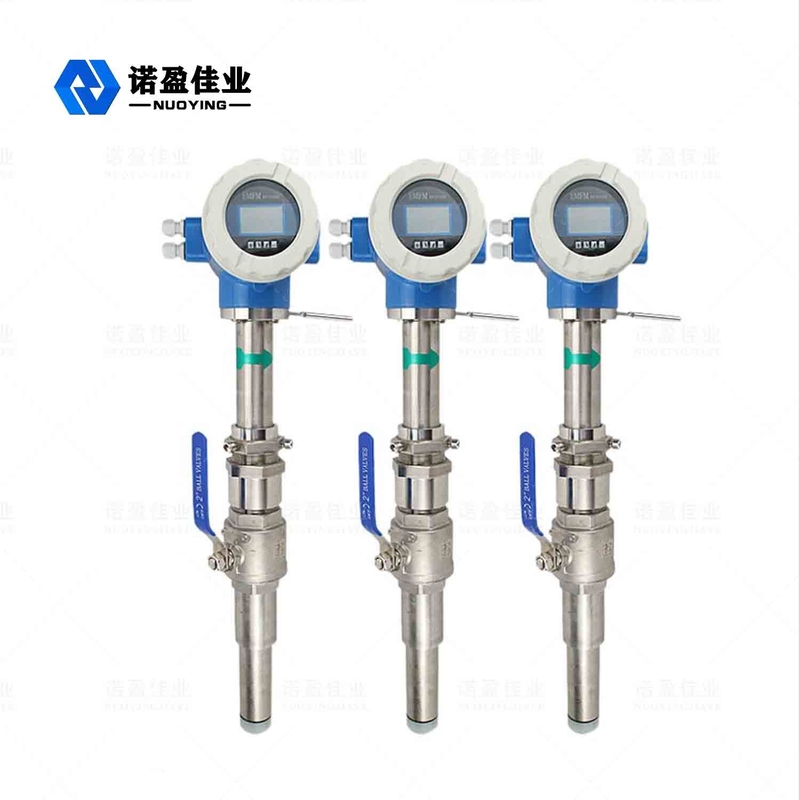

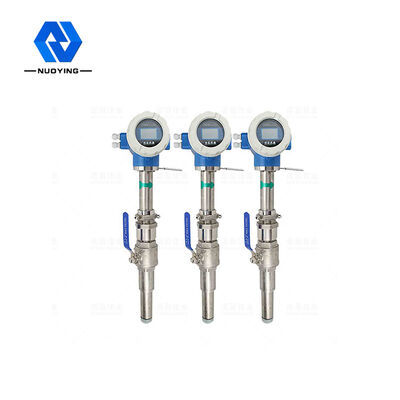

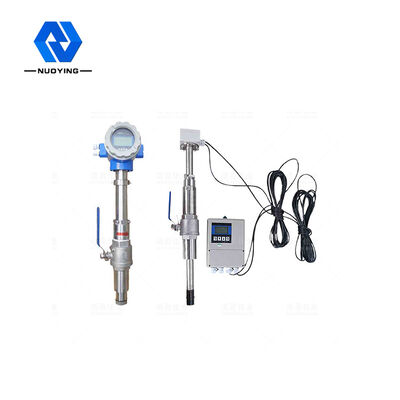

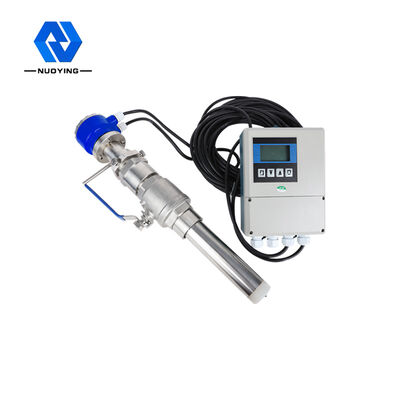

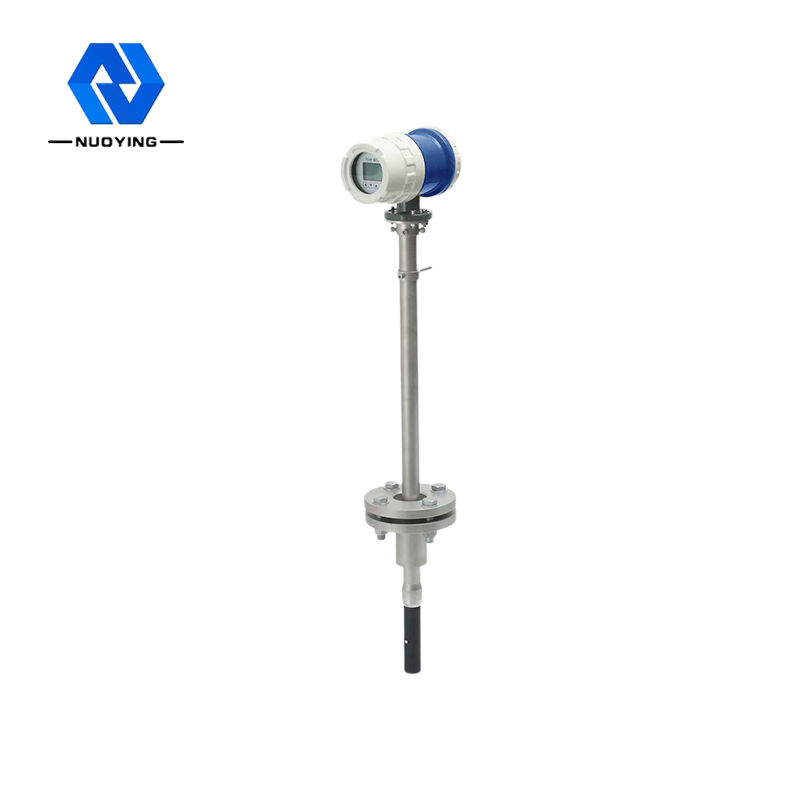

Slurry Cement Corrosive Liquid Water 4-20ma Plug-In Insertion Type Electromagnetic Insertion Flow Meter

NYLL-CR plug-in electromagnetic flow meter is a new flow meter developed on the basis of pipeline electromagnetic flow meter. It retains the advantages of pipeline electromagnetic flowmeter, aiming at the difficult installation and large cost on the pipeline, according to Nikura magnetic
(NIKURADS) Principle, the average flow rate of the fluid is measured to obtain the volume flow of the fluid.Especially after the use of the pressure opening hole and pressure installation technology, the plug-in electromagnetic flow meter can be installed without stopping water, or on the cast iron pipe and cement pipe.The successful development of the plug-in electromagnetic flowmeter provides a new method for fluid flow detection.
The plug-in type, like the pipeline flange electromagnetic flowmeter, works according to Faraday's law of electromagnetic induction.

Plug-In Insertion Type Electromagnetic Insertion Flow Meter Technical Parameters

Plug-In Insertion Type Electromagnetic Insertion Flow Meter Design Features

• In the pipeline flow detection, the installation is simple, can constantly flow, the site can take the pressure open hole, with absolute installation advantages and price advantages.
• It is suitable for liquid flow detection with water, sewage, acid, strong alkali conductivity above 20cm. The change of conductivity does not affect the change of performance, and strongly adapt to the complex changes of fluid, especially for the flow measurement of water supply and drainage pipes.
• Flow meter mechanical movable parts, converter with optimized design, tight structure, easy to install, converter and sensors are interchangeability,
• The detection range of the measured flow rate can be freely changed (0.5 m/s to 10 m/s).
• It is only related to the insertion depth, so it is widely versatile and has strong interchangeability.One type can be applicable to the fluid measurement requirements for various specifications of piping.The range automatic switch function.When the flow meter changes in the flow range, the flow range can be automatically switched to ensure the accurate measurement within the full flow range.
• Positive and reverse flow direction calculation function.Users can choose forward measurement or reverse measurement (the factory is positive measurement).
• Upper and lower limit alarm, air traffic control alarm.
• Power failure protection, parameters are not lost after power failure, EEPROM can save the set parameters and cumulative values.
• Small-signal excision function.The user can set the lower voltage or lower flow through the display panel to remove the interfering interference signal.
• The instrument applies the principle of "automatic zero" to eliminate electrochemical interference signal and zero self-stability.
• Converters and sensors have various levels of protection and installation methods, including IP68 for diving installation.
