Product Details:
|
| Material: | 316SS | Medium: | Liquid;water;sewage Water;sea Water;acid Water; |
|---|---|---|---|
| Pressure: | 1.6mpa;4.0mpa;2.5mpa;1.0mpa;0.6mpa | Accuracy: | 0.5%, 0.%,0.2% |
| Medium Temperature: | -30~180℃ | Output: | 4-20mA ;RS485;pulse Output;Modbus; Profibus DP;Hart |
| Power Supply: | 6V/220v/24v | ||
| High Light: | 316SS Insertion Electromagnetic Flowmeter,ABS PTFE Insertion Electromagnetic Flowmeter,IP67 insertion mag flow meter |
||

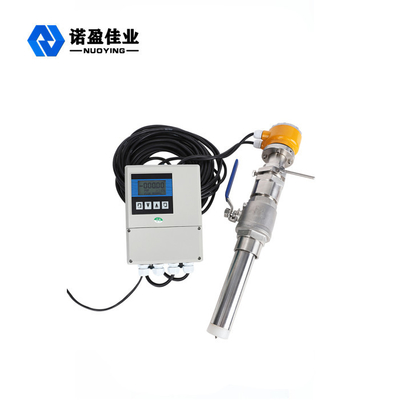

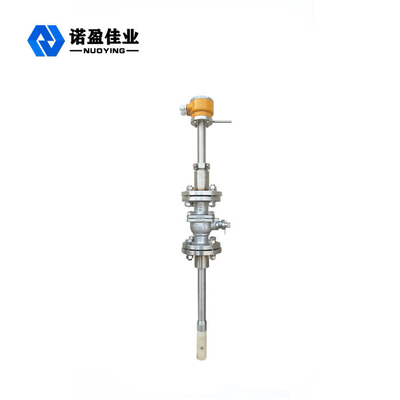

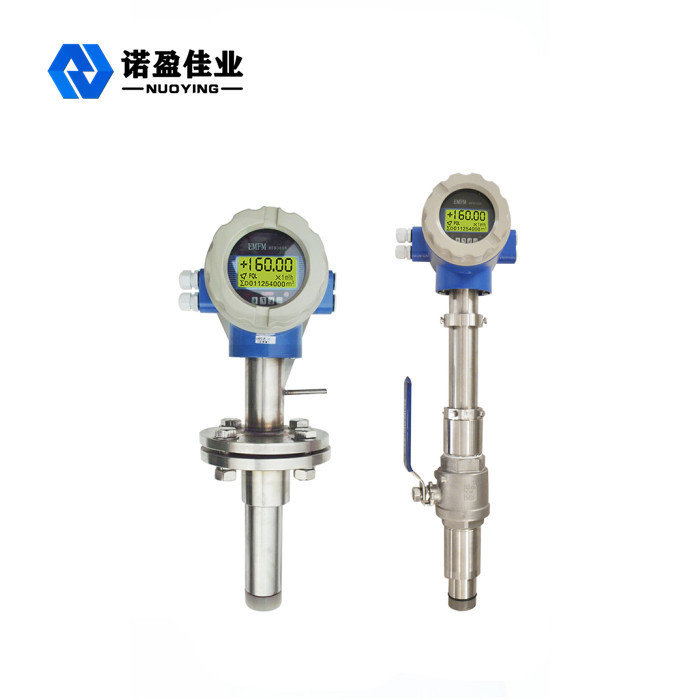

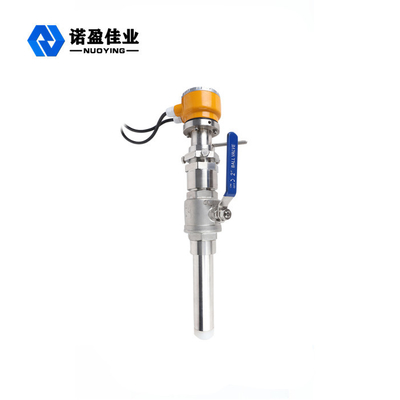

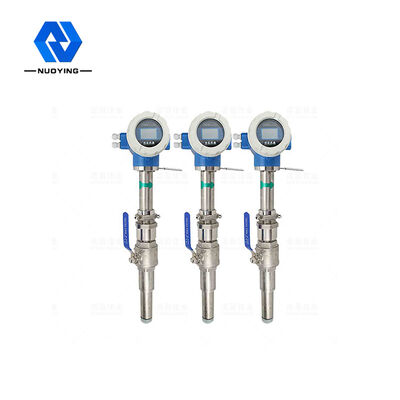

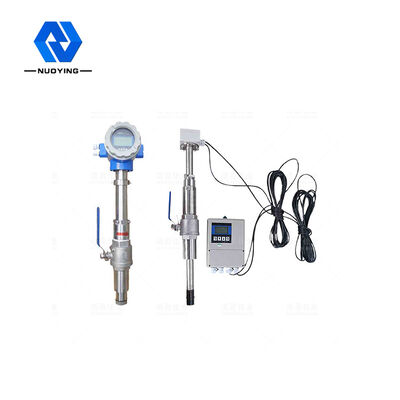

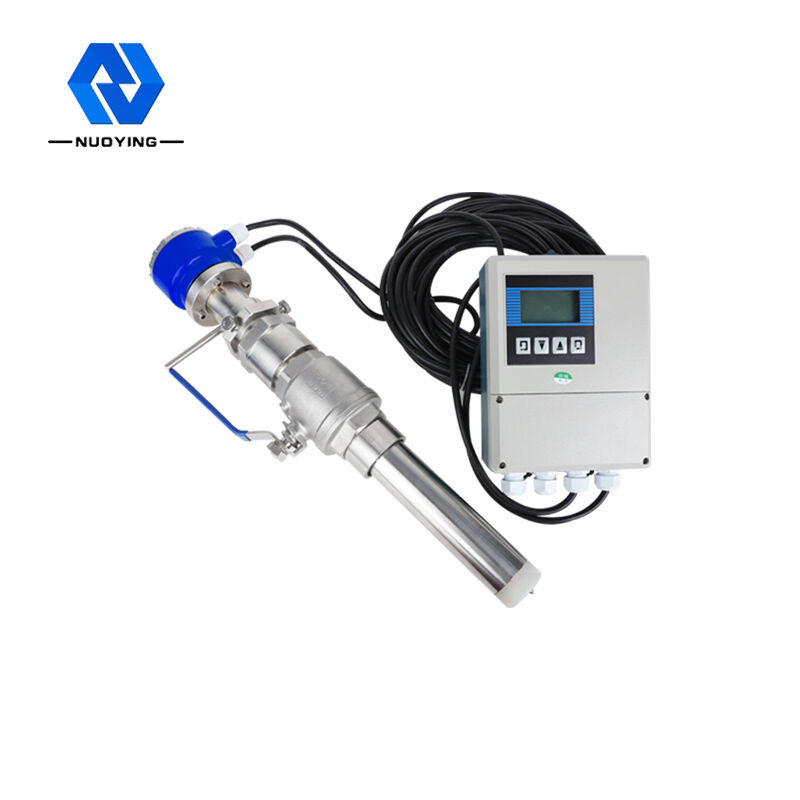

316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter
316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Description:
NYLD Intelligent electromagnetic flow meter is a kind of high performance ,high reliability of the flowmeter .Used for measuring the volume flow of conducting liquid and slurry in closed conducts. Widelyused in steel, electricity, petroleum, chemical, coal, metallurgy,paper making, water supply and drainage ,food ,medicine industry etc.
316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Parameters:
 |
Pipe size | DN100-DN3000 | ||
| Pressure | 0.6~1.6MPa | |||
| Temperature | -25~80℃ | |||
| Lining | ABS, PTFE | |||
| Electrode material | 316L, titanium, tantalum, platinum-iridium alloy, Hastelloy B, Hastelloy C | |||
| Power supply | 85~265VAC,24V DC,3.6VBattery powered | |||
| Output | 4-20MA, pulse, frequency, RS485, MODBUS, HART | |||
| Protection level | IP65,IP67,IP68 | |||
| Accuracy | 1.0%FS,1.5%FS | |||
| Display | LCD | |||
316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Working principle:
The measuring principle of electromagnetic flow meter is based on the electromagnetic induction law of Farady. The sensor is mainly composed of measuring tube with isolate lining, a pair of electrodes installed by penetration of the measuring tube wall, a pair of coils and iron core to produce working magnetic field. When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
316L Electromagnetic Flowmeter Insertion Electrtomagnetic Flow Meter Working Features:
