Product Details:
|
| Antenna Material: | 304, 316 | Product Model: | NYCZ500 |
|---|---|---|---|
| Antenna Form: | Cable, Rod | Measuring Accuracy: | ±0.5mm |
| Process Temperature: | -40~+200°C | Process Pressure: | -0.1~10.0MPa |
| Process Connection: | Thread, Bracket, Flange (optional) | Protection Class: | IP 65, IP 67, IP 68(optional) |
| High Light: | Magnetostrictive Liquid Level Meter,Liquid Level Gauge Rod,Floating Ball Magnetic Level Gauge |
||

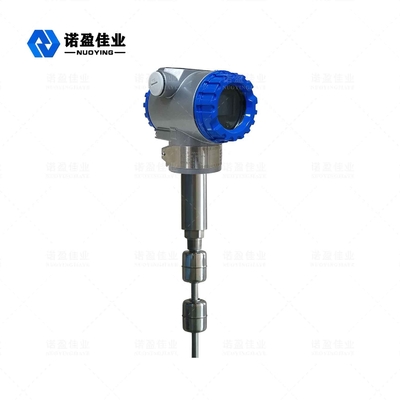

Safe Liquid Level Meter Magnetostrictive Liquid Level Gauge Rob
Magnetostrictive Liquid Level Meter Discription

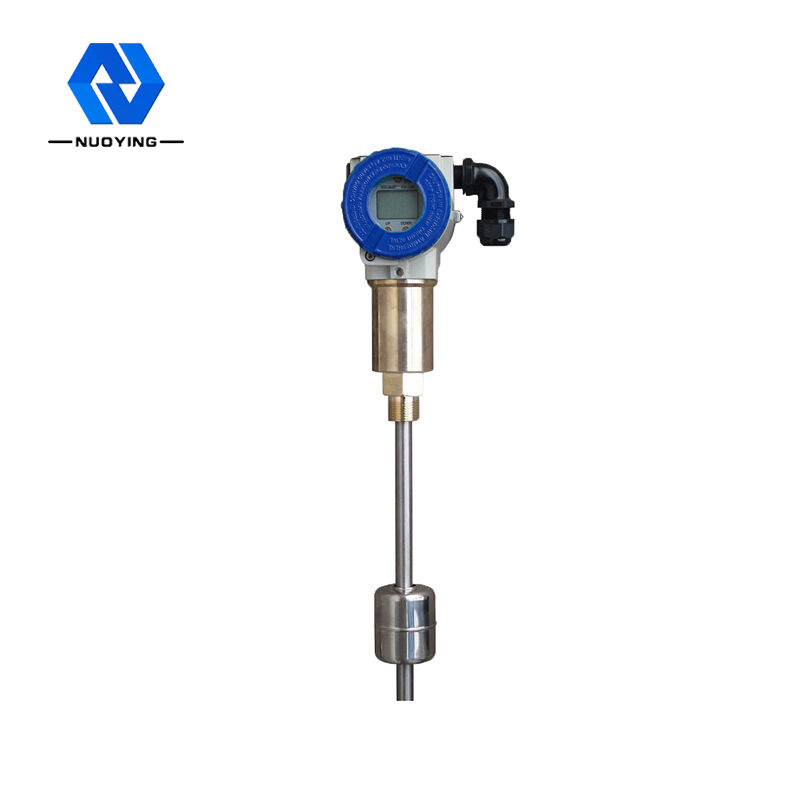

The working principle of the magnetostrictive liquid level meter is shown in the figure. The product is mainly composed of measuring rod, electronic warehouse and non-contact floating ball set on the measuring rod. A magnetostrictive wire (waveguide wire) is installed in the measuring rod. The measuring rod is made of a non-magnetic stainless steel tube, which protects the waveguide wire very well.
Magnetostrictive Liquid Level Meter Design Feature
◎High precision: Since the magnetostrictive level meter works with waveguide pulses, the measured displacement is determined by measuring the time of the initial pulse and the end pulse, so the measurement accuracy is high, and the resolution is better than 0.01% FS. This is an accuracy that is difficult to achieve with other sensors.
◎Good safety: The magnetostrictive liquid level meter has high explosion-proof performance, intrinsically safe explosion-proof, safe to use, especially suitable for the measurement of chemical raw materials and flammable liquids. There is no need to open the tank cover during measurement, which avoids the insecurity of manual measurement.
◎The magnetostrictive level meter is easy to install and maintain: the magnetostrictive level meter is generally installed through the existing nozzle on the top of the tank, especially suitable for the installation of underground storage tanks and storage tanks that have been put into operation, and can be installed during the installation process, also does not affect production during installation.
Magnetostrictive Liquid Level Meter Technical Parameter
| Working current | 4... 20mA |
| Load characteristics | When the current output, the maximum load resistance is 600Ω; Voltage output, the maximum load resistance of 2mA |
| Process temperature | -40~+200°C |
| Response time | 0.2~5ms |
| Process pressure | -0.1~10.0MPa |
| Process connection | Thread, bracket, flange (optional) |
| Resolution | ±1mm |
| Protection class | IP 65, IP 67, IP 68(optional) |
| Explosion-proof grade | ExiaIICT6Ga,ExdIICT6Gb (see the certificate) |
