Product Details:
|
| Typical Application: | Liquid Level Measurement, Etc. | Float Material: | F4, PP, 304, PTFE (optional) |
|---|---|---|---|
| Rod Length: | 200~6000mm(optional) | Process Connection: | Thread, Flange (optional) |
| Medium Viscosity: | ≤0.05Pa·S | Medium Density: | 0.5~2.0g/cm³ |
| Protection Class: | IP 65, IP 67, IP 68(optional) | Explosion-proof Grade: | ExdIICT6Gb (see The Certificate) |
| High Light: | Liquid Magnetostrictive Level Gauge,PTFE Magnetic Float Level Gauge,Float Ball Magnetic Level Gauge |
||

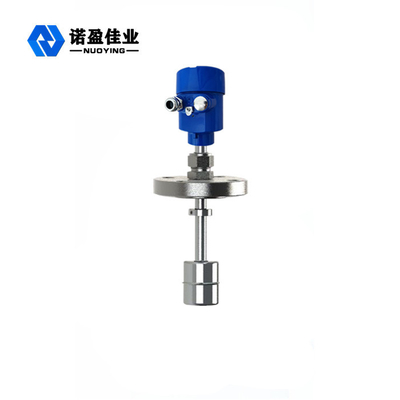

Widely Range Liquid Level Flange Magnetic Float Ball Level Meter
Magnetic Float Ball Level Meter Discription
NYCFQ series magnetic float ball level gauge is designed based on the principle of buoyancy and magnetic force. The magnetic float level gauge is equipped with one or more reed switches in a closed non-magnetically conductive tube, and then the tube is passed through one or more hollow and floating balls with a ring magnet inside, and the ring magnetic float rises with the liquid. The drop will drive the floating ball to move up and down together, so that the reed switch in the non-magnetic tube can be pulled in or disconnected, and the resistance signal corresponding to the liquid level is output and converted into a 4-20mA standard signal output. Send a contact open (close) conversion signal.
◎Customized design, multi-point control, wide application range;
◎Simple structure, convenient installation and low maintenance cost;
◎Stable and reliable performance, strong anti-lightning and anti-interference ability;
Magnetic Float Ball Level Meter Technical Parameter
| Typical application | Liquid level measurement, etc. |
| Product model | NYCFQ-UL,NYCFQ-UK |
| Float material | F4, PP, 304, PTFE (optional) |
| Rod length | 200~6000mm(optional) |
| Ambient temperature | -40~+80℃ |
| Process temperature | -40~+130℃ |
| Process pressure | -0.1~2.0MPa |
