Product Details:
|
| Measurement Range: | -20~+1600℃ | Environment Temperature: | -20~+80℃ |
|---|---|---|---|
| Power Supply: | 24VDC(12VDC~30VDC) | Overload Capacity: | 0～500Ω |
| Relative Humidity: | 5%-95% | Process Connection: | Flange, Thread (optional) |
| Typical Application: | Measurement Of Liquids And Vapors In The Range Of -200°C To 1600°C In Various Processes And Other Gaseous Media Or Solid Surface Temperatures. | Signal Output: | 4...20mADC(two Lines);1~5VDC(three Lines) |
| High Light: | 24VDC Temperature Sensor Transmitter,High Accuracy Temperature Sensor Transmitter,Flange Industrial Temperature Sensor |
||

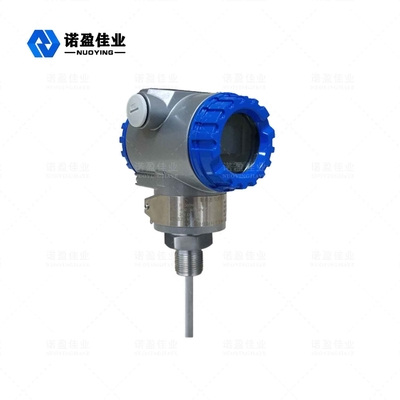

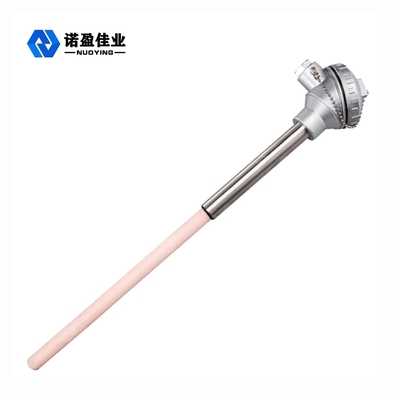

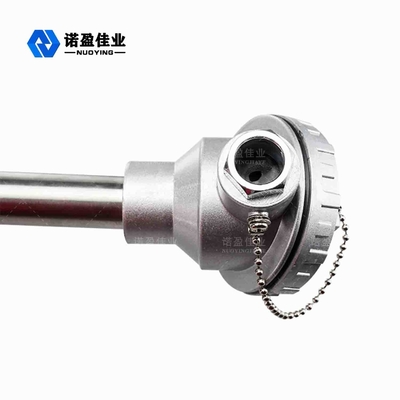

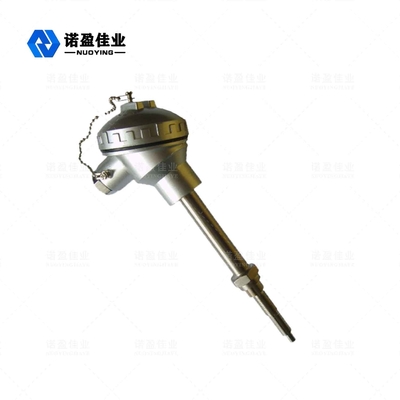

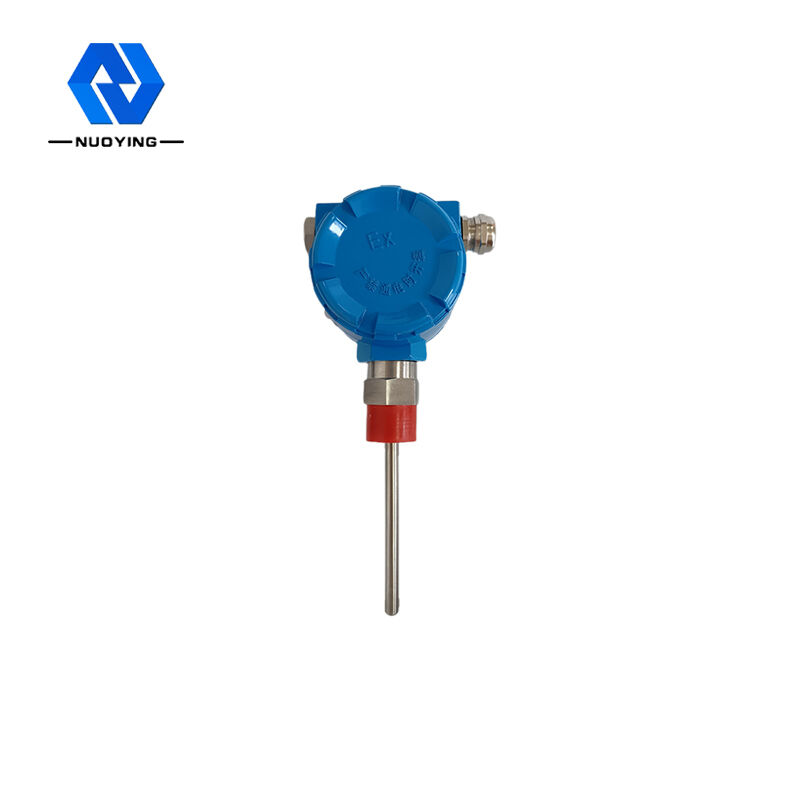

Fast Response Time High Accuracy 24VDC Temperature Sensor Transmitter
Temperature Sensor Transmitter Working Principle
NT93420 temperature transmitter adopts thermocouple, RTD as temperature measuring element, the output signal from the temperature measuring element is sent to the transmitter module, which is converted into 4~20mA current signal 0-5V/0-10V voltage signal and RS485 digital signal output after the circuit processing of voltage stabilization and filtering, operation amplification, non-linear correction, V/I conversion, constant current and reverse protection, etc. with linear relationship with temperature.
Temperature Sensor Transmitter Design Feature
1. Simple installation, a variety of temperature measurement ranges to choose from.
2. Gas-liquid dual-use, compatible with 316L for any medium.
3. A variety of linear analog signals to choose.
4. Fast response time, high accuracy, compact and durable structure, strong anti-interference capability.
5. Good long-term stability, low energy consumption, small size.
6. Waterproof, explosion-proof, temperature resistant and shock resistant.
Temperature Sensor Transmitter Technical Parameters
| Typical application | Measurement of liquids and vapors in the range of -200°C to 1600°C in various processes and other gaseous media or solid surface temperatures. |
| Measurement Range | -20~+1600℃ |
| Power supply | 24VDC(12VDC~30VDC) |
| Environment temperature | -20~+80℃ |
| Signal Output | 4...20mADC(two lines);1~5VDC(three lines) |
| Relative Humidity | 5%-95% |
| Overload capacity | 0～500Ω |
| Response time | ≤350mS |
| temperature drift | ±0.025%/℃ |
| time drift | Less than ±0.5% per year |
| Protection tube material |
1Cr18Ni9Ti or ceramic or high alumina tubes |
| Process connection | Flange, thread (optional) |
| Housing material | Aluminum (optional) |
| Interface Size | M27×2 or inline ceramic tube (optional) |
| Protection level | IP67 |
| Explosion-proof grade | Exia II BT6,Exd II BT5(optional) |
Temperature Sensor Transmitter Application Field
Petroleum, chemical, chemical fiber; textile, rubber, building materials; electric power, metallurgy, medicine; food and other industrial fields on-site temperature measurement process control; especially suitable for computerized measurement and control systems, but also can be used in conjunction with the instrument. Such as: pipeline and ventilation system, hydraulic and pneumatic system, cooling system and heating system, water supply and hot water system, air conditioning system, automation system temperature measurement and control.
