|Probe Type:||Flexible Cable 304 (optional)||Power Supply:||24VDC|
|Medium Temperature:||-40~+500℃||Process Pressure:||-0.1~8.0MPa|
|Explosion-proof Grade:||Exia II CT4||Signal Output:||4...20mA/HART/RS485/Modbus...|
|Typical Application:||Ultra-high Insulation Solids For Split Installation||Process Connection:||1" BSPT Thread (standard) Flange Mount (optional)|
Solids RF Admittance Level Transmitter,
Insulation Admittance Type Level Sensor,
RF Capacitance Level Sensor 24VDC

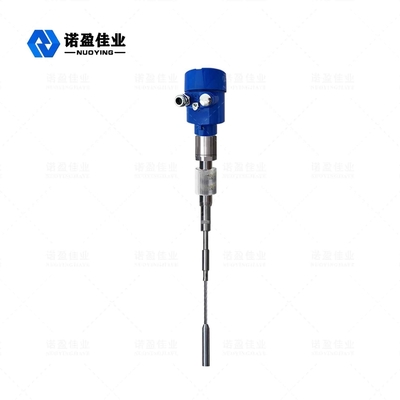

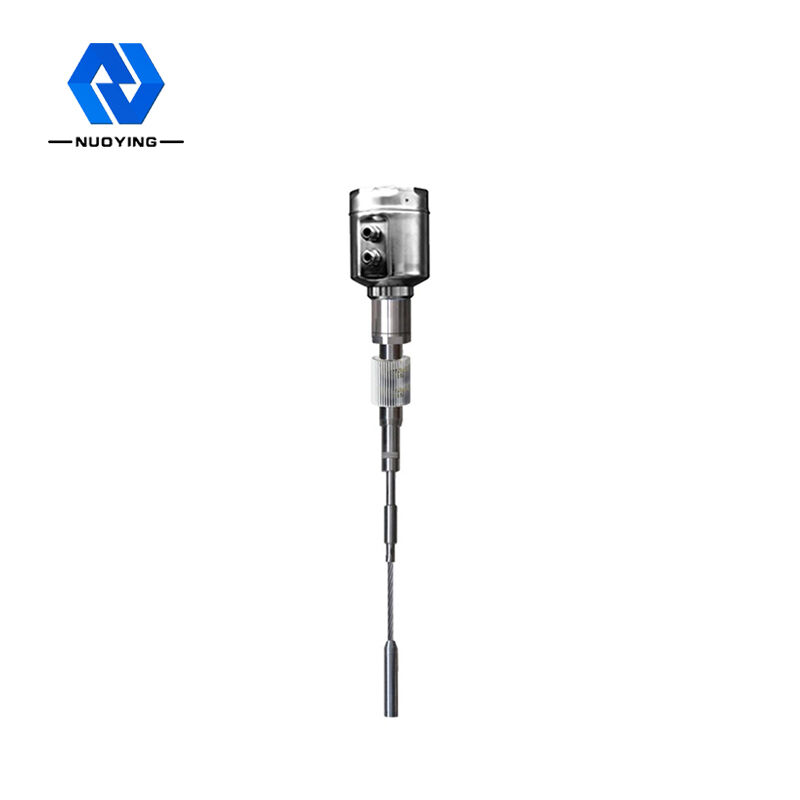

Ultra-High Insulation Solids 24VDC NYSP-Z24 RF Admittance Level Transmitter
NYSP-Z24 RF Admittance Level Transmitter Working Principle
RF conductivity measurement technology is a liquid level measurement technology with unique advantages. Although the concept is similar to the general capacitance measurement technique, the RF conductivity technique incorporates a driver shield circuit and a chopper circuit in the electronic unit, so impedance and capacitance resistance can be measured separately. The impedance and reactance of any hanger are calculated according to the laws of physics and are equal in magnitude, so the effect of the hanger can be measured and removed from the total output by the phase shift of the oscillator circuit.
The probe of the radio frequency conductivity liquid level meter is installed in the storage tank, and the radio frequency signal change caused by the liquid level change is obtained through the probe. The probe's driven shield prevents RF current from looping through the suspended material, ensuring accurate measurements.
NYSP-Z24 RF Admittance Level Transmitter Technical Parameters
Ultra-high insulation solids for split installation

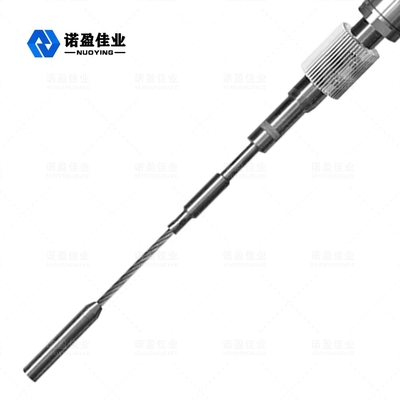

|Probe type||Flexible cable 304 (optional)|
|Process connection||1" BSPT thread (standard) flange mount (optional)|
|Explosion-proof grade||Exia II CT4|
NYSP-Z24 RF Admittance Level Transmitter Design Feature
1. Stability: The output is stable and reliable, and it is resistant to the influence of fly ash, blanking, water vapor, crystallization and waxing.
2. Maintenance-free: no need to move, no wear parts, no need for frequent cleaning, maintenance and debugging.
3. Anti-hanging material: The unique drive shielding circuit design improves the performance of the anti-hanging material.
4. Power supply range: Power supply working range: 13 ~ 35VDC.
NYSP-Z24 RF Admittance Level Transmitter Application Field
1. Chemical: crude oil distillation towers, raw material silos, intermediate silos, reaction tanks, solids silos, separators, etc.
2. Metallurgy: blast furnaces, ore silos, ore crushers, raw material silos, auxiliary material silos, alumina powder silos, etc.
3. Cement: stone silos, raw material silos, cement silos, coal dust silos, slag storage silos, commercial concrete, etc.
4. Paper: raw material silos, storage towers, drying drums, chemical material storage silos, etc.
5. Others: Quarries, coal mines, environmental protection, shipbuilding and other industries.
