Product Details:
|
| Applications: | Ultra-high Insulation Solid | Probe Type: | Soft Rope |
|---|---|---|---|
| Measuring Range: | 0~30m | Process Connection: | Screw Thread, Flange(optional), |
| Protection Grade: | Display Instrument IP67, IP67 | Operating Temperature: | -40～250℃ |
| Signal Output: | 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) | Power Supply: | （13-35）vDC |
| High Light: | Soft Rope RF Admittance Level Sensor,RF Admittance Level Sensor 30m,RF Level Transmitter 30m |
||

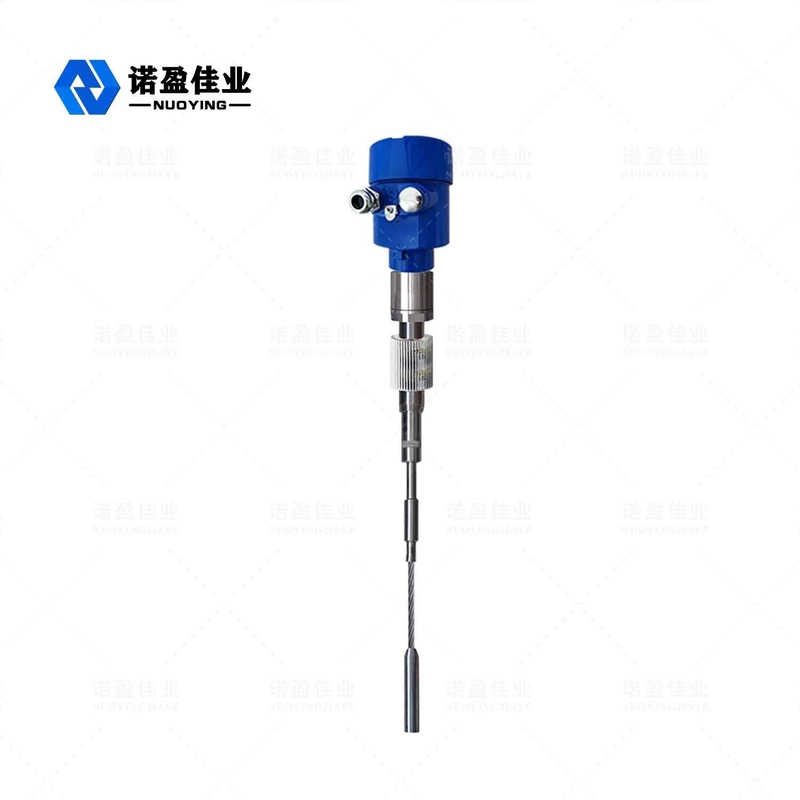

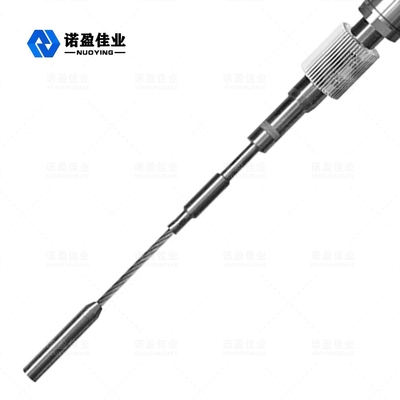

NYSP-Z24 Rf Admittance Level Meter
The NYSP-Z24 Rf admittance level meter is based on the principle of radio frequency admittance level measurement products continuously.The product has high stability, high sensitivity and wide applications, etc.Compared with the traditional capacitive material level meter, the use of modular design, can be concise and easily realize the instrument set, once set, can be normal use and free maintenance for life.Enables users to intuitive understanding of the running status of equipment, and deal with the problems in time, in the complex industrial occasions as well as safe and reliable.
Rf Admittance Level Meter Technical Parameter
| Applications |
Ultra-high insulation solid
|
| Probe type |
Ultra-high insulation solid
|
| Measuring Range | 0~30m |
| Process temperature | -40～250℃ |
| Ambient temperature | -40 ℃ ~ + 70 ℃ |
| Storage temperature | -20 ℃ ~ + 65 ℃ |
| Process pressure | -0.1～1.6MPa |
| Power supply | (13-35)vDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process connection | Thread/Flange(selective) |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6(selective) |
| Delay: | 0 ~ 30 s adjustable |
※ Note: Products can be customized according to the specific requirements of users!
Sensor component installation
The installation position of the sensor element (probe) is usually determined by the opening position of the container, but it should not be installed in the feed stream. When there is no suitable position inside the container, an outer arm or cylinder can be considered for installation.
When installing the side wall of the sensor, the protective electrode should enter the container and pass through the hanging material of the side wall, so please pay attention to the length of the protective electrode when selecting the type.
To ensure the normal and accurate operation of the equipment, please follow the following steps to install:
A. In the case of insulating sensors, the installation must be very careful, because in this case, there is A risk of damaging the insulation of the probe, especially the thin capacitive probe.
B. The sensing element shall not be installed in such a way that the filling nozzle or slot will directly flow into the material. If this is not possible, install a partition between the probe and the fill.
C. Do not disassemble the sensor or loosen the mounting seal cover.
D. Tighten the sensor with the flat part of the wrench.
E. The shield must pass through the tank wall when the probe is installed.
Be careful:
Do not use one-component vulcanized sealants at room temperature for probes or instrument housings, which often contain acetic acid and will corrode circuit elements. A special two-component sealant (non-corrosive) should be used. Consult the manufacturer for the specific two-component sealant.
