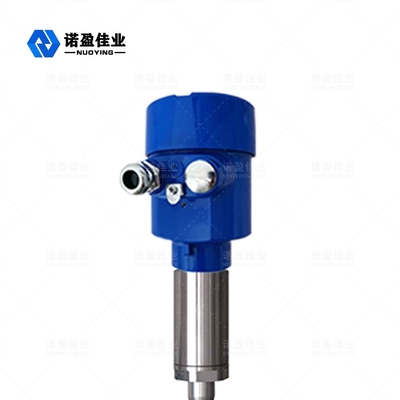

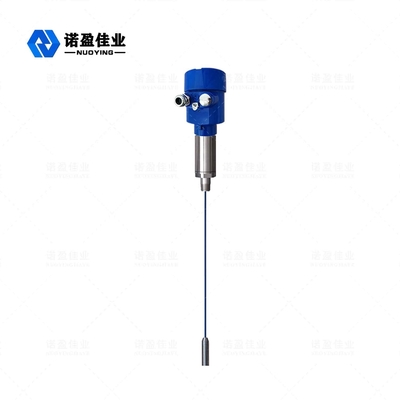

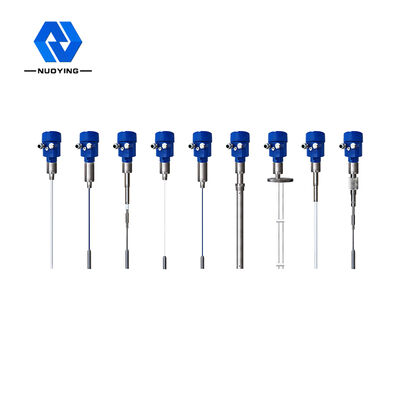

NYSP-Z20 Soft RopeRf Admittance Level Meter Deep Well Oversize Measuring Level Transmitter
NYSP-Z20 Rf Admittance Level Meter
The NYSP-Z20 Rf admittance level meter is based on the principle of radio frequency admittance level measurement products continuously.The product has high stability, high sensitivity and wide applications, etc.Compared with the traditional capacitive material level meter, the use of modular design, can be concise and easily realize the instrument set, once set, can be normal use and free maintenance for life.Enables users to intuitive understanding of the running status of equipment, and deal with the problems in time, in the complex industrial occasions as well as safe and reliable.
Rf Admittance Level Meter Technical Parameter
| Applications | Deep well, oversize range |
| Probe type | Soft rope |
| Measuring Range | 0~120m |
| Process temperature | -40～150℃ |
| Ambient temperature | -40 ℃ ~ + 70 ℃ |
| Storage temperature | -20 ℃ ~ + 65 ℃ |
| Process pressure | -0.1～1.6MPa |
| Power supply | (13-35)vDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process connection | Thread/Flange(selective) |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6(selective) |
| Delay: | 0 ~ 30 s adjustable |
※ Note: Products can be customized according to the specific requirements of users!
Rf Admittance Level Meter Design Features
◎ The unique Driving - shields circuit design can improve the ability to resist hanging
◎ No dead zone measurement, can be applied to more than ten or even a few cm level measurement occasions
◎ The output of the stable and reliable, fly ash, blanking, water vapor, crystallization, wax
◎ No activities, no easy worn parts, often without cleaning and maintenance, debugging
Rf Admittance Level Meter Installation requirements
Installation instructions
(1) the meter probe and other probe should have sufficient space, the proposal is more than 600mm, see "1" and "2", "2" and "3" in the picture.
(2) there should be sufficient space between the instrument probe and feeding port, and the proposal is greater than 600mm, as shown in fig.1.Otherwise, the instrument will not work properly.
See "4" in the picture.
(3) the probe cannot reach the bottom of the tank.See the "4" probe too long.It must be cut short.Otherwise, the instrument will not work properly.
(4) the lower end of the probe cannot enter the cone range of the cone outlet.See "5" in the figure, such installation, the tension capacity of the material in this place
Easy to damage the probe or damage the roof.
(5) make sure that there is sufficient distance between the materials that are attached to the silos and silos, and the proposal is more than 600mm, as shown in fig.2.It's too close to the wall, detective
The slightest oscillation of the head will contact the material on the wall or the wall, causing the instrument to not work properly, as shown in FIG. 6.
(6) see "6)" in the picture, the side installation, also called the fishing rod type installation, do not recommend such installation.
FIG. 4 details of the bottom of the tank are as follows:
The probe in figure A must be straightened to prevent hitting the wall.
The probe in figure B is too long and must be truncated.Short-time contact manufacturer.
